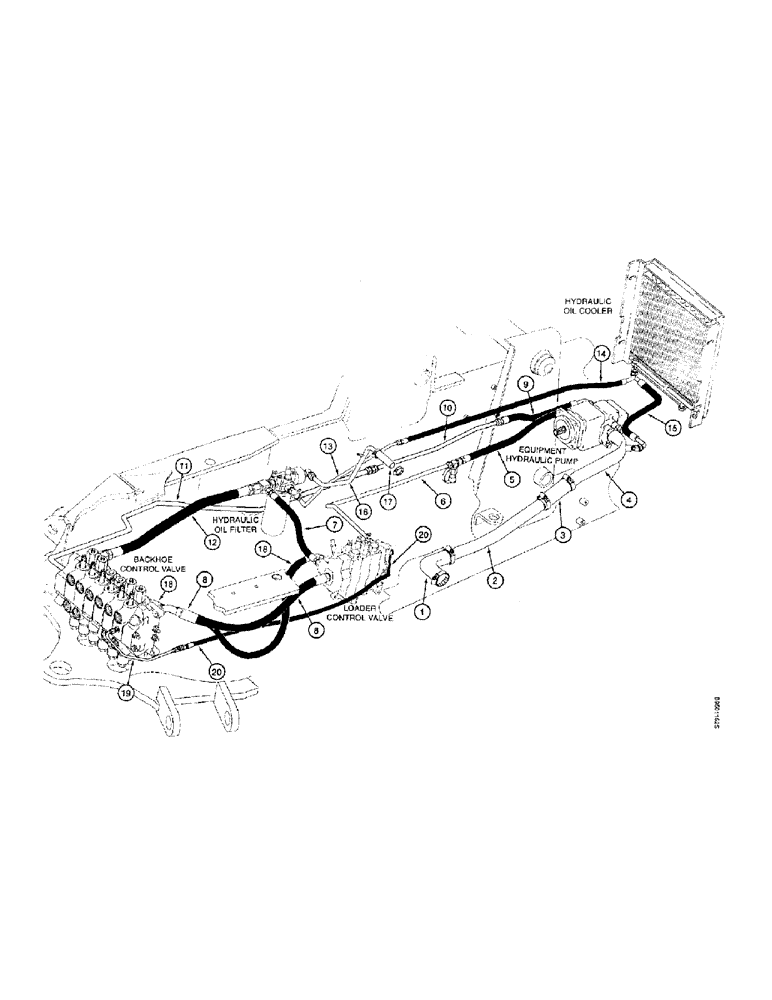

Запчасти Case 590L (1-12) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, HYD. PUMP TO OIL FILTER, CONTROL VALVES, AND RETURN TO TANK (00) - PICTORIAL INDEX

1

Suction hose at hydraulic tank, Figure 8-2

1шт.

2

Suction tube at hydarulic tank, Figure 8-2

1шт.

3

Coupler hose, Figure 8-2

1шт.

4

Suction tube at hydraulic equipment pump, Figure 8-2

1шт.

5

Hose at large pump section pump, Figure 8-2

1шт.

6

Tube at tee to loader control valve inlet, Figure 8-2

1шт.

7

Loader valve to filter hose, Figure 8-4

1шт.

8

Hose at loader valve power beyond port to backhoe control valve inlet, Figure 8-6

1шт.

9

Hose at small pump section outlet port, Figure 8-6

1шт.

10

Tube between small pump section host to tube at backhoe valve outlet section, Figure 8-6

1шт.

11

Tube at inlet port on backhoe control valve outlet section, Figure 8-6

1шт.

12

Return hose at backhoe control valve to filter, Figure 8-8

1шт.

13

Oil filter to oil cooler tube, Figure 8-8

1шт.

14

Hose at oil cooler, Figure 8-8

1шт.

15

Oil cooler return hose, Figure 8-8

1шт.

16

Return to tank tube, Figure 8-8

1шт.

17

Return to tank hose, Figure 8-8

1шт.

18

Swing supply hose at loader valve inlet section lower port to backhoe valve swing section, Figure 8-38

1шт.

See Figures 8-40 through 8-43A for loader valve to backhoe valve tubes and hoses used on models with extendable dipper.

1шт.

19

Pilot tube at backhoe valve swing section center port to loader control valve inlet section, Figure 8-38

1шт.

See Figures 8-40 through 8-43A for loader valve to backhoe valve tubes and hoses used on models with extendable dipper.

1шт.

20

Signal hose at backhoe control valve swing section to loader control valve inlet section, Figure 8-38

1шт.

See Figures 8-40 through 8-43A for loader valve to backhoe valve tubes and hoses used on models with extendable dipper.

1шт.
