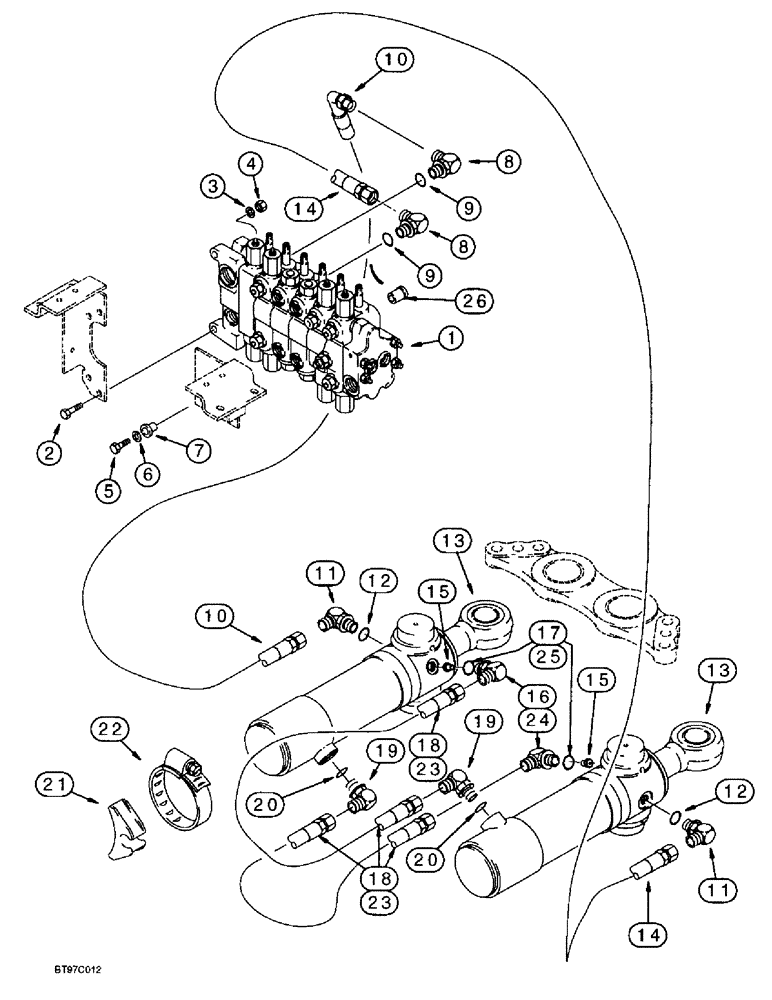

Запчасти Case 590L (8-022) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figure 8-100 - 8-108

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

- hex, 12 - 1.75 x 45 mm

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

6

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, 25/64 x 1-1/4 x 7/64 inch, hardened

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

1шт.

8

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj. O-ring boss, swing section upper and lower ports, Includes: Ref. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

10

196278A1

HOSE ASSY.,12.7mm ID x 700mm L

HOSE - 700 mm (27-9/16 inch) long, includes hose guard, swing section upper port to outer rod end of left-hand swing cylinder

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, outer rod end of swing cylinders, Includes: Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

REF

INSTRUCTION

CYLINDER ASSEMBLY - 102 (4) ID x 292 mm (11-1/2 inch) stroke, swing, parts list Figure 8-154 or 8-156

2шт.

14

183243A1

HOSE,12.7mm ID x 1400mm L

- 1400 mm (55-1/8 inch) long, right-hand swing cylinder outer rod end to swing section lower port

1шт.

15

124690A1

RESTRICTOR

- check, 1/2 inch tube

2шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Used with Ref. 18 hose, If used, Incl. Ref. 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

196277A1

HOSE ASSY.

HOSE - 815 mm (32-3/32 inch) long, 3/8 inch ID, includes hose guard, crossover, priority swing, no longer available, order 255659A1 hose and 218-5106 elbow, Ref 23 and 24

2шт.

19

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj. O-ring boss, Includes: Ref. 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

D142787

SPACER

INSULATOR - rubber

2шт.

22

214-1488

HOSE CLAMP,130.05mm - 152.4mm

CLAMP, HOSE, , Adj. #88, 5.12/6.00 Type F Worm

2шт.

23

255659A1

HOSE,12.7mm ID x 815mm L

- 815 mm (32-3/32 inch) long, 1/2 inch ID, includes hose guard, crossover, non-priority swing

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, used with Ref. 23 hose, Includes: Ref. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

182222A1

FITTING

RESTRICTOR - check, 4.36 mm orifice, upper and lower ports, models with non-priority swing, if used

2шт.
