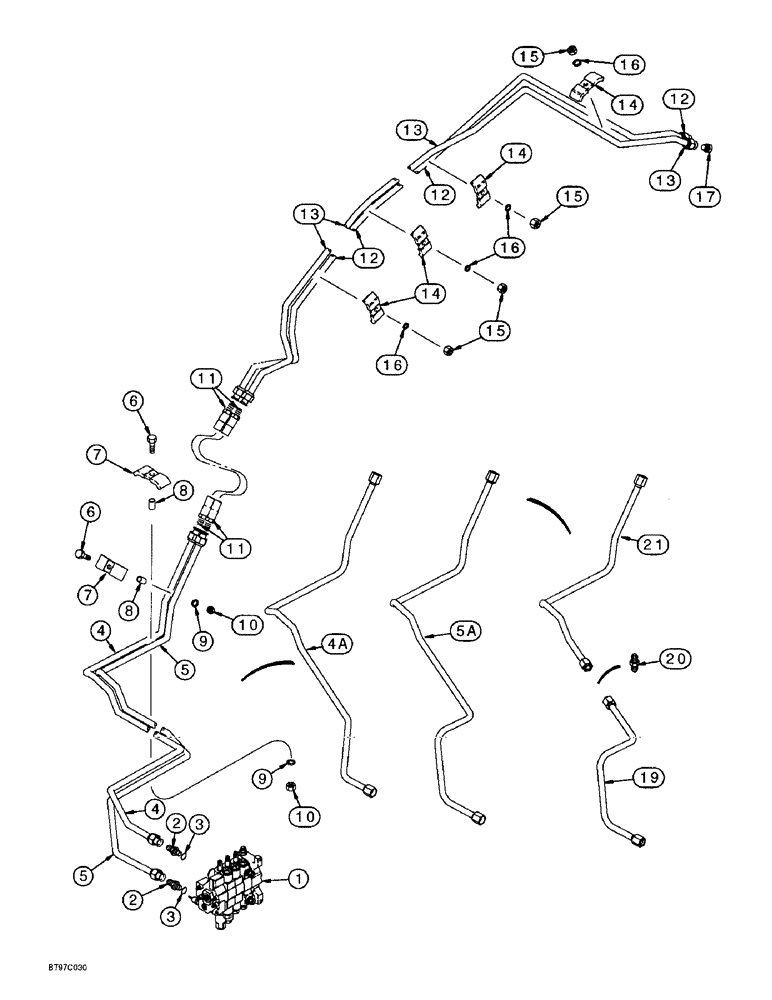

Запчасти Case 590L (8-016) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, three-spool, for correct assembly and components, see Figure 8-86, for mounting hardware see Figure 9-2

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

192122A1

TUBE

- upper port loader valve clam section to hose at loader arm pivot (for service order 190019A1 hose), prior to tractor P.I.N. JJG0209872

1шт.

When replacing tube with a service hose, discard mating hose, Ref. 11. The service hose replaces the tube and hose combination.

1шт.

4a

225326A1

TUBE

- upper port loader valve clam section to hose at loader arm pivot (services itself), tractor P.I.N. JJG0209872 and after

1шт.

5

192124A1

TUBE

- lower port loader valve clam section to hose at loader arm pivot (for service order 190019A1 hose), prior to tractor P.I.N. JJG0209872

1шт.

When replacing tube with a service hose, discard mating hose, Ref. 11. The service hose replaces the tube and hose combination.

1шт.

5a

225328A1

TUBE

- lower port loader valve clam section to hose at loader arm pivot, used in production (for service order 232945A1 and 232947A1 tubes and 218-435 connector, Ref 19-21), tractor P.I.N. JJG0209872 and after

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, mm

2шт.

7

D138055

CLAMP

- tube

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- tube

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

138467A1

HOSE,12.7mm ID x 680mm L

- 680 mm (26-3/4 inch) long, at loader arm pivot

2шт.

12

196824A1

TUBE

- lower, on loader lift frame, port A

1шт.

13

196821A1

TUBE

- upper, on loader lift frame, port B

1шт.

14

D138055

CLAMP

- tube

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

17

218-776

PLUG,7/8"-14, 37 Degree

- hex, 7/8-14 inch flare, not used on models with clam bucket, if used

2шт.

19

232945A1

TUBE

- lower port at loader valve, if used

1шт.

20

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, large hex, 7/8-14 inch flare, if used

1шт.

21

232947A1

TUBE

- lower port at loader valve, if used

1шт.

190019A1

HOSE

- 2380 mm (93-11/16 inch) long

1шт.
