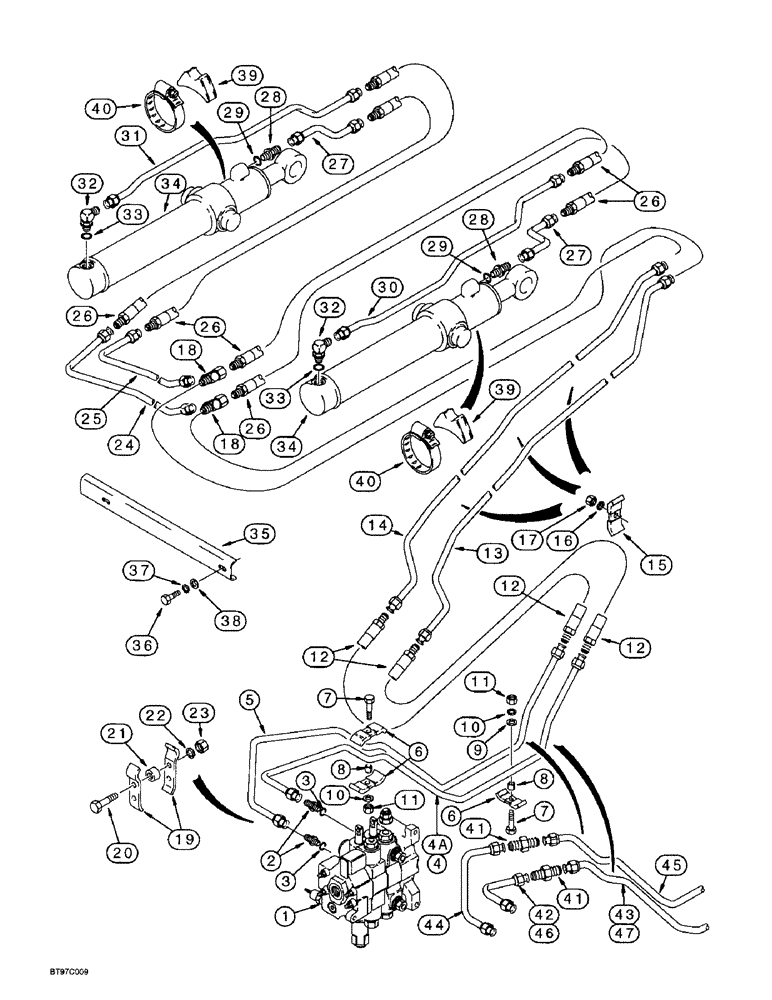

Запчасти Case 590L (8-012) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see Figure 8-84 or 8-86, for mounting see Figure 9-2

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring bossTUBE - lower lift port to left-hand loader lift cylinder closed end, used in production (for service order 232939A1 and 232941A1 tubes and 218-435 connector, Ref 22, 30 and 31), tractor P.I.N. JJG020987

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

220174A1

TUBE

- bucket section upper port, used in production, replaces 192138A1 production tube (for service order 221139A1 and 221141A1 tubes and 218-435 connector, Ref 41-43 , prior to tractor P.I.N. JJG0209872

1шт.

4a

232447A1

TUBE

- bucket section upper port, used in production (for service order 232934A1 and 232936A1 tubes and 218-435 connector, Ref 41, 46 and 47 , tractor P.I.N. JJG0209872 and after

1шт.

5

220169A1

TUBE

- bucket section lower port, used in production, replaces 192136A1 production tube (for service order 221143A1 and 221146A1 tubes and 218-435 connector, Ref 41, 44 and 45

1шт.

6

D138055

CLAMP

- tube

3шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- tube

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

138467A1

HOSE,12.7mm ID x 680mm L

- 680 mm (26-3/4 inch) long, at loader arm pivot

2шт.

13

196817A1

TUBE

- lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cylinders

1шт.

14

196819A1

TUBE

- upper, on right-hand lift arm, from bucket section lower port to bucket cylinder rod end

1шт.

15

D138055

CLAMP

- tube

3шт.

16

892-11010

LOCK WASHER,M10

3шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

18

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel, at upper lift frame crossover tube

2шт.

19

221733A1

SHIN

CLAMP - tube, attaches to item 5 tube above and Ref. 27 tube on Figure 8-2

2шт.

20

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

2шт.

21

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

- tube

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

24

196815A1

TUBE

HOSE, FLEXIBLE (Tube), Crossover, Rear, Upper lift frame tube to rod end of bucket cylinder

1шт.

25

196813A1

TUBE

HOSE, FLEXIBLE (Tube), Crossover, Front, Lower lift frame tube to bucket cylinder closed end

1шт.

26

136226A1

HOSE

- 840 mm (33 inch) long, at bucket cylinders

4шт.

27

192152A1

HYD TUBE,15.88 mm OD

TUBE - bucket cylinder rod end

2шт.

28

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

192156A1

TUBE,15.88 mm OD

- right-hand bucket cylinder closed end

1шт.

31

192154A1

HYD TUBE,15.88 mm OD

TUBE - left-hand bucket cylinder closed end

1шт.

32

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj. O-ring boss, Incl. Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

113133A2

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 522.3mm Stroke

CYLINDER ASSEMBLY - 76 (3) ID x 522 mm (20-9/16 inch) stroke, loader bucket, parts list Figure 8-148

2шт.

34

113133A2R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

34

113133A2C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

35

250648A1

PROTECTOR

GUARD - crossover tube, 3 mm thick, replaces 132724A1, 4 mm thick guard

1шт.

36

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.

39

L79937

SADDLE

SPACER - rubber, tube

2шт.

40

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

41

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR - straight, large hex, 7/8-14 inch flare

1-2шт.

42

221139A1

TUBE

- bucket section upper port at valve, prior to tractor P.I.N. JJG0209872

1шт.

43

221141A1

TUBE

- bucket section upper port tube to hose, prior to tractor P.I.N. JJG0209872

1шт.

44

221143A1

TUBE

- bucket section lower port at valve

1шт.

45

221146A1

TUBE

- bucket section lower port, Serial Range: tube-hose

1шт.

46

232934A1

TUBE,15.88 mm OD

- bucket section upper port at valve, tractor P.I.N. JJG0209872 and after

1шт.

47

232936A1

TUBE

- bucket section upper port tube to hose, tractor P.I.N. JJG0209872 and after

1шт.
