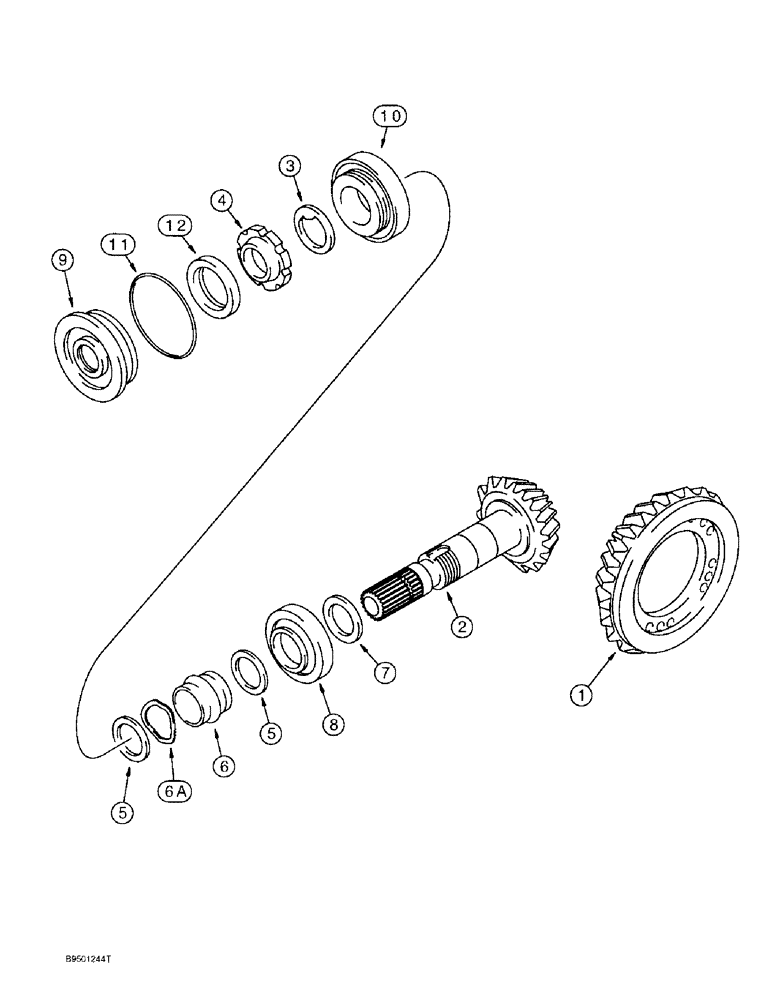

Запчасти Case 590L (6-56) - REAR DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
127599A2
AXLE
ASSEMBLY - rear drive, Carraro No. 132885, parts list Figures 6-52 - 6-60, 7-2 and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 12
1шт.
127599A3
AXLE, REAR
AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 12
1шт.
127599A5
AXLE, REAR
AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, Includes: Ref. 1 - 12
1шт.
196068A1
GEAR
- set, ring and pinion, Includes: Ref. 1 - 6A
1шт.
1
NSS
NOT SOLD SEPARAT
GEAR - ring, differential
1шт.
2
NSS
NOT SOLD SEPARAT
GEAR - pinion, differential
1шт.
3
E135827
WASHER
- special
1шт.
4
E135765
RING NUT
NUT - ring, pinion gear
1шт.
5
P2745478
WASHER
- spacer
2шт.
6
P3428532
SPACER
- collapsible
1шт.
6a
D150105
WASHER
- collapsible
1шт.
7
190506A1
SHIM,2.5mm Thk
(0.098") 2.5mm Thk
1шт.
7
190508A1
SHIM,2.6mm Thk
(0.102") 2.6mm Thk
1шт.
7
190509A1
SHIM,2.7mm Thk
(0.106") 2.7mm Thk
1шт.
7
190510A1
SHIM,2.8mm Thk
(0.110") 2.8mm Thk
1шт.
7
190511A1
SHIM,2.9mm Thk
(0.114") 2.9mm Thk
1шт.
7
190512A1
SHIM,3.0mm Thk
(0.118") 3.0mm Thk
1шт.
7
190513A1
SHIM,3.1mm Thk
(0.122") 3.1mm Thk
1шт.
7
190514A1
SHIM,3.2mm Thk
(0.125") 3.2mm Thk
1шт.
7
190515A1
SHIM,3.3mm Thk
(0.129") 3.3mm Thk
1шт.
7
190516A1
SHIM,3.4mm Thk
(0.133") 3.4mm Thk
1шт.
9
196069A1
COVER
- differential
1шт.
10
TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W
- 45 x 100 mm, pinion gear, stamped with SKF 31309-Q-CL7A
1шт.
11
238-5154
O-RING,0.103" Thk x 3.737" ID, -154, Cl 5, 75 Duro
Cover -154, 70 Duro, 3.737" ID x .103" Thk
1шт.
