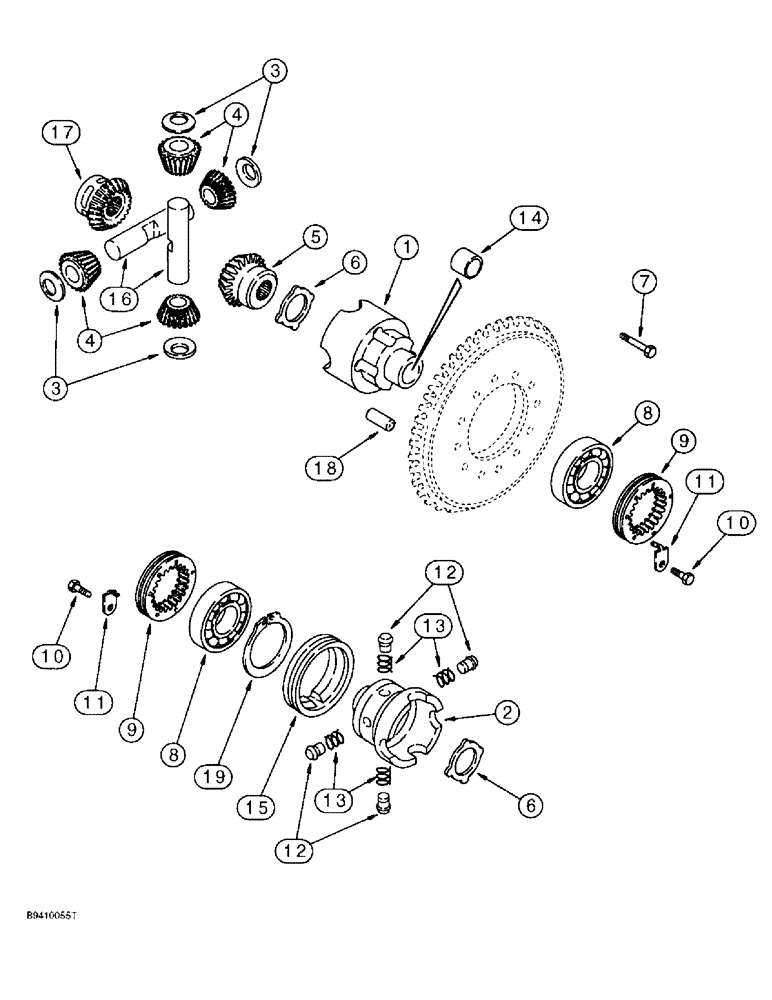

Запчасти Case 590L (6-54) - REAR DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

127599A2

AXLE

ASSEMBLY - rear drive, Carraro No. 132885, parts list Figures 6-52 - 6-60, 7-2 and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 19

1шт.

127599A3

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 19

1шт.

127599A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, Includes: Ref. 1 - 19

1шт.

196070A1

HOUSING

ASSEMBLY - differential, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - differential, plain half

1шт.

3

E135777

WASHER

- thrust

4шт.

Part of Gear Set, P/N 231395A1

1шт.

4

190471A1

PINION

GEAR - sun, 12 teeth, no longer sold separately, must be replaced as a set, for service order 231395A1 gear set, see below

4шт.

Part of Gear Set, P/N 231395A1

1шт.

5

E135780

GEAR WHEEL

GEAR - side, pinion, no longer sold separately, must be replaced as a set, for service order 231395A1 gear set, see below

1шт.

Part of Gear Set, P/N 231395A1

1шт.

6

190469A1

THRUST WASHER

WASHER - thrust

2шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

BOLT - hex, special, 12 - 1.75 x 90 mm, class 12.9

10шт.

8

E135785

BEARING

- cup and cone

2шт.

9

P3034505

NUT

RING - locking, threaded

2шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT - hex, self-locking, special, 6 - 1 x 12 mm

2шт.

11

175959A1

BRACKET

- lock

2шт.

12

1967557C1

PIN

- detent

4шт.

13

1967558C1

SPRING

- detent

4шт.

14

1966875C1

BUSHING

- differential housing

2шт.

15

191067A1

SLEEVE

- housing

1шт.

16

190468A1

SHAFT

- sun gear, no longer sold separately, must be replaced as a set, for service order 231395A1 gear set, see below

2шт.

Part of Gear Set, P/N 231395A1

1шт.

17

196071A1

PINION

GEAR - side pinion, no longer sold separately, must be replaced as a set, for service order 231395A1 gear set, see below

1шт.

Part of Gear Set, P/N 231395A1

1шт.

18

D143033

DOWEL

PIN - dowel, 12 x 40 mm

1шт.

19

175961A1

RING, LOCKING

RING - lock

1шт.

231395A1

SET OF PARTS

SET - gear, differential, service replacement, includes Ref. 3-5, 16 and 17

1шт.
