Запчасти Case 590L (6-52) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

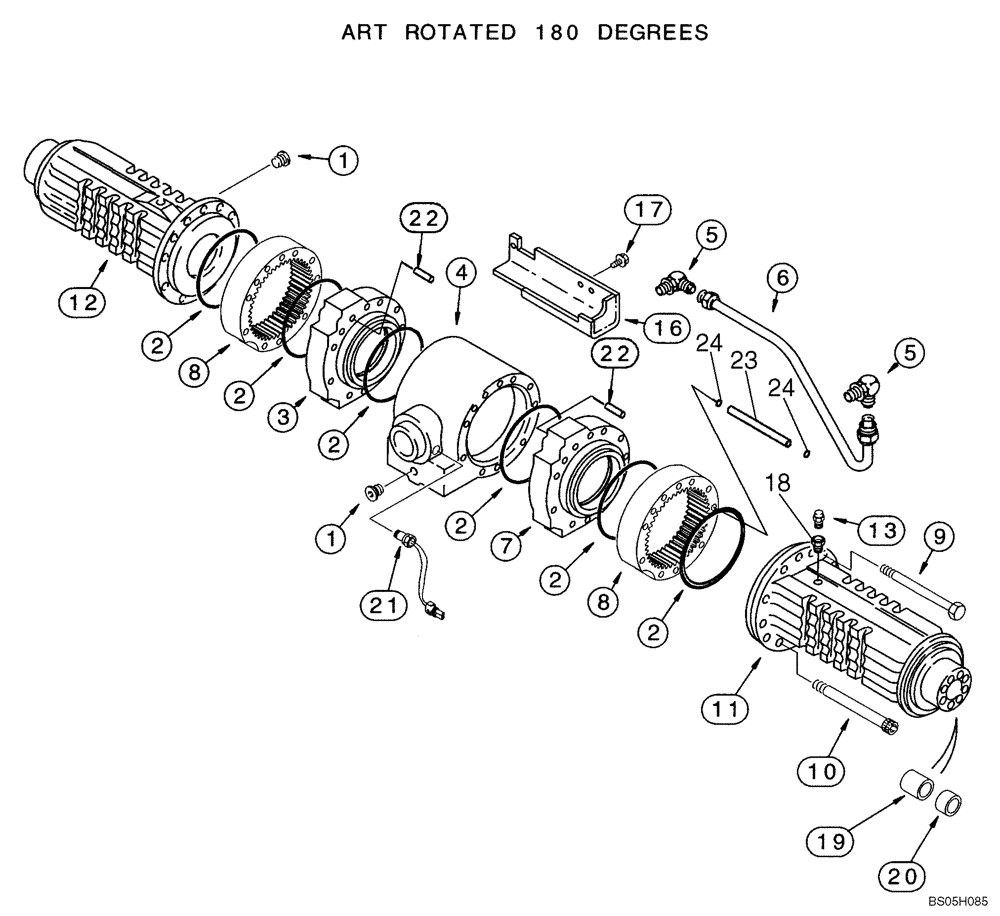

Схема запчастей Case 590L - (6-52) - REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN
11
2
12
5
20
6
2
1
3
2
23
7
17
16
18
8
10
13
21
1
5
2
9
4
22
2
19
8
24
2
22
24

Артикул

Название

Примечание

Количество

127599A2

AXLE

ASSEMBLY - rear drive, Carraro No. 132885, parts list Figures 6-52 - 6-60, 7-2 and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 21

1шт.

127599A3

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5, Includes: Ref. 1 - 21

1шт.

127599A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, Includes: Ref. 1 - 21

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain; Includes 238-6121 O-Ring

2шт.

Uses 238-6121 "O" ring

1шт.

2

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

6шт.

3

196055A2

CYLINDER

Brake, right-hand; Replaces 196055A1; No Longer Available, Order 315553A1 Kit

1шт.

315553A1

SET OF PARTS

Kit, Right-Hand Brake; With Cross Drilled Hole; Includes (1) 196055A2 Cylinder, (1) D142898 M10 x 1 Plug, Ref 3, 22

1шт.

4

196056A1

HOUSING

Center; Prior to Axle S/N 1953; Used With 196061A1 & 196062A1 Trumphet Housings, Ref 11, 12

1шт.

4

284630A1

HOUSING

Center; Axle S/N 1953 & After; Used With 295578A1 & 295577A1 Trumphet Housings, Ref 11, 12

1шт.

5

115229A1

ELBOW

- 90 degree, special; If Used

2шт.

6

196057A1

TUBE

- axle; If Used

1шт.

7

196059A2

CYLINDER

Brake, left-hand; Replaces 196059A1; No Longer Available, Order 315554A1 Kit

1шт.

315554A1

SET OF PARTS

Kit, Left-Hand Brake; With Cross Drilled Hole; Includes (1) 196059A2 Cylinder, (1) D142898 M10 x 1 Plug, Ref 7, 22

1шт.

8

196060A1

FLANGE

SLEEVE - gear housing

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

4шт.

11

196061A1

HOUSING

Left-hand side; Prior to Axle S/N 1953; Used With E135757 Hub Ring Gear Which Uses (2) 24 mm OD and (14) 20 mm OD Bushings, Ref 6, 7 on Fig 6-60

1шт.

11

295577A1

HOUSING

- Axle, S/N 1953 & After; Used with 295579A1 Hub Ring Gear Which Uses (16) 20 mm OD Bushings, Ref 6, 7, Fig 6-60, With Breather Hole

1шт.

12

196062A1

HOUSING

Right-hand side; Prior to Axle S/N 1953; Used With E135757 Hub Ring Gear Which Uses (2) 24 mm OD and (14) 20 mm OD Bushings, Ref 6, 7 on Fig 6-60

1шт.

12

295578A1

HOUSING

- Axle, S/N 1953 & After; Used with 295579A1 Hub Ring Gear Which Uses (16) 20 mm OD Bushings, Ref 6, 7, Fig 6-60, Without Breather Hole

1шт.

13

1966149C1

BREATHER

- axle housing

1шт.

16

196064A1

PROTECTOR

BRACKET - center axle housing; If Used

1шт.

17

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

Replaces 190446A1 bolt, if used

2шт.

17

30237R1

BOLT,Hex, M18 x 2.5 x 40mm, Class 8.8

- special

2шт.

18

E135750

AXLE PIN

EXTENSION - breather

1шт.

19

196065A1

BUSHING

- axle housing

2шт.

20

196066A1

OIL SEAL

SEAL - oil, axle housing

2шт.

This seal should be installed until the seal contacts the edge inside the axle housing where the bore size is decreased. This depth is between 3/4" and 1".

1шт.

21

192481A1

SENSOR

SWITCH - oil temperature, may have one or two wires

1шт.

22

D142898

PLUG,M10 x 1

Sealing, Hole

2шт.

23

222688A1

TUBE

1шт.

24

100760A1

O-RING

2шт.

Выбрано товаров: 33
