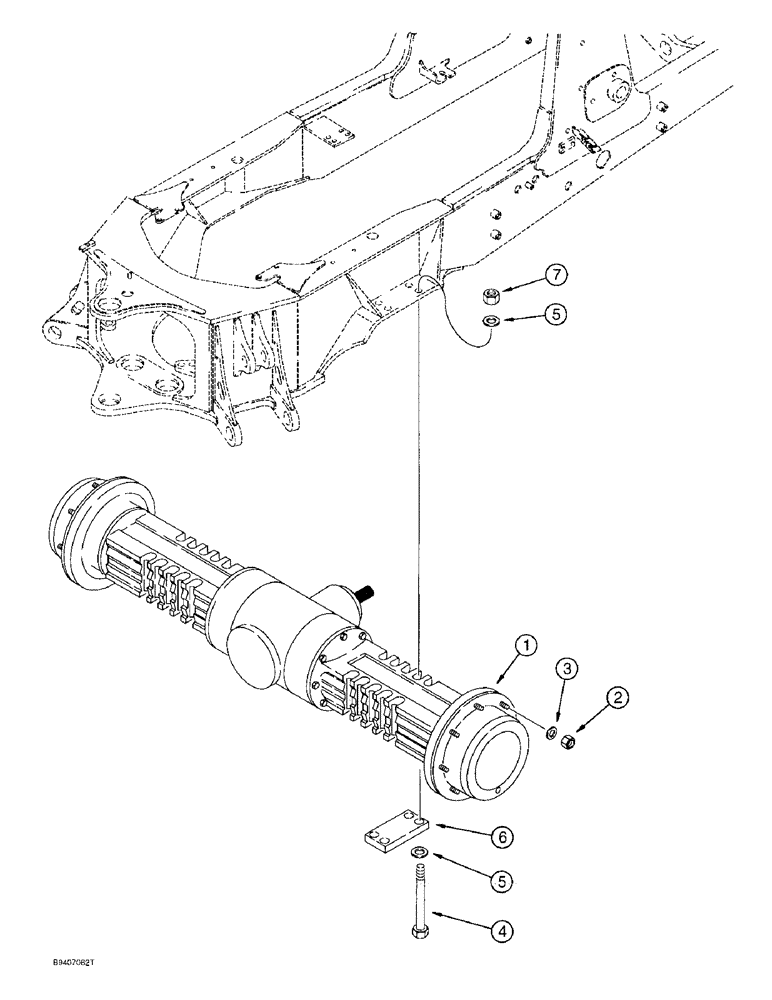

Запчасти Case 590L (6-48) - REAR DRIVE AXLE MOUNTING (06) - POWER TRAIN

1

127599A2

AXLE

ASSEMBLY - rear drive, Carraro No. 132885, parts list Figures 6-52 - 6-60, 7-2 and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5

1шт.

127599A3

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-4, also includes 187562A2 bracket, Ref. 18 on Figure 6-50, no longer available, order 127599A5

1шт.

127599A5

AXLE, REAR

AXLE ASSEMBLY - rear drive, parts list Figures 6-52 - 6-60, 7-3A and 7-5A, also includes 187562A2 bracket, Ref. 18 on Figure 6-50

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

- hex, special, 22 mm - 1.5

20шт.

3

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

- flat, hardened, special

20шт.

4

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

- hex, 20 - 2.5 x 230 mm, class 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

16шт.

6

117933A1

LARGE PLATE

PLATE - axle mounting

2шт.

7

829-1420

NUT,M20, Cl 10

8шт.
