Запчасти Case 590L (6-40) - TRANSMISSION ASSEMBLY, FOUR-WHEEL DRIVE OUTPUT SHAFT (06) - POWER TRAIN

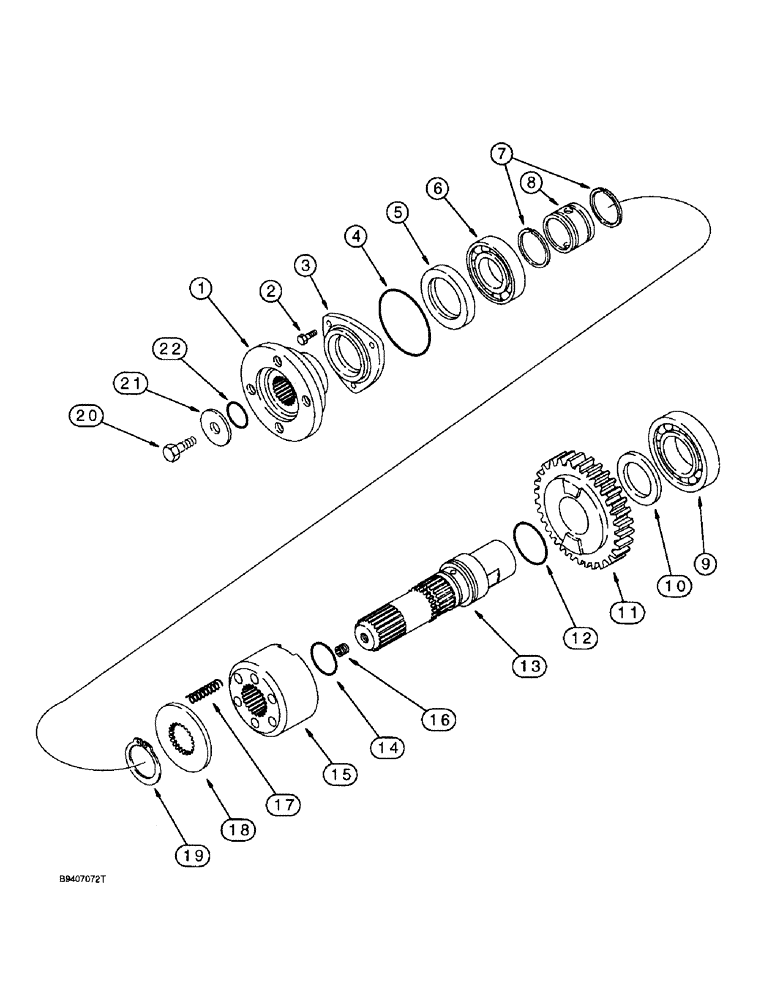

Схема запчастей Case 590L - (6-40) - TRANSMISSION ASSEMBLY, FOUR-WHEEL DRIVE OUTPUT SHAFT (06) - POWER TRAIN
1
12
10
3
18
21
9
19
17
16
8
22
6
2
7
20
11
15
13
14
4
5

Артикул

Название

Примечание

Количество

123843A1

TRANSMISSION

ASSEMBLY - four wheel drive, parts list Figures 6-24 and 6-28 - 6-44, Includes: Ref. 1 - 22

1шт.

See Figure 6-24 for remanufactured transmission part numbers.

1шт.

1

181230A1

FLANGE

- shaft

1шт.

2

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 22 mm

3шт.

3

181198A1

COVER

- front

1шт.

4

112517A1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

- cover

1шт.

Part of Seal Kit, part number 278836A1

1шт.

5

181122A1

OIL SEAL,50mm ID x 65mm OD x 8mm Thk

SEAL - oil, 50 x 65 x 8 mm

1шт.

Part of Seal Kit, part number 278836A1

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball

1шт.

7

181152A2

SEALING RING

SEAL - oil, replaces 181152A1

2шт.

Part of Seal Kit, part number 278836A1

1шт.

8

181194A1

BUSHING

- grooved

1шт.

9

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball

1шт.

10

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER - thrust, 65 x 45 mm

1шт.

Part of Seal Kit, part number 278836A1

1шт.

If replacing Ref. 11, 13 and 15 with new gear 369471A1, shaft 369470A1 and new sleeve 369472A1, you no longer need Ref. 10 thrust washer. Do not reinstall it.

1шт.

11

181223A1

PINION

GEAR - driven, MFD, 36 teeth

1шт.

If replacing Ref. 11, 13 and 15 with new gear 369471A1, shaft 369470A1 and new sleeve 369472A1, you no longer need Ref. 10 thrust washer. Do not reinstall it.

1шт.

12

100747A1

O-RING

- shaft, large

1шт.

Part of Seal Kit, part number 278836A1

1шт.

13

181182A1

SHAFT

- output

1шт.

If replacing Ref. 11, 13 and 15 with new gear 369471A1, shaft 369470A1 and new sleeve 369472A1, you no longer need Ref. 10 thrust washer. Do not reinstall it.

1шт.

14

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

- shaft, small

2шт.

Part of Seal Kit, part number 278836A1

1шт.

15

181248A1

SLEEVE

- shaft

1шт.

Ref. 15 has four notches in it, not the two as illustrated.

1шт.

If replacing Ref. 11, 13 and 15 with new gear 369471A1, shaft 369470A1 and new sleeve 369472A1, you no longer need Ref. 10 thrust washer. Do not reinstall it.

1шт.

16

D142898

PLUG,M10 x 1

- shaft, 10 x 1 mm

1шт.

17

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

- sleeve

6шт.

Part of Seal Kit, part number 278836A1

1шт.

18

181276A1

WASHER

- flat, special

1шт.

Part of Seal Kit, part number 278836A1

1шт.

19

181120A1

RING, SNAP

RING - snap

1шт.

Part of Seal Kit, part number 278836A1

1шт.

20

P3533055

SCREW,M12 x 1.25 x 25mm

- locking, special, 12 - 1.25 x 25 mm

1шт.

Part of Seal Kit, part number 278836A1

1шт.

21

P2745466

WASHER

- flat, special

1шт.

Part of Seal Kit, part number 278836A1

1шт.

22

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.

Part of Seal Kit, part number 278836A1

1шт.

278836A1

SET OF PARTS

KIT - seal, transmission overhaul, four wheel drive, includes Ref. 4, 5, 7, 10, 12, 14 and 17 - 22, also see kit parts on Figures 6-24, 6-28 and 6-32 - 6-44

1шт.
