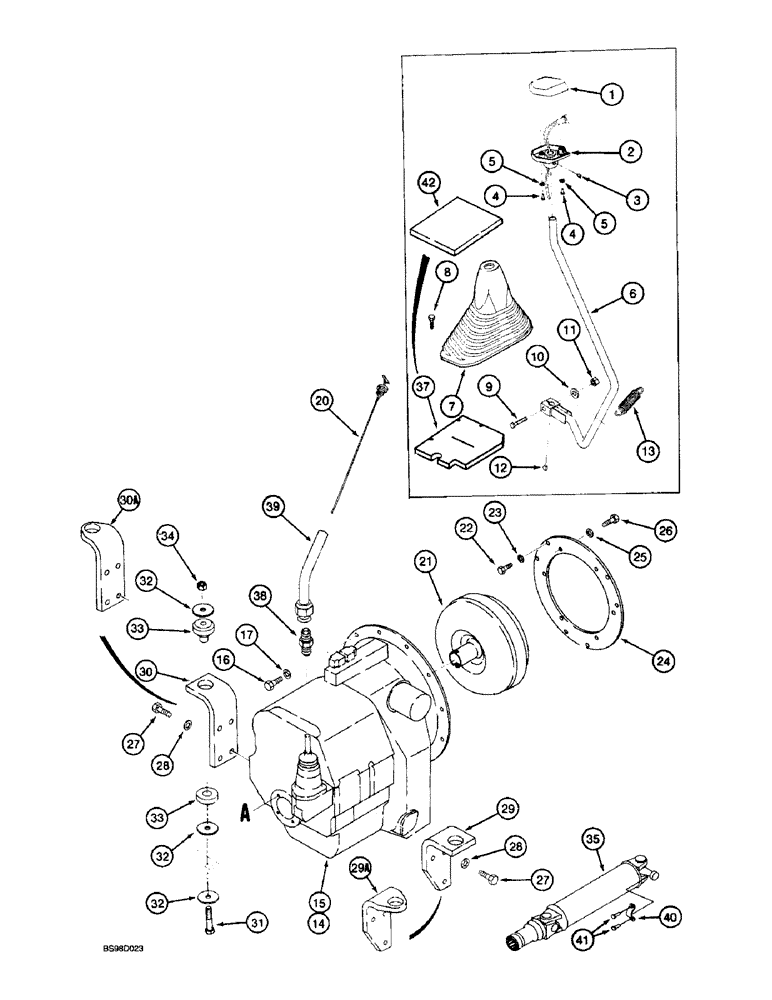

Запчасти Case 580L (6-028) - TRANSMISSION MOUNTING, DRIVE SHAFT, DIPSTICK, AND GEAR SHIFT (06) - POWER TRAIN

1995135C1R

REMAN-TORQUE CONVERT

ER Reman - Torque Converter

1шт.

1995135C1C

CORE-TORQUE CONVERTR

Return Part Number

1шт.

309747A1

KNOB

KNOB ASSEMBLY, transmission gear shift lever, Includes: Ref 1, 2, 4 and 5, Includes P/N 310965A1

1шт.

310965A1

DIVIDER

GASKET paper divider

2шт.

1

187714A1

KNOB

KNOB, Upper, Cover

1шт.

2

187715A1

KNOB

KNOB, Lower

1шт.

3

484-6316

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

SCREW set, hex socket headless, half dog point, 5/16 NF x 3/8 inch

1шт.

4

459-11014

SCREW,Pan HD, #10 - 32 x 7/8"

SCREW machine, pan head slotted, No. 10 NF x 7/8 inch

2шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

6

179689A1

LEVER

LEVER transmission gear shift, see Figure 4-10 for clutch cutout harness and switch

1шт.

7

190618A1

BELLOWS

BOOT transmission gear shift lever

1шт.

8

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW self tapping, hex washer head, No. 10 - 16 x 1 inch

4шт.

9

828-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 55 mm, class 10.9

1шт.

10

495-11053

WASHER,1/2", SAE

WASHER, (17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, M12 x 1.75, Cl 8

1шт.

12

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

WOODRUFF KEY, #9, 3/16" x 3/4", HT

1шт.

13

143370A1

SPRING

SPRING return, shift lever

1шт.

14

329076A1

TRANSMISSION

TRANSMISSION ASSEMBLY, two wheel drive, 580L models, parts list Figure 6-60 thru 6-82, Replaces: 123842A2 and 123842A3 on Figure 6-32

1шт.

14

329076A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

14

329076A3C

CORE-TRANSMISSION

Return Part Number

1шт.

14

329081A1

TRANSMISSION

TRANSMISSION ASSEMBLY, two wheel drive, 570LXT models, parts list Figure 6-60 thru 6-82, Replaces: 130786A2 and 130786A3 on Figure 6-32

1шт.

14

329081A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

14

329081A3C

CORE-TRANSMISSION

Return Part Number

1шт.

15

329079A1

TRANSMISSION

TRANSMISSION ASSEMBLY, four wheel drive, 580L models, parts list Figure 6-60 thru 6-84, Replaces: 123843A2 and 123843A3 on Figure 6-32

1шт.

15

329079A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

15

329079A3C

CORE-TRANSMISSION

Return Part Number

1шт.

15

329082A1

TRANSMISSION

TRANSMISSION ASSEMBLY, four wheel drive, 570LXT models, parts list Figure 6-60 thru 6-84, Replaces: 130787A2 and 130787A3 on Figure 6-32

1шт.

15

329082A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

15

329082A3C

CORE-TRANSMISSION

Return Part Number

1шт.

16

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 35 mm, class 10.9

12шт.

17

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER flat, hardened, 13/32 x 13/16 x 3/32"

12шт.

20

121658A1

DIPSTICK,492mm L

DIPSTICK oil level, transmission

1шт.

21

1995135C1

CONVERTER

CONVERTER torque, new

1шт.

21

1995135C1R

REMAN-TORQUE CONVERT

ER Converter torque, remanufactured component parts not serviced separately

1шт.

21

1995135C1C

CORE-TORQUE CONVERTR

Core-Torque Converter Return Part Number torque converter core, use this part number to return torque converter for credit when using a remanufactured assembly

1шт.

22

428-510

BOLT,Hex, 5/16" - 24 x 5/8", Gr 8

BOLT hex, 5/16 NF x 5/8 inch, grade 8

6шт.

23

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER flat, hardened, special

6шт.

24

A178706

PLATE

PLATE adapter, torque converter to engine flywheel

1шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER flat, hardened, 13/32 x 13/16 x 3/32"

6шт.

26

626-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

BOLT hex, full threads, 10 - 1.5 x 16 mm, class 10.9

6шт.

27

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

BOLT hex, full threads, 12 - 1.75 x 40 mm

7шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

WASHER flat, hardened, 13.5 x 28 x 4 mm

7шт.

29

284641A1

MOUNTING PARTS

BRACKET mounting, transmission, right hand, no longer available, order 284641A2 bracket

1шт.

29a

284641A2

SUPPORT

BRACKET mounting, transmission, right hand

1шт.

30

284723A1

SUPPORT

BRACKET mounting, transmission, left hand, no longer available, order 284723A2 bracket

1шт.

30a

356316A1

MOUNTING PARTS

BRACKET mounting, transmission, left hand, Replaces: 284723A2

1шт.

31

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

BOLT hex, 16 - 2.0 x 110 mm

2шт.

32

CASD35009

WASHER,16.67mm ID x 63.5mm OD

WASHER flat, special, hardened, 5/8 inch

6шт.

33

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

RUBBER BLOCK INSULATOR engine mount, rear

2шт.

34

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, M16 x 2, Cl 8

2шт.

35

284712A1

DRIVE SHAFT

SHAFT ASSEMBLY, drive, transmission to rear axle, parts list Figure 6-114

1шт.

37

298394A1

FOAM INSULATION

SEAL foam, transmission control lever, installed between firewall and flange on four speed shift lever boot, cab models only

1шт.

38

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER straight, 1-5/16-12 flare x 3/4 inch PT

1шт.

39

237948A1

TUBE,25.4 mm OD

TUBE transmission dipstick

1шт.

40

90-6682T1

CLAMP

RETAINER drive shaft, strap

2шт.

41

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

BOLT special

4шт.

42

292514A1

INSULATOR

SEAL foam, noise reduction, cab models

1шт.
