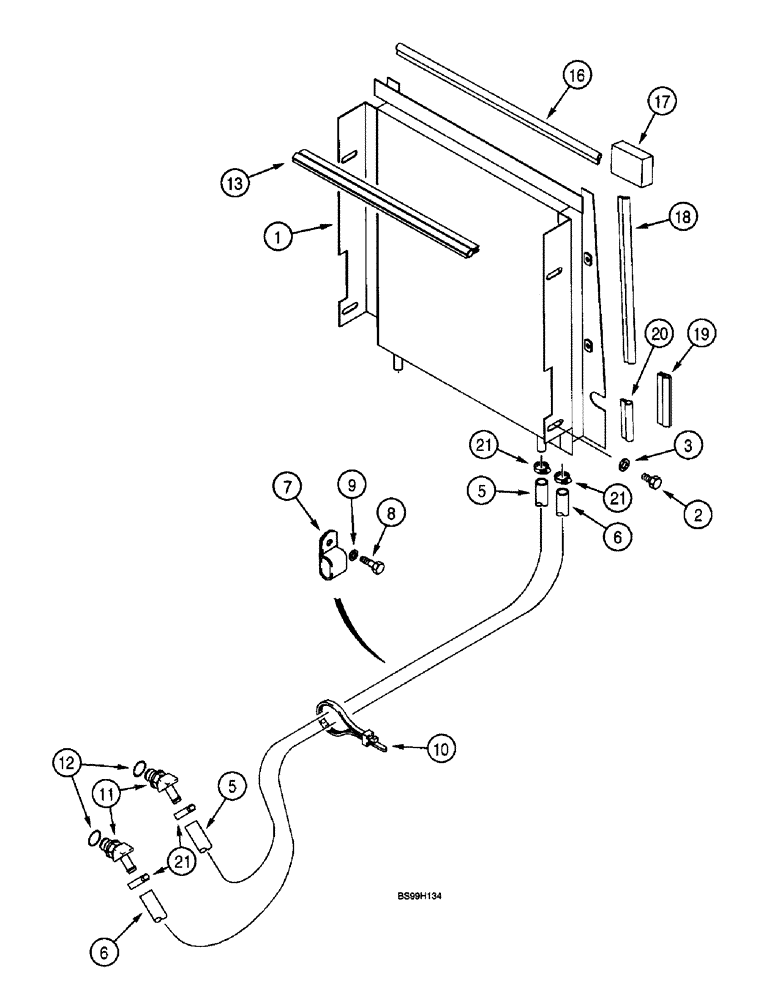

Запчасти Case 580L (6-022) - TRANSMISSION COOLING SYSTEM, MODELS W/O AIR CONDITIONING (W/ CUT HOSES AT COOLER) (06) - POWER TRAIN

1

320877A1

COOLER, OIL

COOLER hydraulic, used with 234876A1 radiator on Figure 2-2 and 301322A1 radiator wrapper, uses radiator upper mounting bolts, see Figure 9-96 for hardware and Figure 8-9B for additional cooler hydraulic routing

1шт.

Part number is stamped on top of oil coolers.

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

319889A2

HOSE

transmission to cooler inlet, 1360 mm, 53-9/16 inch long, Replaces: 319889A1 hose

1шт.

6

319888A2

HOSE

cooler outlet to transmission, 1630 mm, 64-3/16 inch long, Replaces: 319888A1 hose

1шт.

7

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

P-type, double, 1 inch

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

hex, full threads, 12 - 1.75 x 25 mm

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

11

217-314

FITTING,45 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

ELBOW 45°, 5/8 stem end x 7-8/14 inch O-ring boss, Includes: Ref. 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

13

183735A1

OIL SEAL

radiator to oil cooler

1шт.

16

233972A1

SEAL

cooler to wrapper, 564 mm, 22-7/32 inch long

1шт.

17

234719A1

SEAL

SEAL top corner block, 70 x 100 x 32 mm, used with 345-44 adhesive

2шт.

345-44

ADHESIVE

spray can, 3 M No. 74, 23 ounce

1шт.

18

258746A1

SEAL

cooler side, 390 mm, 15-3/8 inch long

2шт.

19

258747A1

SEAL

cooler slot, 132 mm, 5-7/32 inch long

2шт.

20

258748A1

SEAL

cooler side, bottom, 100 mm, 3-15/16 inch long

2шт.

21

328186A1

HOSE CLAMP,400mm L

CLAMP hose

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.
