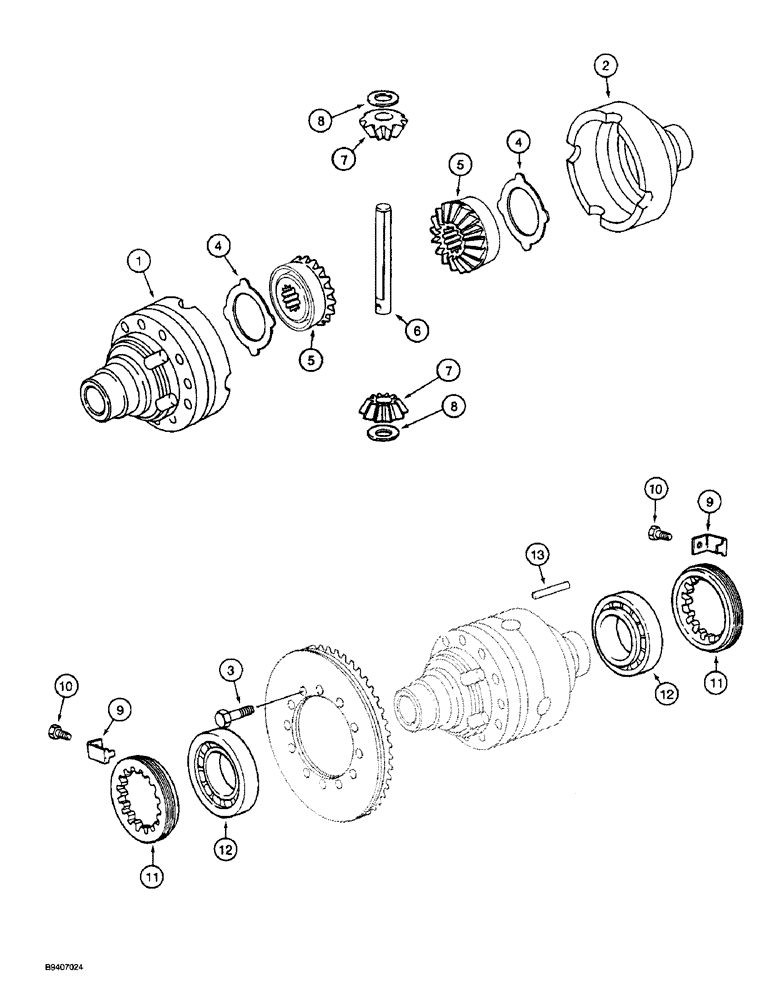

Запчасти Case 580L (6-014) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, see Figure 6-4 thru 6-16, Includes: Ref. 3-13 and P/N 294933A1

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

294933A1

HOUSING

Assy, Differential, Incl. Ref. 1-2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

4

1967003C1

THRUST WASHER

WASHER thrust, differential housing

2шт.

5

231397A1

SERVICE KIT

KIT, SERVICE, Set - Gear, Differential, Service replacement, Incl Ref. 5 - 8 and Ref. 13

1шт.

5

N14407

GEAR

side, differential, no longer available, for service order 231397A1 set

2шт.

Part of gear set 231397A1

1шт.

6

K395087

SHAFT

Pinion gear, No longer available, For service order, 231397A1 set

1шт.

Part of gear set 231397A1

1шт.

7

N14408

SUN GEAR

GEAR pinion, differential, no longer available, for service order 231397A1 set

2шт.

Part of gear set 231397A1

1шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear, No longer available, For service order 231397A1 set

2шт.

Part of gear set 231397A1

1шт.

9

1966153C1

LOCKING PLATE

BRACKET lock

2шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT hex, self locking, special, 6 - 1 x 12 mm

2шт.

11

1966559C1

NUT

RING, LOCKING

2шт.

12

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

13

K395086

PIN

dowel, no longer available, for service order 231397A1 set

1шт.

Part of gear set 231397A1

1шт.

B17575

FLUID

SEALANT black RTV silicone, bolt to differential housing, 89 ml, 3 ounce, tube, not shown

1шт.
