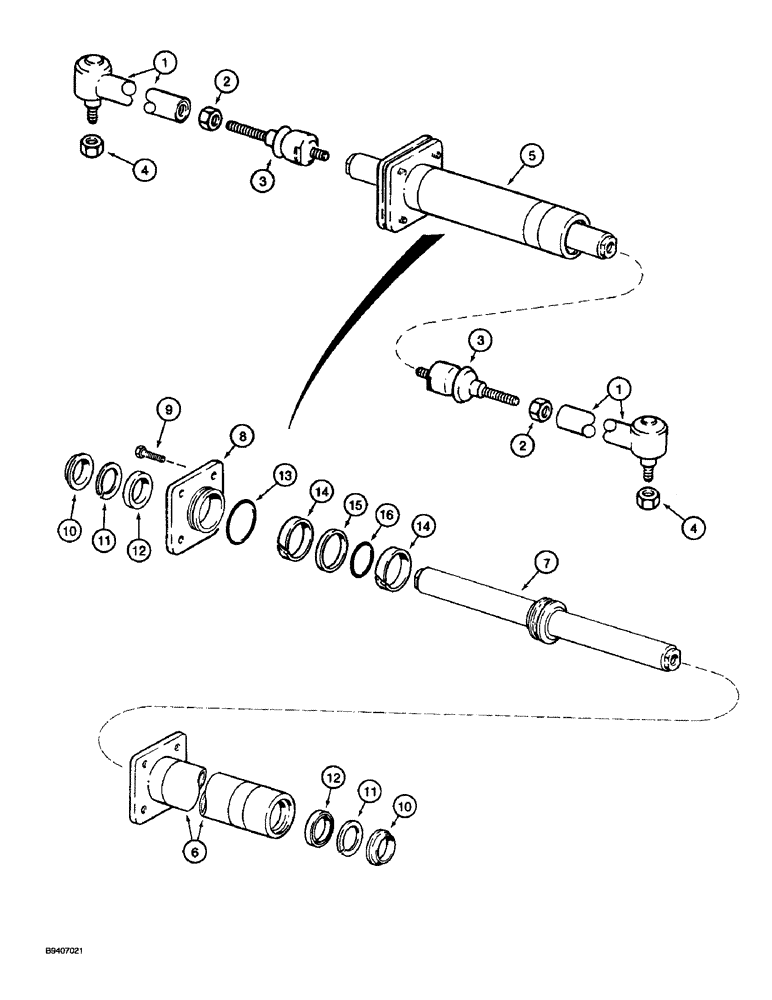

Запчасти Case 580L (6-008) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, see Figures 6-4 thru 6-16, Includes: Ref. 4, 5, and P/N 144457A1

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

144457A1

STEERING ARM

ARM, STEERING, Assy, Incl Ref. 1-3

2шт.

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

JOINT ball, swivel side

1шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

hex, special

1шт.

3

112509A1

BALL JOINT

JOINT ball, swivel side

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

NUT hex, special

2шт.

5

144458A1

CYLINDER

ASSEMBLY, steering, 4WD, order D149739 kit to service seals, Includes: Ref. 6-16 and P/N D149739

1шт.

5

85805978R

REMAN-HYD CYLINDER

570LXT, 580L, Both SERIES-2 LOADER LANDSCAPER, ASSEMBLY, steering (1/98-), Reman For New PN 144458A1

1шт.

5

85805978C

CORE-HYD CYLINDER

Return Number

1шт.

6

D149738

STEERING CYLINDER

TUBE cylinder

1шт.

7

144459A1

ROD

piston

1шт.

8

D149737

GLAND

cylinder

1шт.

9

114296A1

BOLT

BOLT self locking, special, steering cylinder, for service order 100524A1 bolt and 892-11012 washer

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER rod

2шт.

Part of seal kit D149739

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup

2шт.

Part of seal kit D149739

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL rod

2шт.

Part of seal kit D149739

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of seal kit D149739

1шт.

14

NSS

NOT SOLD SEPARAT

RING wear

2шт.

Part of seal kit D149739

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit D149739

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING expander

1шт.

Part of seal kit D149739

1шт.

D149739

SEAL PACKAGE

KIT seal, steering cylinder, for rod, gland, and piston, Includes: Ref. 10 - 16

1шт.

B17575

FLUID

SEALANT black RTV silicone, cylinder flange to cylinder, 89 ml, 3 ounce, tube, not shown

1шт.
