Запчасти Case 580L (6-006) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN

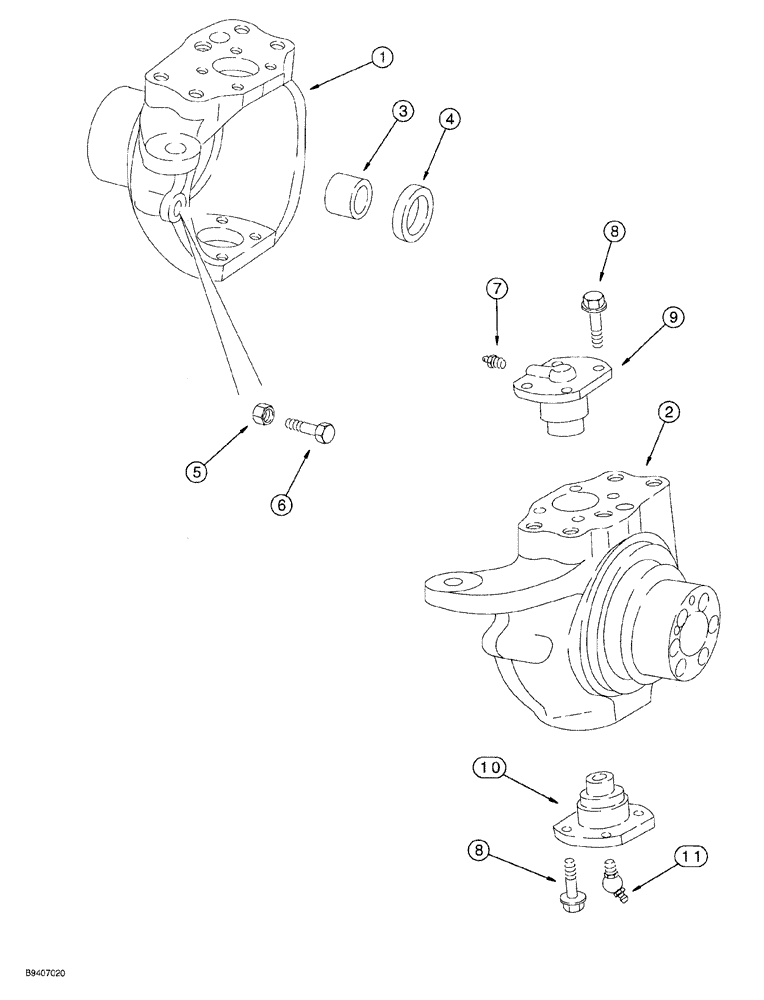

Схема запчастей Case 580L - (6-006) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN
5
3
4
1
7
2
6
11
8
10
8
8

Артикул

Название

Примечание

Количество

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, parts list Figures 6-4 - 6-16, Includes: Refs. 1-11

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

1

144455A1

HOUSING

swivel, left hand; Used With 100529A1 45 x 65 x 12 Seal, Ref 4; No Longer Available, Order 397653A1 Housing, (1) 402359A1 Seal

1шт.

1

397653A1

AXLE HOUSING

Swivel, Left-Hand; Used With 402359A1 45 x 60 x 16 Seal, Ref 4

1шт.

2

144456A1

HOUSING

swivel, right hand; Used With 100529A1 45 x 65 x 12 Seal, Ref 4; No Longer Available, Order 397654A1 Housing, (1) 402359A1 Seal

1шт.

2

397654A1

AXLE HOUSING

Swivel, Right-Hand; Used With 402359A1 45 x 60 x 16 Seal, Ref 4

1шт.

3

100532A1

BUSHING

swivel housing, used with right hand or left hand swivel housing, not included with housing, order separately

2шт.

4

100529A1

OIL SEAL,45mm ID x 65mm OD x 12mm Thk

oil, swivel housing; 45 x 65 x 12; Used With 144455A1, 144456A1 Housings, Ref 1, 2

2шт.

4

402359A1

OIL SEAL

Oil, Swivel Housing; 45 x 60 x 16; Used With 397653A1, 397654A1 Housings, Ref 1, 2

2шт.

5

85805986

NUT,M16

2шт.

6

1537664C1

BOLT,M16 x 100mm

BOLT, 16 mm, steering stop

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

Swivel cap

2шт.

8

100533A1

BOLT,Self-Lock, M12 x 30mm

hex, special, 12-1.75 x 30 mm

16шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, Swivel housing cap, Upper

2шт.

10

122264A1

PIN

King, Swivel housing cap, Lower

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

Special, Swivel cap

2шт.

B17575

FLUID

SEALANT black RTV silicone, 89 ml (3 ounce) tube, wear ring to swivel housing, not shown

1шт.

Выбрано товаров: 18
