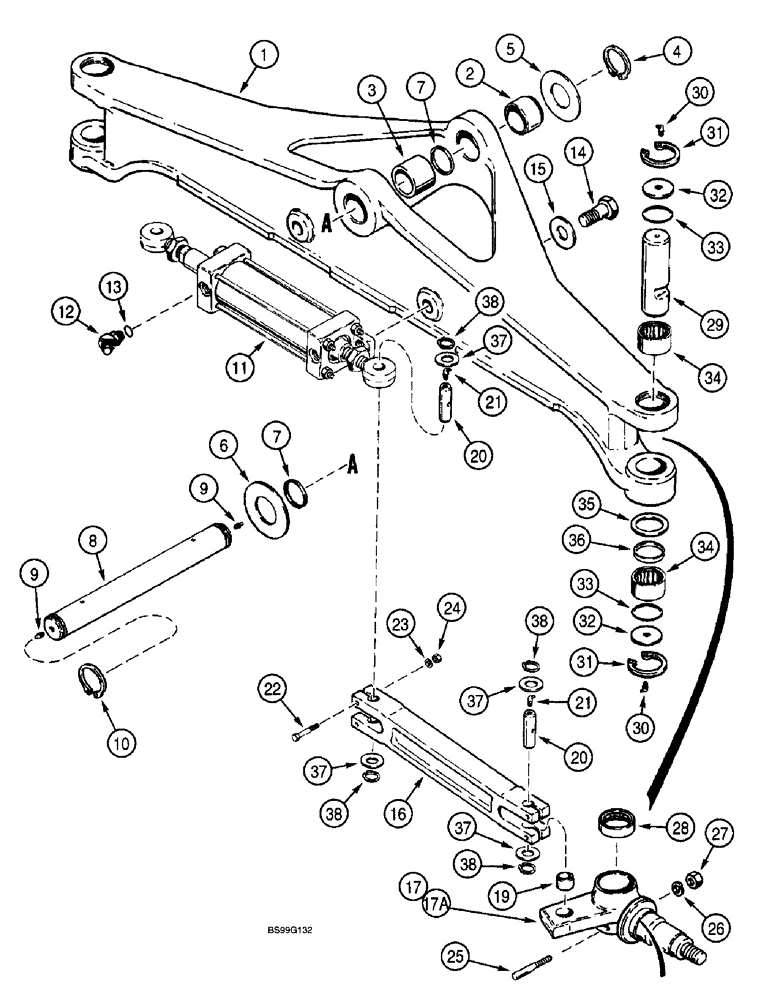

Запчасти Case 580L (5-14) - FRONT AXLE AND SPINDLES, TWO WHEEL DRIVE MODELS (05) - STEERING

1

D138954

AXLE, FRONT

AXLE ASSEMBLY, front, with single rear bushing, Includes: Ref. 2-3

1шт.

D138954R

REMAN-FRT AXLE wo DL

570LXT, 580L Both SERIES 2 (1/98-)

1шт.

D138954C

CORE-FRONT AXLE

Return Number

1шт.

2

D137345

BUSHING,50.19mm ID x 60mm OD x 36mm L

axle, front, 36 mm, 1-13/32 inch long

1шт.

3

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

axle, rear, 54 mm, 2-1/8 inch long

1шт.

4

800-44050

SNAP RING,M50, Ext

RING heavy external retaining, No. 50, axle pivot pin retaining, front

1шт.

5

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

flat, special, used as spacer

1шт.

6

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

thrust, front, 2-1/16 x 4-1/2 x 3/16 inch

1шт.

7

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

grease

2шт.

Part of two wheel drive axle kit 352487A3

1шт.

8

138616A1

AXLE PIN,50mm OD x 436.5mm L

PIN axle pivot

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

10

800-44050

SNAP RING,M50, Ext

RING heavy external retaining, No. 50, axle pivot pin retaining, rear

1шт.

11

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, 2WD front axle, 70, 2-3/4 inch ID x 170 mm, 6-45/64 inch stroke, parts list Figure 5-12

1шт.

11

G107720R

REMAN-HYD CYLINDER

570LXT, 580l Series-2, 2WD

1шт.

11

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

12

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45°, 3/4-16 inch flare x adj. O-ring boss, Incl. Ref 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

13-1638

BOLT,Hex, 1" - 8 x 2-3/8", Gr 5, Full Thd

No Longer Used, Whenever Cylinder Is Service or Replaced, Always Replace Mounting Hardware With 446106A1 Bolt and D36505 Washer Hex, 1"-8 x 2 3/8", G5, Full Thd

2шт.

Part of two wheel drive axle kit 352487A3

1шт.

14

446106A1

BOLT (MACHINE),Hex, 1" - 8 x 2 3/8", Gr 5

2шт.

15

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

flat, special, hardened, 1-1/16 x 1-7/8 x 9/64 inch, 1-1/16 x 1-7/8 x 9/64 inch

2шт.

Part of two wheel drive axle kit 352487A3

1шт.

16

D123806

LINK, CONNECTING

LINK steering

2шт.

17

D125340

SPINDLE

ASSEMBLY, right hand, .059 inch radius, used with A61447 cone on Figure 5-16, if used.

1шт.

17a

320977A1

SPINDLE

right hand, .137 inch radius, does not include bushing, order separately, used with 296824A1 cone on Figure 5-16, for service order 335130A1 spindle which includes bushing, if used

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

17b

335130A1

SPINDLE

ASSEMBLY, right hand, .137 inch radius, used with 296824A1 cone on Figure 5-16, if used

1шт.

18

D125341

SPINDLE

ASSEMBLY, left hand, .059 inch radius, not shown, used with A61447 cone on Figure 5-16, if used

1шт.

18a

303428A1

SPINDLE

left hand, .137 inch radius, not shown, does not include bushing, order separately, used with 296824A1 cone on Figure 5-16, for service order 335132A1 spindle which includes bushing, if used.

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

18b

335132A1

SPINDLE

ASSEMBLY, left hand, .137 inch radius, used with 296824A1 cone on Figure 5-16, if used, Includes: Ref. 19

1шт.

19

D127507

BUSHING,22.33mm ID x 32.25mm OD x 25mm L

spindle

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

20

D150155

PIN,22.2mm OD x 89mm L

steering link

4шт.

Part of two wheel drive axle kit 352487A3

1шт.

21

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self tap x 25/32 inch

4шт.

Part of two wheel drive axle kit 352487A3

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

Part of two wheel drive axle kit 352487A3

1шт.

23

492-11038

LOCK WASHER,3/8"

8шт.

Part of two wheel drive axle kit 352487A3

1шт.

24

425-106

NUT,3/8"-16, Cl 5

8шт.

Part of two wheel drive axle kit 352487A3

1шт.

25

D57486

PIN

- kingpin lock

2шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

Part of two wheel drive axle kit 352487A3

1шт.

27

425-118

NUT,1/2"-20, G5

hex, 1/2 inch NF

2шт.

Part of two wheel drive axle kit 352487A3

1шт.

28

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING roller, steering knuckle, spindle

2шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

29

D123865

PIVOT PIN,50.8mm OD x 168.91mm L

KINGPIN front axle

2шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

30

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45°, 1/8 PT self tap x 25/32 inch

4шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

31

100-21237

SNAP RING,2.375", Int, #237

Ring, Snap, , Brg 2.375", Int, #237

4шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

32

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER kingpin

4шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

33

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

Kingpin seal -139, 90 Duro, 2.175" ID x .103" Thk

4шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

34

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING needle, kingpin

4шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

35

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

thrust, bearing

2шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

36

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

oil

2шт.

Part of kingpin kit D103626

1шт.

Part of two wheel drive axle kit 352487A3

1шт.

37

495-11094

WASHER,7/8", SAE

flat, 15/16 x 1-3/4 x 1/8 inch

8шт.

Part of two wheel drive axle kit 352487A3

1шт.

38

103-1687

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

8шт.

Part of two wheel drive axle kit 352487A3

1шт.

D103626

PACKAGE

KIT kingpin, Incudes: Ref. 25, 28, 29, 30, 31, 32, 33, 34, 35, and 36, quantity in kit services one side of axle.

1шт.

352487A3

KIT DEPOT ASSEMBLING

KIT two wheel drive axle, Includes: Ref. 7, 14, 15, 17A, 18A, 19 thru 38

1шт.

352487A3 - per NAPO Tech Staff must order individual components. 12-23-99 jlg

1шт.
