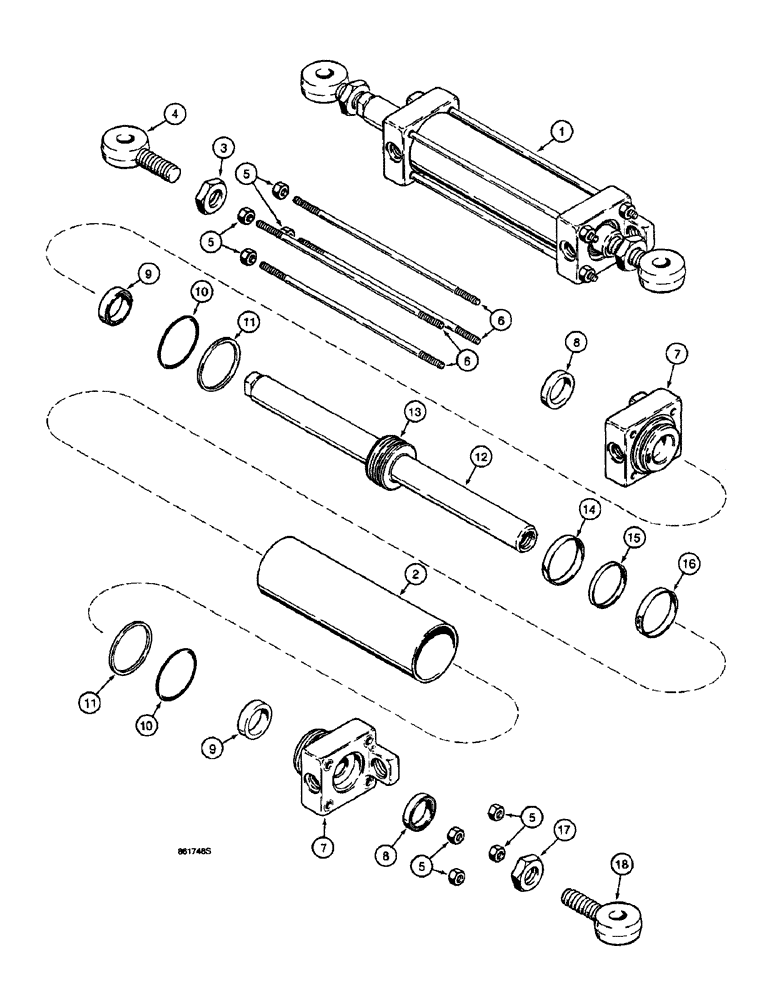

Запчасти Case 580L (5-12) - STEERING CYLINDER, *TWO WHEEL DRIVE FRONT AXLE (05) - STEERING

1

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, steering, 2WD front axle, 70 mm, 2-3/4 inch ID x 170 mm, 6-45/64 inch stroke, Includes: Ref. 2-11, 14-18, and P/N G107721

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G107720R

REMAN-HYD CYLINDER

570LXT, 580L Series-2, 2WD

1шт.

1

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

cylinder

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

1шт.

4

G106832

BALL JOINT

EYE rod, left hand thread

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

ROD tie, cylinder, 338 mm, 13-5/16 inch long

4шт.

7

G106810

CYLINDER END CAP,50.83mm Bore, 38.25mm Rod, 102mm W

GLAND cylinder

2шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of seal kit P/N G110045

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G110045

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G110045

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of seal kit P/N G110045

1шт.

G107721

ROD ASSY.

ROD ASSEMBLY, piston, 38 mm, 1-1/2 inch diameter, Includes: Ref. 12-13

1шт.

12

NSS

NOT SOLD SEPARAT

ROD piston

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON cylinder

1шт.

14

G105187

RING

wear, piston

1шт.

Part of seal kit P/N G110045

1шт.

15

G104439

RING

seal, inner

1шт.

Part of seal kit P/N G110045

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

piston, expandable, outer

1шт.

Part of seal kit P/N G110045

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

hex, jam, 7/8 inch NF

1шт.

18

G106813

BALL JOINT

EYE rod, right hand thread

1шт.

G110045

KIT

seal, Includes: Ref. 8 - 11 and 14 - 16

1шт.
