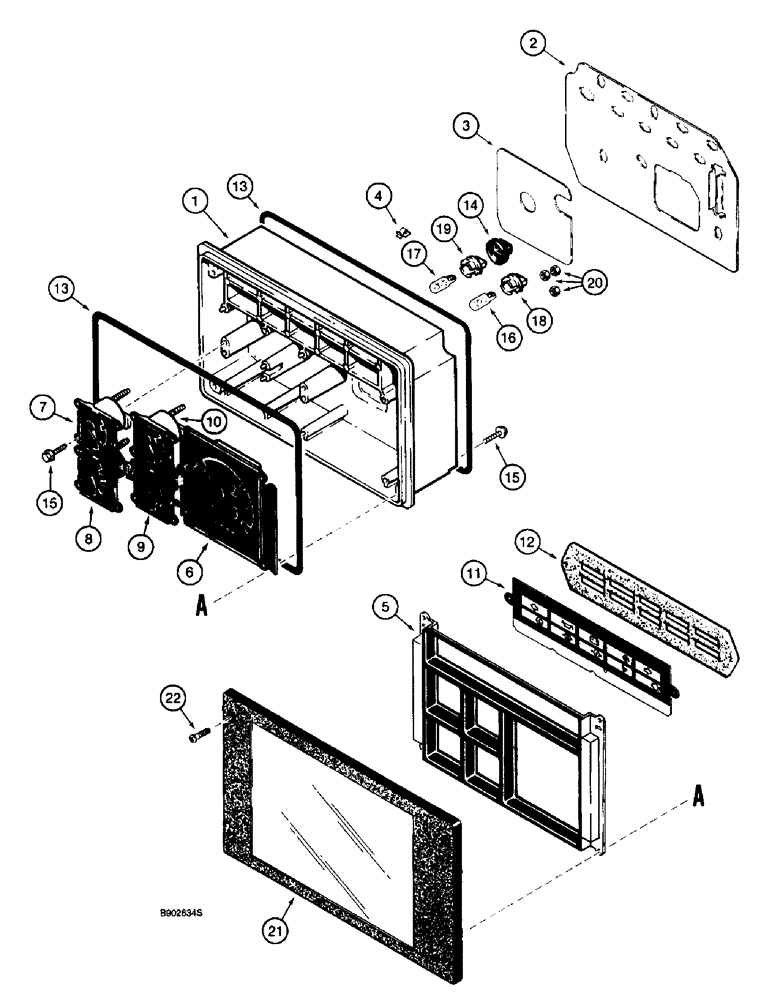

Запчасти Case 580L (4-26) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

A187965

CLUSTER

ASSEMBLY, instrument, tractor, Includes: Ref. 5-21, and P/N A191114

1шт.

A187965R

REMAN-INSTR CLUSTER

570LXT Series 2, 580L Series 2

1шт.

A187965C

CORE-CLUSTER, INSTR

Return Number

1шт.

A191114

HOUSING

ASSEMBLY, instrument cluster, Includes: Ref. 1-4

1шт.

1

N13545

INSTRUMENT PANEL

instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

BOARD circuit, printed, instrument cluster

1шт.

3

H422758

GASKET,1.52mm Thk

housing

1шт.

4

H422766

CLIP, SPRING

CLIP gauges

12шт.

5

N14227

COVER

instrument cluster

1шт.

6

N13543

TACHOMETER

GAUGE tachometer, Includes: hourmeter

1шт.

7

N13542

GAUGE

water temperature

1шт.

8

A47688

ELECTRICAL GAUGE

GAUGE fuel level

1шт.

9

N6807

ELECTRICAL GAUGE

GAUGE voltmeter

1шт.

10

N13546

GAUGE

oil temperature

1шт.

11

D146335

BAND

LENS identification, warning lamps

1шт.

12

D71342

GASKET,3.05mm Thk

lens

1шт.

13

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

2шт.

14

D71344

COVER

BOOT rubber, lamp socket

3шт.

15

A45093

SCREW,Hex Slotted, 12.70"

special

12шт.

16

D71346

TAIL LAMP,12V

BULB lamp, No. 168

8шт.

17

W10478

LAMP

BULB lamp, No. 194

3шт.

18

A47123

SOCKET/RECEPTACLE

SOCKET lamp

8шт.

19

A47125

PEDESTAL

SOCKET lamp, green

3шт.

20

225-14106

NUT,#6-32

3шт.

21

N14225

SHIELD

instrument cluster

1шт.

22

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.
