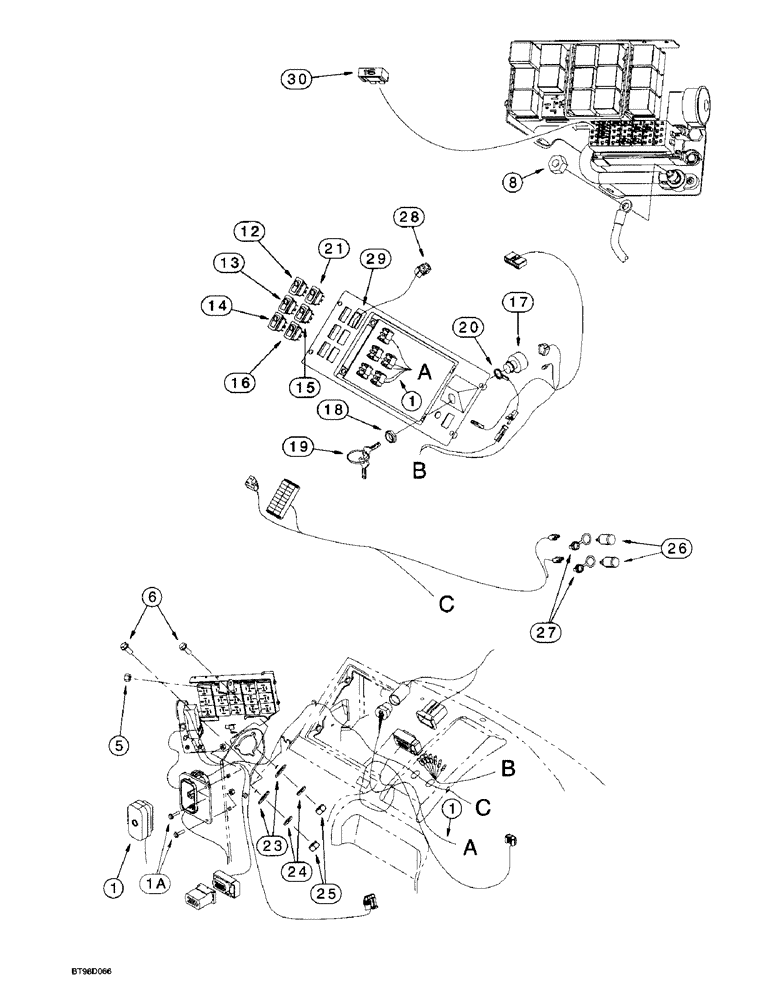

Запчасти Case 580L (4-20) - SIDE CONSOLE INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

282013A3

HARNESS

side instrument console

1шт.

1a

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

heavy hex flange, 6 - 1.0 x 25 mm

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Attaches Fuse and Relay Mounting Bracket to Parking Brake Lever Mounting bolt M8 x 1.25, Cl 8

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

8

425-106

NUT,3/8"-16, Cl 5

Attaches power wire from starter, to power junction block, 3/8" NC, Ref. 23 on Figure 4-10 3/8"-16, G5

1шт.

12

133711A1

LIGHT SWITCH

rocker, driving lamps

1шт.

13

133713A1

LIGHT SWITCH

rocker, front work lamps

1шт.

14

133716A1

ROCKER SWITCH

rocker, four wheel drive, if used, see Figure 4-24 for plug used in place of switch

1шт.

15

133715A1

LIGHT SWITCH

SWITCH, LIGHTS, Rocker, Rear flood lamps

1шт.

16

283167A3

ROCKER SWITCH

rocker, differential lock, 570LXT models only, see Figure 4-24 for plug used in place of switch

1шт.

282775A1

IGNITION SWITCH

SWITCH ASSEMBLY, ignition, Includes keys, Includes: Ref. 17-19

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH key, without keys

1шт.

18

NSS

NOT SOLD SEPARAT

NUT hex, special, key switch mounting

1шт.

19

1964831C2

IGNITION KEY

KEY set of two, padded

1шт.

20

D137820

HARNESS

WIRE ignition, Serial Range: switch-ground

1шт.

21

191532A1

SWITCH

rocker, hand held auxiliary hydraulics, if used, see Figure 4-24 for plug used in place of switch

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

283779A1

POWER SOCKET,12V

SOCKET, POWER

2шт.

27

283781A1

CAP,Polyester Elastomer

power plug outlet

2шт.

28

296508A2

HARNESS

side console options, hand held

1шт.

29

192299A1

DECAL

auxiliary hydraulics

1шт.

30

121413A1

FUSE,15A, Mini, Blue

Auxiliary hydraulics 15 Amp, Mini

1шт.
