Запчасти Case 580L (4-12) - BATTERY AND BATTERY CABLES, MODELS WITHOUT COLD START (04) - ELECTRICAL SYSTEMS

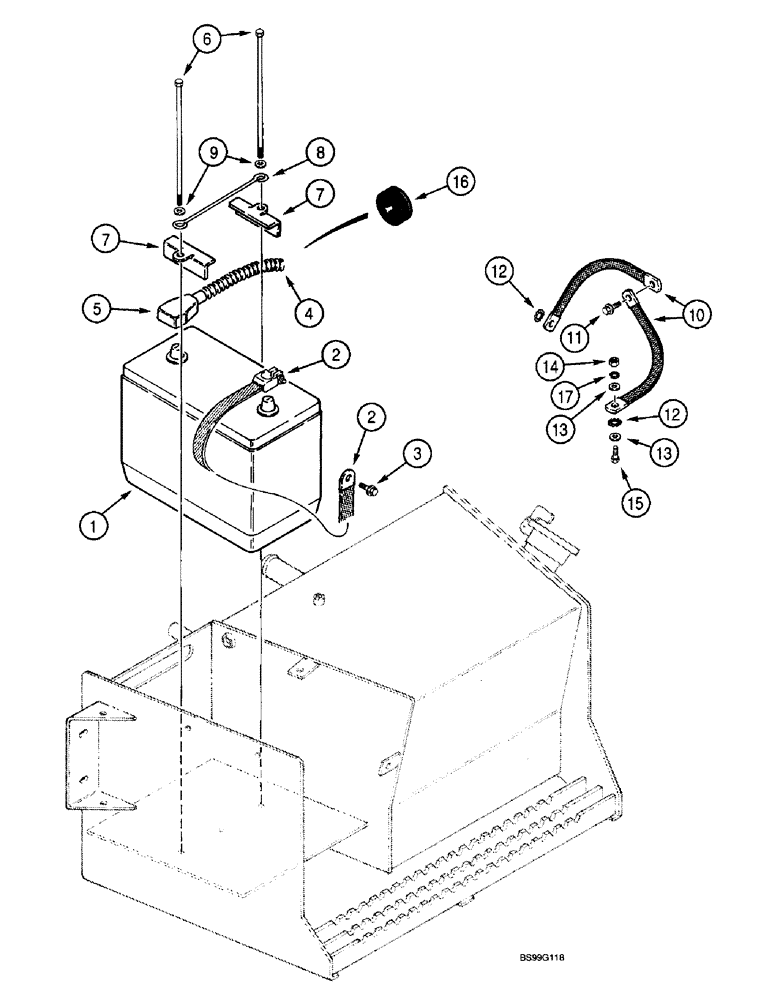

Схема запчастей Case 580L - (4-12) - BATTERY AND BATTERY CABLES, MODELS WITHOUT COLD START (04) - ELECTRICAL SYSTEMS
15
14
2
8
12
1
6
5
13
4
12
13
3
17
7
16
10
9
11
7
2

Артикул

Название

Примечание

Количество

1

BMF31E

DRY BATTERY

BATTERY dry, 12 volt, dry, models without cold start

1шт.

2

D83485

CABLE,300mm L

STRAP battery, negative ground

1шт.

3

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

heavy hex flange, negative battery cable ground bolt to chassis, 10 - 1.5 x 20 mm

1шт.

4

144171A1

CABLE

positive, 1500 mm long, Includes Ref. 5

1шт.

5

383619R1

COVER

BOOT positive battery cable

1шт.

6

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

hex, 10 - 1.5 x 245 mm

2шт.

7

D125079

BRACKET

battery hold down

2шт.

8

D55561

RETAINER

battery

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

10

D127018

STRAP

ground

2шт.

11

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

heavy hex flange, 10 - 1.5 x 25 mm

1шт.

12

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER internal, external tooth lock, 3/8 inch

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

hex, 8 - 1.25 x 35 mm

1шт.

16

257279A1

GROMMET

battery cable, mounts in chassis side channel

2шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 17
