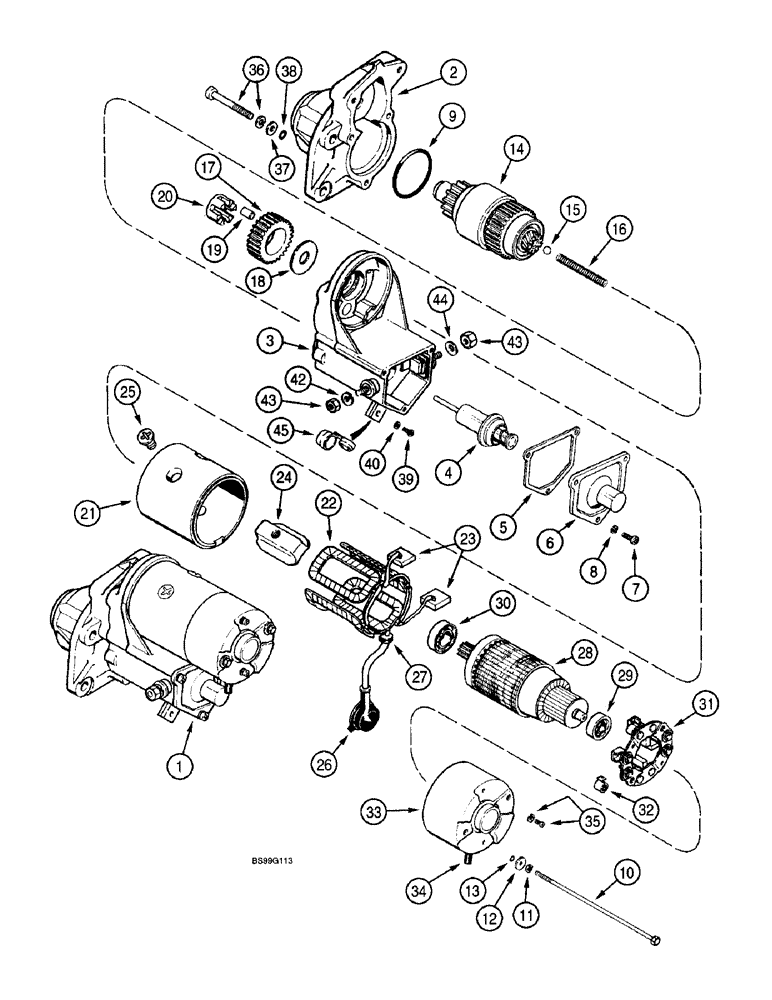

Запчасти Case 580L (4-02) - STARTER (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

STARTER ASSEMBLY, engine, new, Includes Ref. 2, 3, 9, 10, 14-20, 27, 28, 31, 33-35, 39-45 and P/N's A47240, A47230

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

HOUSING drive end

1шт.

3

104588A1

SOLENOID

SWITCH ASSEMBLY, magnetic, Includes Ref. 4-8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID switch

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER cover screw

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

O-RING switch to housing, 47 ID x 2.4 mm wide

1шт.

A47243

BOLT

BOLT ASSEMBLY, through, Includes Ref. 10-13

2шт.

10

A47128

BOLT

BOLT tie, starter, through

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

495-81252

WASHER,#12

WASHER, (Flat, 1/4" x 9/16" x 1/16") #12

1шт.

13

A47127

O-RING

O-RING bolt seal

1шт.

14

104587A1

CLUTCH

CLUTCH drive

1шт.

15

211-1311

BALL,11/32" Dia

BALL - chrome alloy steel, 11/32", grade 200

1шт.

16

A47232

SPRING

SPRING compression, clutch drive, 2-13/16 inch free length

1шт.

17

A47233

GEAR

PINION idler

1шт.

18

A47234

WASHER

WASHER thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER pinion bearing, idler

5шт.

20

A47236

RETAINER

RETAINER roller bearing

1шт.

A47240

HOUSING

HOUSING ASSEMBLY, with coil and brushes, Includes Ref. 21-26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE lock

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY, starter, Includes Ref. 29-30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

BEARING, BALL

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY, brush, Includes 2 brushes, Includes Ref. 32

1шт.

32

A47249

SPRING

SPRING brush tension

4шт.

33

A47237

FRAME

FRAME commutator end

1шт.

34

A47238

COVER

COVER end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY, with washer, brush retaining, brush, Serial Range: holder-cover

2шт.

A47230

BOLT

BOLT ASSEMBLY, commutator end cover to drive end housing, Includes Ref. 36-38

3шт.

36

A47129

CAPTIVE WASHER SCREW

BOLT ASSEMBLY, with washer

1шт.

37

195-2015

WASHER

WASHER flat, 1/4 x 1-3/4 x 1/16 inch

1шт.

38

A47130

O-RING

O-RING bolt seal

1шт.

39

A46950

SCREW,M5 x 0.8 x 0.8mm

SCREW terminal, special, 5 x 8 mm

1шт.

40

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

42

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

1шт.

43

825-1410

NUT,M10, Cl 8

Nut, , Field coil terminal M10, Cl 8

2шт.

44

A10454

WAVE WASHER

WASHER spring, field coil terminal

1шт.

45

104589A1

BUSHING

BUSHING insulation

1шт.
