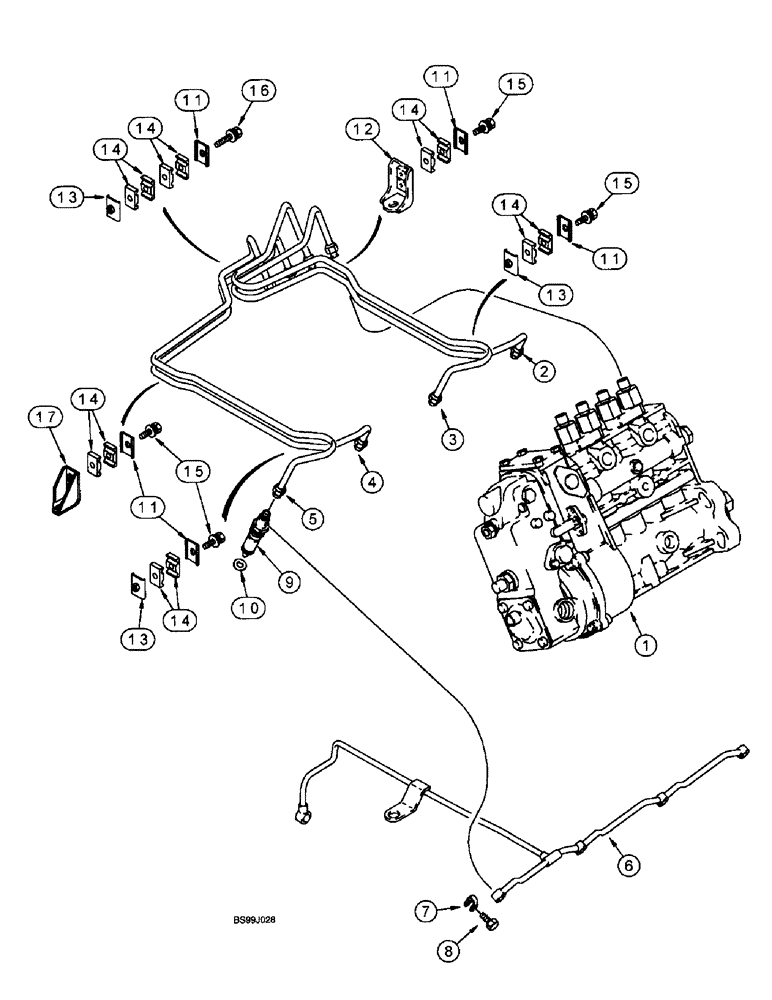

Запчасти Case 580L (3-10) - FUEL INJECTION SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J930143

PUMP, FUEL INJECTION

PUMP ASSEMBLY, fuel injection, without aneroid, 4-390 engine, parts list Figure 3-14

1шт.

1

J930154

PUMP

ASSEMBLY, fuel injection, without aneroid, 4T-390 engine, parts list Figure 3-14

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE fuel injector, No. 1 cylinder

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE fuel injector, No. 2 cylinder

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE fuel injector, No. 3 cylinder

1шт.

5

J932160

FUEL TUBE,750 mm L

TUBE fuel injector, No. 4 cylinder

1шт.

6

J927633

TUBE

manifold, fuel

1шт.

7

J903380

SEAL

connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

9

REF

INSTRUCTION

NOZZLE ASSEMBLY, fuel injection, parts list Figure 3-18

4шт.

10

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

11

CURJ904711

CLAMP

BRACKET fuel tube

5шт.

12

J282942

BRACKET

BRACE fuel tube

1шт.

13

J917717

BRACE

BRACKET fuel tube

3шт.

14

J917746

CLAMP

fuel tube

12шт.

15

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

4шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT hex, captive washer, special, 5 - 0.8 x 35 mm

1шт.

17

J919086

BRACKET

BRACE fuel tube

1шт.
