Запчасти Case 580L (3-08) - THROTTLE CONTROL LINKAGE, FOOT CONTROLS (03) - FUEL SYSTEM

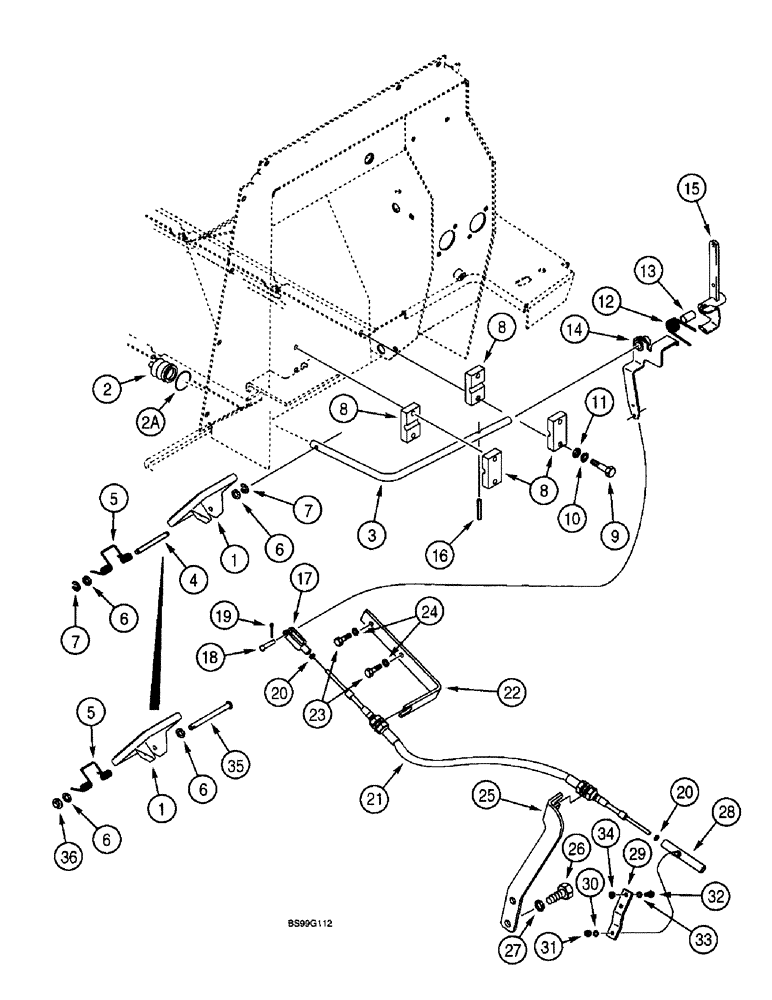

Схема запчастей Case 580L - (3-08) - THROTTLE CONTROL LINKAGE, FOOT CONTROLS (03) - FUEL SYSTEM
19
35
26
22
25
32
29
30
6
5
7
21
1
8
10
24
33
2a
6
28
11
12
8
18
36
3
9
5
13
2
23
8
1
27
14
6
20
6
20
7
17
15
31
16
34
4

Артикул

Название

Примечание

Количество

1

282242A1

PEDAL

accelerator, plastic

1шт.

2

132931A1

BOOT

Accelerator pedal rod, 1/2" rod

1шт.

2a

189109A1

SPRING,Compression, 42mm OD

RETAINER boot spring

1шт.

3

282931A1

LEVER

ROD accelerator pedal shaft

1шт.

4

255291A1

PIN,5mm OD x 56mm L

throttle pedal, if used

1шт.

5

256776A1

SPRING

1/16 x 1/2 inch

1шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

7

800-435

CIRCLIP,M5

E-type, External retaining, If used M5

2шт.

8

D124857

CLAMP

BLOCK cross shaft

4шт.

9

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8)

4шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

12

123558A1

SPRING

throttle return

1шт.

13

123392A1

SPACER

spring retaining

1шт.

14

245287A1

SUPPORT

BRACKET spring return

1шт.

15

302846A1

LEVER

throttle control

1шт.

16

838-3640

PIN,M6 x 40, Coiled

Roll 6 x 40 mm

1шт.

17

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

CLEVIS, ADJUSTABLE, #10-32 x 1 9/16"

1шт.

18

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

19

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

20

225-14210

NUT,#10-32

1шт.

21

275454A1

CABLE,812.8mm L

throttle, to injection pump

1шт.

22

275456A1

SUPPORT

BRACKET throttle, mounts on firewall weld nuts

1шт.

23

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

275455A1

SUPPORT

BRACKET throttle

1шт.

26

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M12 x 30, 10.9

2шт.

27

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

28

278183A1

BALL JOINT

JOINT ball

1шт.

29

275457A1

LEVER

BAR throttle lever

1шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

hex, jam, 1/4 inch NF

1шт.

32

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

33

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

35

322860A1

PIN,7.9mm OD x 55.6mm L

Clevis, throttle pedal, if used

1шт.

36

103-1518

SNAP RING,#18, Ext

Ring, Snap, , If used #18, Ext

1шт.

Выбрано товаров: 37
