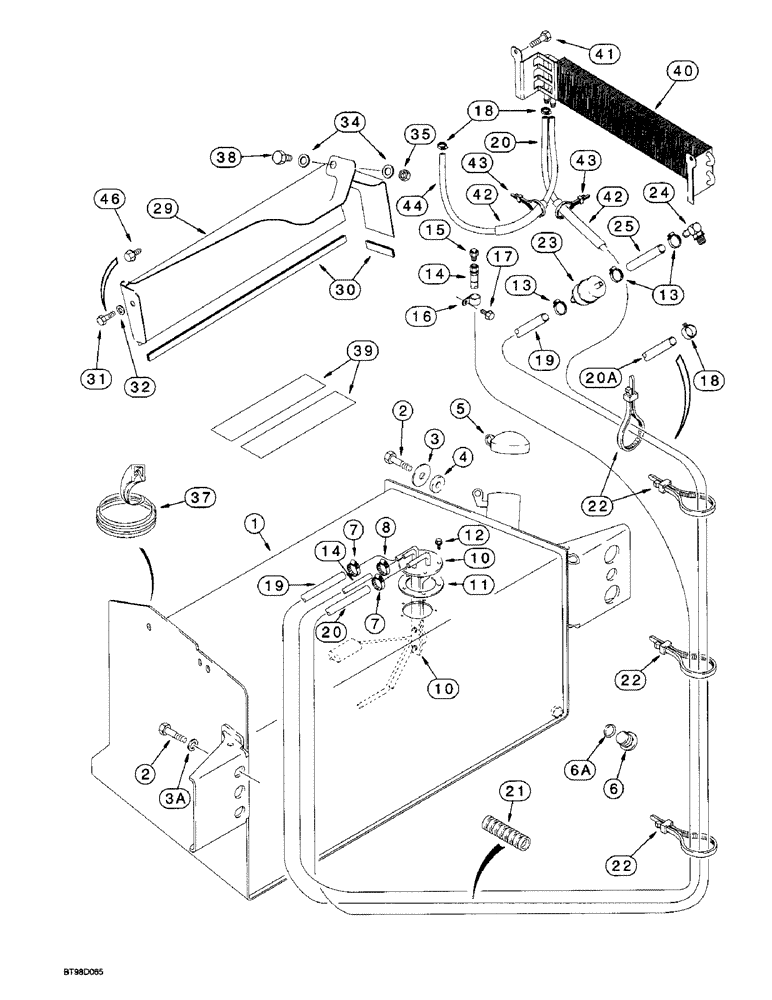

Запчасти Case 580L (3-02) - FUEL RESERVOIR AND FUEL LEVEL SENSOR (03) - FUEL SYSTEM

1

284041A3

FUEL TANK

TANK fuel reservoir, 31 gallon, mounts to left hand side of chassis, Includes left hand steps and Ref. 6 plug

1шт.

1a

281819A4

FUEL TANK

TANK fuel reservoir, 40 gallon, optional, mounts to left hand side of chassis, Includes left hand steps and Ref. 6 plug, if used, not shown

1шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

WASHER flat, hardened, special

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

WASHER flat, hardened, 22 x 37 x 4 mm

2шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

SPACER bushing, left hand side of tank

2шт.

5

130049A1

FILLER CAP

CAP fuel tank, non-vented

1шт.

6

86625138

PLUG,7/18" - 14

Included with Ref. 1 or 1A Fuel Tank, Includes Ref. 6A

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP adj., 1/2 - 29/32 inch dia.

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Center hose

1шт.

10

284431A1

SENDER UNIT

SENDER SENSOR fuel level, Includes grounding nut, lock washer and flat washer, 31 gallon tank, Ref. 1

1шт.

10

298463A1

SENDER UNIT

SENDER SENSOR fuel level, Includes grounding nut, lock washer and flat washer, 40 gallon tank, Ref. 1A

1шт.

11

188311A2

GASKET,2.38mm Thk

GASKET fuel sensor

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

SCREW self tapping, hex washer head, special, No. 10 NF x 5/8 inch

5шт.

13

196252A1

CLAMP

CLAMP hose

3шт.

14

234892A1

HOSE

HOSE,LARGE HOSE vent, 1100 mm, 43-5/16 inch long

1шт.

15

130047A1

BREATHER ASSY.

VENT fuel, 1/4 inch PTF short

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10-1.5 x 30 mm

1шт.

18

1348264C1

HOSE CLAMP

CLAMP hose, 3/8 inch

1-3шт.

19

234888A1

FUEL HOSE,12.70 mm ID x 1280.00 mm , SAE 30R7

Fuel Supply, to Fuel Lift Pump

1шт.

20

244552A1

FUEL HOSE,9.53 mm ID x 2550.00 mm, SAE 30R7

Return, Attaches To Injector Return Line On Engine, Models With Turbocharged Engine, Without Air Conditioning

1шт.

20a

284452A2

FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7

SLEEVE fuel line hose guard, 203 mm, 8 inch long

1шт.

21

130048A1

PROTECTOR

STRAP tie, nylon, retaining, 15 inch

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP tie, nlyon, 15 inch

1шт.

23

194199A1

FUEL FILTER

FILTER fuel, in line

1шт.

24

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

ELBOW 90 degree, to engine fuel lift pump, 1/2 stem end x 1/4 inch PT

1шт.

25

196247A1

FUEL HOSE,12.70 mm ID x 78.0 mm, SAE 30R7

Fuel Filter to Lift Pump

1шт.

29

189602A2

COVER ASSY

COVER left hand loader lift frame tubing, mounted above fuel reservoir, models without clam bucket or auxiliary hydralics, Replaces 189602A1 cover

1шт.

29a

188009A2

COVER ASSY

COVER left hand loader lift frame reservoir, models with clam bucket, not shown, Replaces: 188009A1 cover

1шт.

30

191046A1

ORNAMENTAL STRIP

TRIM edge, 650 mm, 25-19/32 inch long, cut from A165860 bulk trim

1шт.

Apply 75 mm, 3 inch, of trim to front lower edge and 570 mm, 22-7/16 inch, of trim to outside lower edge of cover.

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

if used

1шт.

37

D40442

MOLDING

TRIM edge, 305 mm, 12 inch long, cut from F42827 bulk trim

1шт.

38

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Used with 188009A2 cover on models with three spool valve

1шт.

38

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used with 189602A2 cover on models with two spool valve

1шт.

39

307348A1

ANTI-SKID STRIP

700 mm, 27-9/16" long

2шт.

40

241685A1

COOLER

COOLER fuel

1шт.

Used on models without turbocharged engine.

1шт.

41

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

Used on models without turbocharged engine.

1шт.

42

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

GUARD hose sleeve

2шт.

Used on models without turbocharged engine.

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP tie, nylon, 15 inch

4шт.

Used on models without turbocharged engine.

1шт.

44

303922A1

FUEL HOSE

HOSE injection pump to fuel cooler, 1225 mm, 48-1/4 inch long

1шт.

Used on models without turbocharged engine.

1шт.

46

307577A1

BOLT

BOLT hex washer, self aligning, 8 - 1.25 x 20 mm

1шт.

A165860

TRIM

TRIM edge, bulk, 696 mm, 27-3/8 inch long

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm, 116 inch long

1шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1-2шт.
