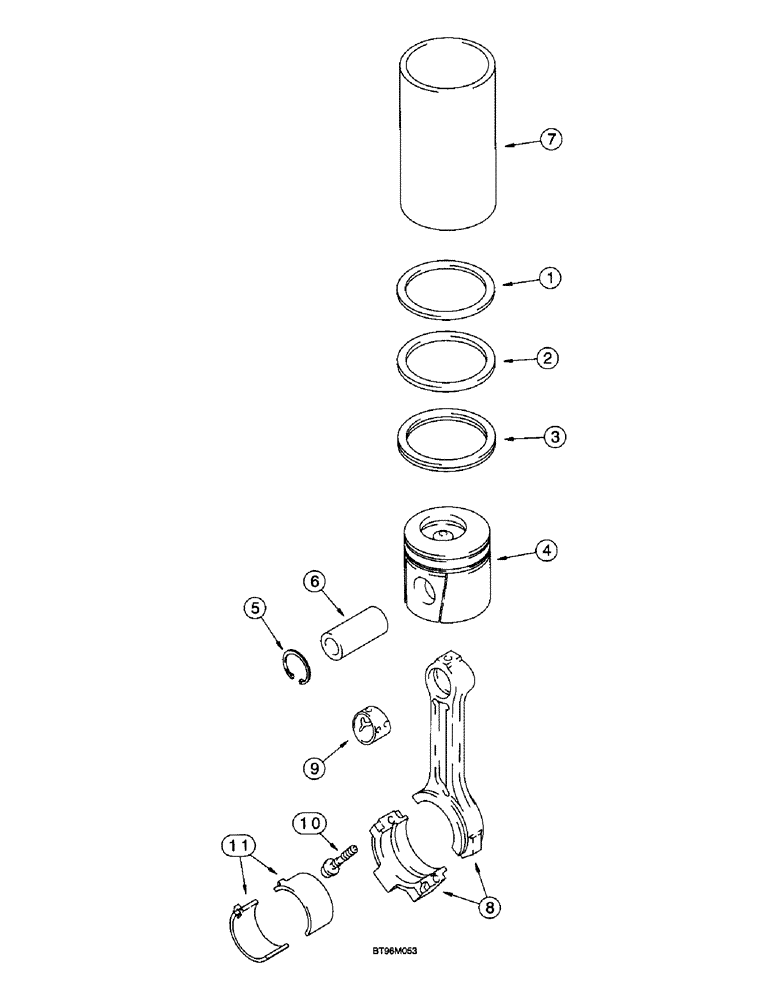

Запчасти Case 580L (2-58) - PISTONS AND CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE PISTONS (02) - ENGINE

J800345

PISTON & RINGS KIT

KIT piston, standard, use to service 3934975 piston

1шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J800349

PISTON & RINGS KIT

KIT piston, standard, use to service 3934976 piston

1шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J804980

PISTON & RINGS KIT

KIT piston, standard, use to service 3932514 piston, Includes P/N J804930 and Ref. 4-5

1шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J804930

PISTON RING SET

KIT ring, standard, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J804981

PISTON & RINGS KIT

KIT piston, 0.5 mm oversize, Includes P/N J804931 and Ref. 4-5

4шт.

J804931

PISTON RING SET

KIT ring, 0.5 mm oversize, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 05. mm oversize

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J804982

PISTON & RINGS KIT

KIT piston, 1.0 mm oversize, Includes P/N J804932 and Ref. 4-5

4шт.

J804932

PISTON RING SET

KIT ring, 1.0 mm oversize, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize

1шт.

5

J901706

RING

snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use J800345, J800349, or J804980 standard pistion kit

1шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J942581

ROD, CONNECTING

ROD ASSEMBLY, connecting, new, Includes both halves, Includes Ref. 8-10

1шт.

JR942581

REMAN-CONNECTING ROD

Rod Assembly, connecting, remanufactured, component parts shown on this page do not apply to the remanfactured assembly

1шт.

JC942581

CORE-ROD CONNECTING

Return Number

1шт.

JC901569

CORE-ROD CONNECTING

Return Number use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

84145405R

REMAN-CONNECTING ROD

580L (1/98-), 570LXT, Reman For New PN J942581

1шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J941476

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rod

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT bearing, upper and lower set, standard, connecting rod

4шт.

11

A77466

BEARING SET

KIT bearing, upper and lower set, 0.25 mm oversize, connecting rod

4шт.

11

A77467

BEARING LINER

KIT bearing, upper and lower set, 0.50 mm oversize, connecting rod

4шт.

11

A77468

BEARING SET

KIT bearing, upper and lower set, 0.75 mm oversize, connecting rod

4шт.

11

A77469

BEARING SET

KIT bearing, upper and lower set, 1.00 mm oversize, connecting rod

4шт.
