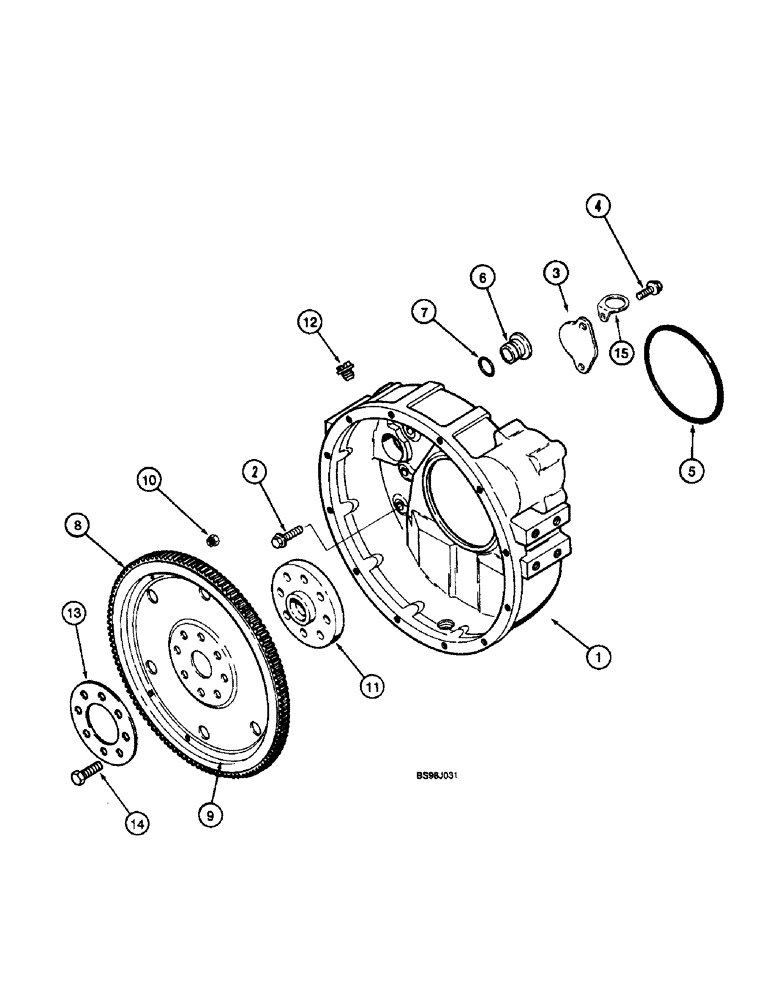

Запчасти Case 580L (2-54) - FLYWHEEL AND HOUSING, 4-390 EMISSIONS CERTIFIED ENGINE,4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J930886

HOUSING ASSY.

HOUSING flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

3

J925234

PLATE

cover

1шт.

4

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, plate retaining, 8 - 1.25 x 16 mm

2шт.

5

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING flywheel, Serial Range: housing-block

1шт.

6

J910248

PLUG

flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

J934937

FLYWHEEL

PLATE ASSEMBLY, flex, Replaces J922595 plate assembly, Includes Ref. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR ring, flywheel

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE flex

1шт.

10

NSS

NOT SOLD SEPARAT

NUT sealing

6шт.

11

J913689

FLANGE

ADAPTER crankshaft

1шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

slotted hex, 3/4 inch NF

1шт.

13

J904361

WASHER

RING clamping

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT hex, special, 12 - 1.25 x 32 mm

8шт.

15

J928989

CLIP

retaining

1шт.
