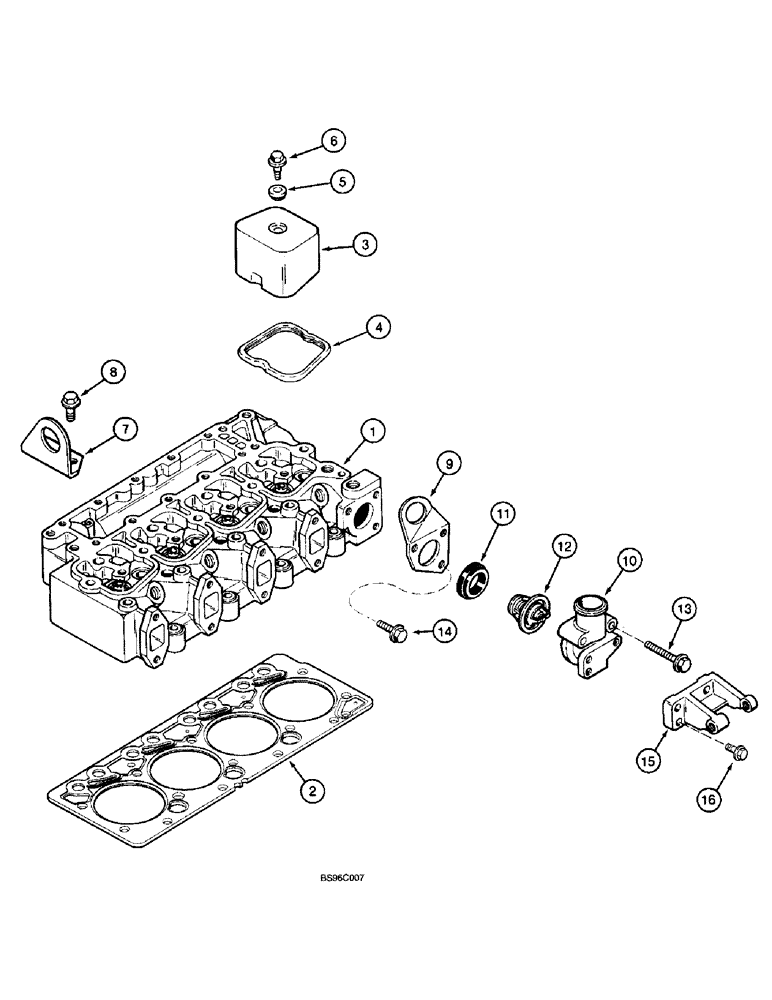

Запчасти Case 580L (2-36[1]) - THERMOSTAT AND HOUSING (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, see Figure 2-38 or 2-40 for correct cylinder head and parts list

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard

1шт.

2

J283336

GASKET

head, 2 notches, 0.25 mm thicker

1шт.

2

J283338

GASKET

head, 3 notches, 0.50 mm thicker

1шт.

3

J928404

COVER

rocker arm

4шт.

4

J930906

GASKET

SEAL rocker arm cover

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, Replaces J928406 isolator and 495-11041 flat washer

4шт.

6

J907049

BOLT,Hex

hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

lifting, rear

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

2шт.

THERMOSTAT AND HOUSING

1шт.

9

J903757

BRACKET

lifting, front

1шт.

10

J914409

HOUSING

thermostat

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, Includes Ref. 11-12

1шт.

11

J923331

GASKET

thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT coolant

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT heavy hex flange, 8 - 1.25 x 70 mm

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

alternator mounting

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

heavy hex flange, 8 - 1.25 x 25 mm

3шт.
