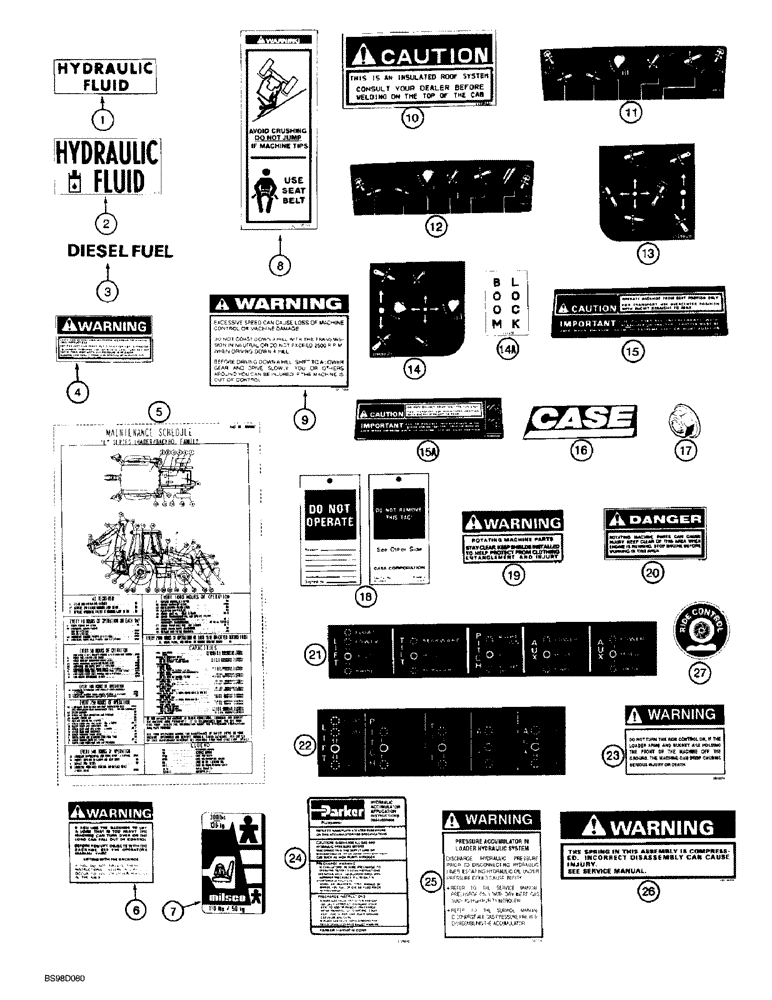

Запчасти Case 580L (9-112) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-229

DECAL

hydraulic fluid, used in production, for service order 321-6376, Ref. 2

1шт.

2

321-6376

DECAL

hydraulic fluid

1шт.

3

321-230

DECAL

diesel fuel

1шт.

4

321-6672

DECAL

Warning, check and service cooling system

2шт.

5

304940A1

DECAL

maintenance schedule, 580L, supplied by Parts and Components

1шт.

5a

304941A1

DECAL

maintenance schedule, 570LXT, supplied by Parts and Components, not shown

1шт.

6

321-6046

WARNING DECAL

DECAL, WARNING, if you use the backhoe to lift a load that is too heavy

1-3шт.

7

116534A1

KIT

decal, seat weight adjustment, includes instructions, included in seat assembly

1шт.

8

321-7030

WARNING DECAL

DECAL WARNING, Do Not Jump - Use Seat Belt

1шт.

9

D150900

DECAL

Warning, excessive speed can cause loss of machine control

1шт.

10

112236A1

DECAL

Caution, this is an insulated roof system, cab models

1шт.

11

D149824

DECAL

standard backhoe control pattern, with foot swing, upper

1шт.

12

D149825

DECAL

extendahoe control pattern, with foot swing, upper

1шт.

13

D149828

DECAL

standard backhoe control pattern, with hand swing, upper, left hand side of control console

1шт.

14

D149829

DECAL

standard backhoe control pattern, with hand swing, upper, right hand side of control console

1шт.

14a

L111356

DECAL

boom lock

1шт.

15

D149826

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for all models, with foot swing backhoe controls and standard backhoe models with hand swing

1шт.

15a

D149827

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for extendahoe backhoe models with hand swing

1шт.

16

186989A1

EMBLEM

Case

1шт.

17

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT, LOCK, , Push on type Self, Threading, 1/4"

2шт.

18

321-4614

TAG

do not operate

1шт.

19

321-6715

DECAL

Warning, rotating machine parts, PTO shield, for use on models with PTO, if used

1шт.

20

321-7007

DECAL

Danger, rotating machine parts can cause injury, for use on models with PTO, if used

2шт.

21

184122A1

DECAL

three point hitch control, for use on models with three point hitch, if used

1шт.

22

227977A1

DECAL

three point hitch control, for use on models with three point hitch, if used

1шт.

23

255927A1

WARNING DECAL

Warning, do not turn the ride control on, if the loader arms and bucket are holding the front of the machine off the ground, mounts on console by ride control switch, models with ride control, if used

1шт.

24

L129440

DECAL

hydraulic accumulator application instructions, mounts on accumulator, models with ride control, if used

1шт.

25

256318A1

DECAL

Warning, pressure accumulator in loader hydraulic system, mounts on accumulator mounting plate, models with ride control, if used

1шт.

26

321-6774

WARNING DECAL

DECAL, WARNING, the spring in this assembly is, seat spring

1шт.

27

304083A1

DECAL

ride control

2шт.
