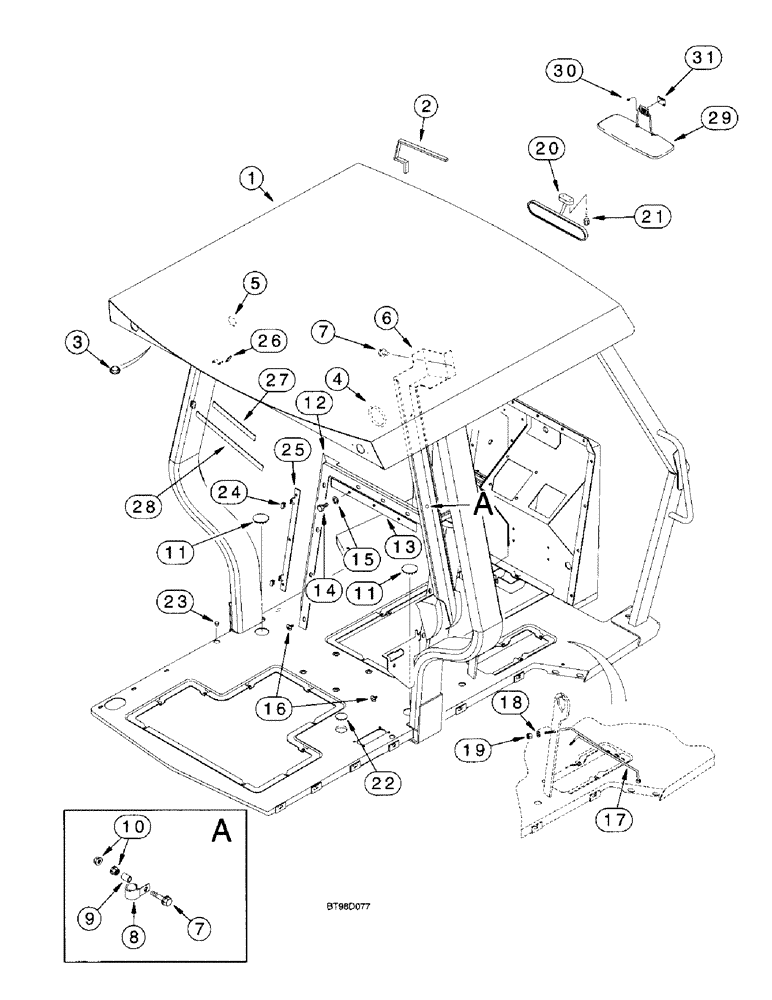

Запчасти Case 580L (9-106) - 580L OR 570LXT STANDARD ROPS CANOPY, OPERATOR COMPARTMENT (09) - CHASSIS/ATTACHMENTS

1

281001A1

ROPS

CANOPY ROPS, order from Macchinery Price List, 580L models, for service order 281004A1 which is the complete ROPS canopy with decals and mounts

1шт.

1a

281003A1

ROPS

CANOPY ROPS, order from Macchinery Price List, 570LXT models, not shown, for service order 281006A1 which is the complete ROPS canopy with decals and mounts

1шт.

See Figure 9-107 for 570LXT short ROPS canopy with minimal roof.

1шт.

2

D60180

STRIP

TRIM edge, 368 mm 14-1/2 inch long, cut from F42827 bulk trim, if used

2шт.

345-133

GLUE

ADHESIVE Superbonder 409, attaches wire harness to ROPS post if used

1шт.

3

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch

4-10шт.

4

1302758C1

PLUG

plastic, 89 mm O.D., Replaces: D93716

4шт.

5

353-417

PLUG,Dome, 2.000" hole, Nylon

button, 2 inch, nylon, driving, flood and work lamps

8шт.

6

127324A1

COVER

wiring, right hand ROPS post

1шт.

7

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

self drilling tapping, hex washer head, No. 10-16 x 3/4 inch, Teflon

3шт.

8

D147383

CLIP,5/8" J

CLAMP J-type, canopy harness to ROPS post

2шт.

9

128265A1

SPACER,10.31mm ID x 15.85mm OD x 13mm L

clamp

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

4шт.

11

205-129

HOLE PLUG BUTTON,2"

PLUG button, 2 inch ID, floor

2шт.

12

143121A1

MOLDING

SEAL firewall

1шт.

13

143127A1

PLATE

stiffener, firewall

1шт.

14

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

BOLT hex flange, self tapping, 8 - 1.25 x 20 mm

9шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

9шт.

16

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER push in, plastic

2шт.

17

180801A1

SUPPORT

BRACE loader control bracket

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

19

425-106

NUT,3/8"-16, Cl 5

6шт.

20

194513A1

MIRROR

rear view, interior

1шт.

21

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

self tapping, Fillister head, No. 10 NC x 1-1/4 inch

2шт.

22

205-33

HOLE PLUG BUTTON,25/32"

PLUG button, 5/8 inch, if used

1шт.

23

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

1шт.

24

127367A1

NUT,M6, U

4шт.

25

137851A1

PLATE

bar, front console mounting

2шт.

26

294666A1

COVER

coat hook

1шт.

27

296367A1

STRAP

velcro

1шт.

28

282845A1

STRAP

velcro

1шт.

29

E47027

VISOR, SUN

VISOR sun shade

1шт.

30

260-14516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW self tapping, pan Philips, No. 10-16 x 1 inch, Replaces: 260- 14512 3/4 inch long screw used on some models

3шт.

31

307243A1

SHIM,60mm W x 45mm L x 3mm Thk

plate, visor mounting

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm 116 inch long

1шт.
