Запчасти Case 580L (9-103) - CAB, EVAPORATOR CORE AIR CONDITIONING LINES (09) - CHASSIS/ATTACHMENTS

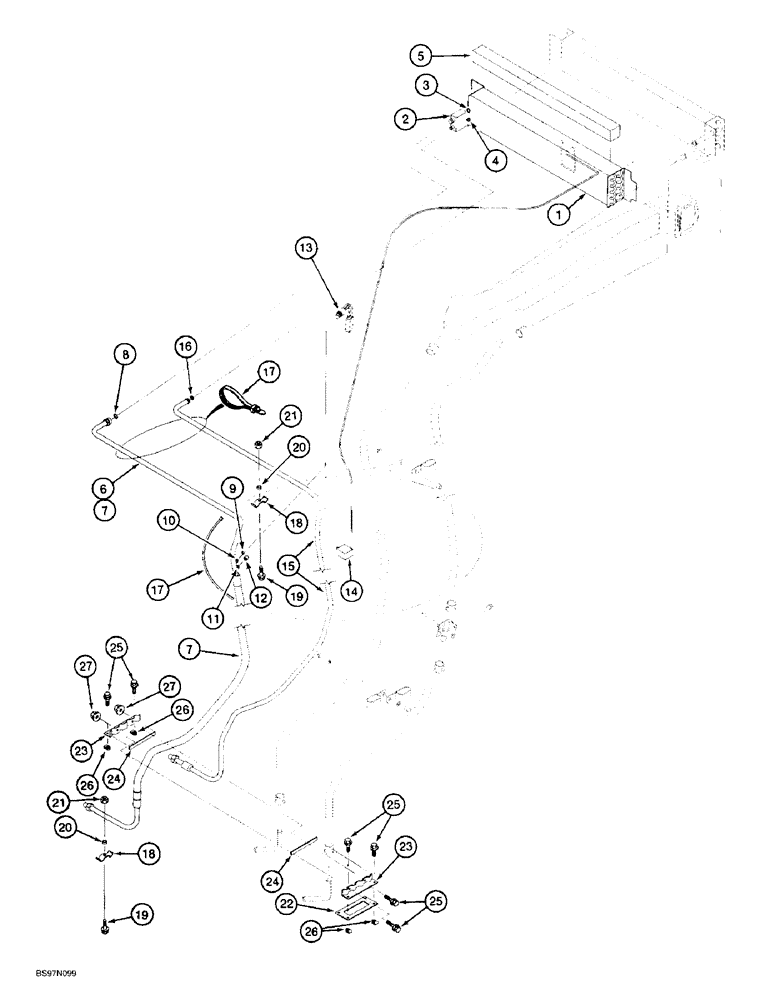

Схема запчастей Case 580L - (9-103) - CAB, EVAPORATOR CORE AIR CONDITIONING LINES (09) - CHASSIS/ATTACHMENTS
22
20
21
8
26
11
18
1
6
17
19
21
7
9
14
23
15
13
18
24
25
24
25
5
17
3
16
4
10
2
26
7
19
26
25
20
23
27
12
27

Артикул

Название

Примечание

Количество

1

131127A2

EVAPORATOR

CORE ASSEMBLY, evaporator, Includes: Ref. 2-4

1шт.

2

1990756C2

VALVE

expansion

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide

1шт.

4

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide

1шт.

5

181980A1

SEALING STRIP

SEAL adhesive -backed, 19 - 3/4 x 19 - 3/4 x 680 mm, 26-3/4 inch long, apply seal to top of evaporator core on models with heat and air conditioning

1шт.

6

83822C1

TAPE

610 mm, 24 inch long, cut from 1954475C1 bulk tape, insulation, expansion valve and hoses at expansion valve

3шт.

7

190599A1

HOSE

suction, Includes: Ref. 8-12

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, hose end

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose valve core

1шт.

10

1250594C1

CORE

VALVE core, hose, low pressure switch

1шт.

11

1250594C1

CORE

VALVE core, hose, low side service port

1шт.

12

122553A1

CAP

sealing

1шт.

13

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

14

1340287C1

SWITCH

temperature control, air conditioning

1шт.

15

124727A1

HOSE

3200 mm, 126 inch long, pressure, liquid line, attaches to Ref. 24 hose on Fig. 9-104, Includes: Ref. 16

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose end

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon, retaining

1шт.

18

D143427

CLAMP

tube

2шт.

19

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

2шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 16 O.D. x 6 mm long, hose clamp

2шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

22

124011A1

GASKET,149mm L x 64mmL x 5mm L

at cab floor, heat or air conditioned models, trim center of gasket for air conditioned units

1шт.

23

123980A1

SHIN

CLAMP heater and air conditioning hoses

2шт.

24

181979A1

SEALING STRIP

SEAL foam

2шт.

25

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

heavy hex flange, 6 - 1.0 x 20 mm

6шт.

26

833-40406

NUT,M6, U

U-type, 6 mm - 1.0

4шт.

27

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

1954475C1

ROLL

TAPE bulk, 63.5 - 2-1/2 x 9150 - 360 x 3 mm, 1/8 inch thick, insulation

1шт.

Выбрано товаров: 28
