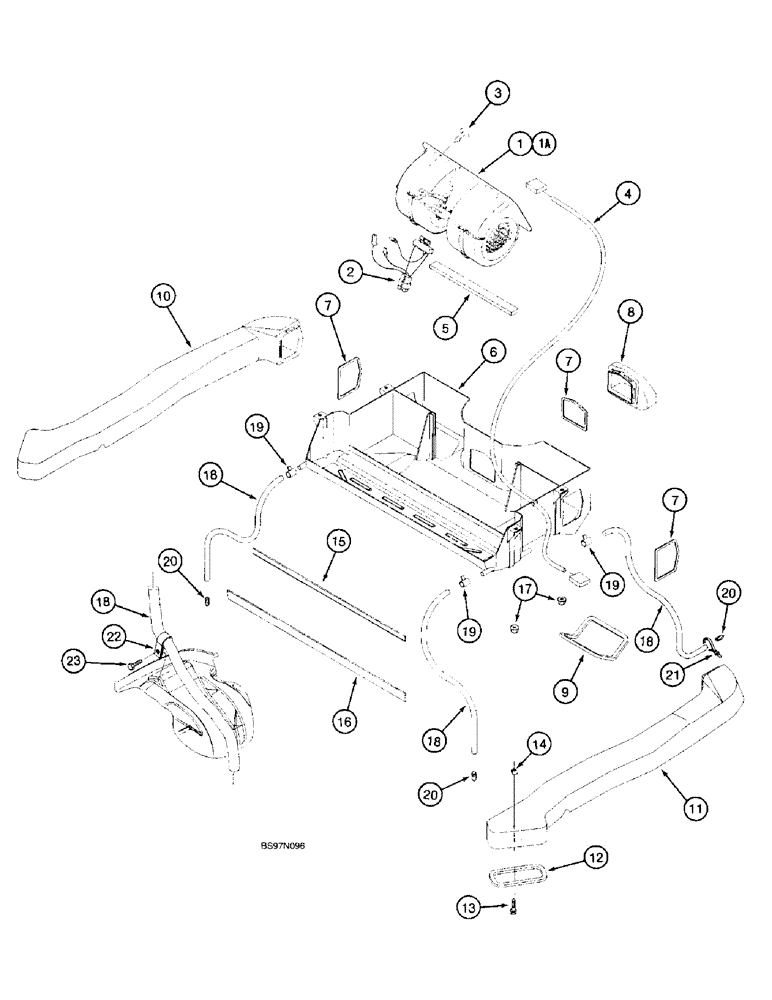

Запчасти Case 580L (9-101) - CAB, BLOWER HOUSING, HEAT AND AIR VENTILATION DUCTS, AND DRAIN LINES (09) - CHASSIS/ATTACHMENTS

1

355189A1

BLOWER,12V - 3 Spd

ASSEMBLY, air, cab, component parts not serviced separately, used in production, Replaces: 1340492C2 production blower, for service order 355190A1 blower assembly and 1343938C2 resistor, items 1A and 2 below

1шт.

1

355190A1R

REMAN-BLOWER,12V

Reman for New PN 355189A1

1шт.

1

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

1a

355190A1

BLOWER,12V

cab, air, component parts not serviced separately, Replaces: 1977564C2

1шт.

1a

355190A1R

REMAN-BLOWER,12V

Electronics - Other

1шт.

1a

355190A1C

CORE-BLOWER,12V

Return Number, BLOWER

1шт.

2

1343938C2

RESISTOR

blower

1шт.

3

182697A1

FASTENER

Retainer, plastic

5шт.

4

189404A1

HARNESS

jumper, blower

1шт.

5

181981A1

SEALING STRIP

SEAL adhesive backed, 6 - 5/16 x 20 - 51/64 x 355 mm, 14 inch long

1шт.

6

134125A1

CASE

HOUSING ventilation, heat and air

1шт.

7

128406A1

SEAL

ventilation, Serial Range: housing-duct

3шт.

8

131039A1

CONDUIT

DUCT small, front

1шт.

9

131974A1

SEAL

ventilation housing, lower front

2шт.

10

131041A1

CONDUIT

DUCT left hand, large

1шт.

11

131042A1

CONDUIT

DUCT right hand, large

1шт.

12

131973A1

SEAL

duct

2шт.

13

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

heavy hex flange, 6 - 1.0 x 20 mm

2шт.

14

833-40406

NUT,M6, U

U-type, 6 mm - 1.0

2шт.

15

1987097C1

PANEL

SEAL 9 - 23/64 x 19 - 3/4 x 735 mm, 29 inch long, air conditioning drain pan

1шт.

16

1987096C1

PLATE

(Seal), 9-23/64 x 19-3/4 x 765 mm, 30-1/8" long, Air conditioning drain pan

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

18

127073A1

CONDUIT

HOSE 2850 mm, 112-13/64 inch long, front and rear drain

4шт.

19

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP adj, 1/4 - 5/8 inch dia

4шт.

20

109239C2

CHECK VALVE

VALVE, CHECK, Drain

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon, retaining, retain front drain hoses to hydraulic lines

2шт.

22

184289A1

CLAMP,16mm D Clamping Pipe

hose, mounts on left hand fender

1шт.

23

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

self drilling tapping, hex washer head, No. 10-16 x 3/4 inch, Teflon

1шт.
