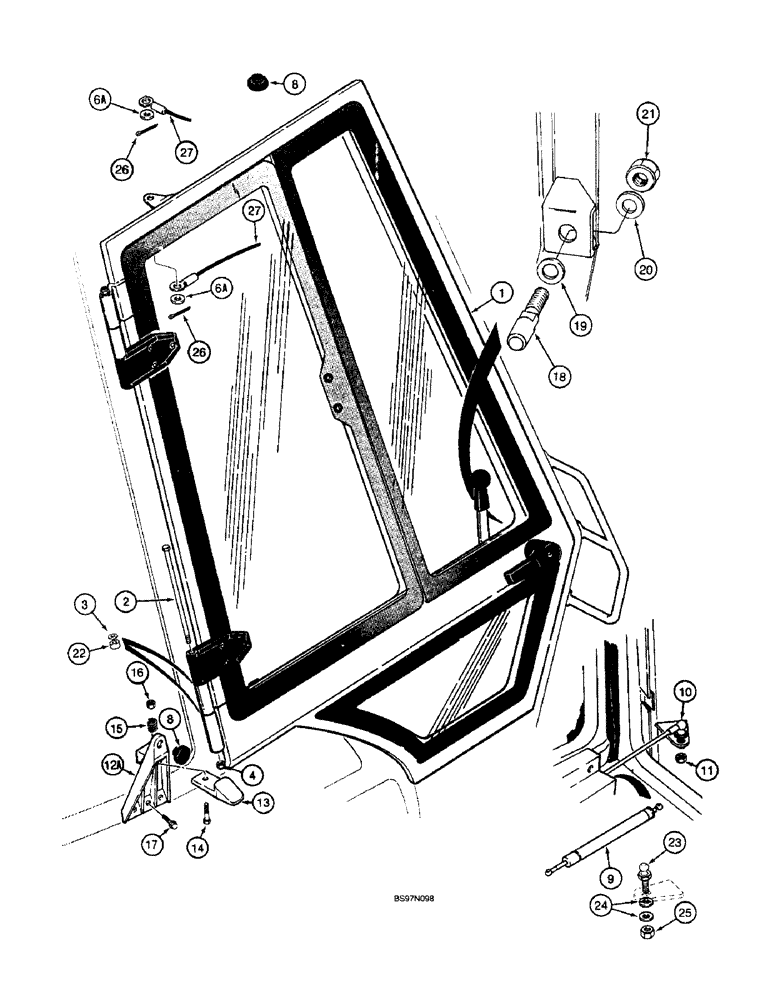

Запчасти Case 580L (9-092) - LEFT-HAND AND RIGHT-HAND CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR cab, see Figure 9-090 through 9-112

1шт.

2

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

hex, 3/8 NC x 9-1/2 inch

4шт.

3

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic

8шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

NUT light hex, self locking, 3/8 inch NC

4шт.

6a

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

8

L60224

BUMPER

rubber, cab door frame and window latch

4шт.

9

F44881

CYLINDER ASSY.

CYLINDER door, left-hand and right-hand

2шт.

10

1340345C1

BALL STUD

STUD ball, cylinder, right-hand door

1шт.

11

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

2шт.

12

230590A1

SUPPORT

BRACKET left-hand cab door window retaining, mounts to frame, black, not shown

1шт.

12a

230589A1

SUPPORT

BRACKET right-hand cab door window retaining, mounts to frame, black

1шт.

13

230588A1

LATCH

door window to cab frame

2шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Latch to bracket Hex, 1/4"-20 x 1 1/4", G5

2шт.

15

D36669

SPRING

compression, left-hand and right-hand window latch release

2шт.

16

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

17

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch, bracket to frame

6шт.

18

R52735

LATCH

STRIKER door latch

2шт.

19

F44748

SPRING WASHER

SPRING Belleville, washer

2шт.

20

495-81148

WASHER,7/16" x 1 1/4" x .134"

flat, 7/16 x 1-1/4 x 1/8 inch

2шт.

21

230-4217

LOCK NUT,7/16"-14, GA

NUT hex, self-locking, 7/16 inch NC

2шт.

22

107949A1

BUSHING

door hinge

8шт.

23

139362A1

BALL JOINT

STUD upper ball, 10 mm - 1.5, cylinder, left-hand door

1шт.

24

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

26

136-155

COTTER PIN,Int, 7/64" x .051"

PIN hair, 7/64 x 3/4 inch, mounts to clevis pin welded to frame

4шт.

27

225059A1

CABLE,280mm L

door, upper

2шт.

*

228689A1

PIN

clevis, welded to cab frame, not shown

4шт.
