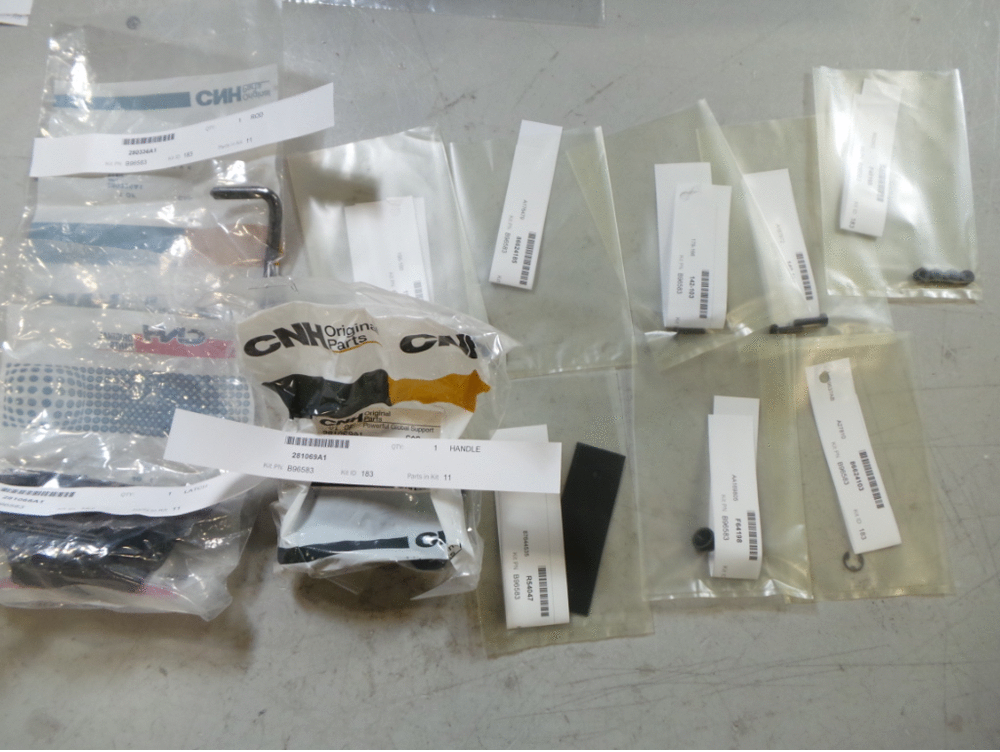

Запчасти Case 580L (9-092[02]) - KIT WINDOW LATCH (09) - CHASSIS/ATTACHMENTS

1

B96583

KIT

Incl 2 - 12

1шт.

2

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

3

86624103

SNAP RING,#X31, .243" Dia, E-Type

1шт.

4

281069A1

HANDLE

1шт.

5

281068A1

HANDLE

1шт.

6

280336A1

STEM

1шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

4шт.

8

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

2шт.

9

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

10

R54047

PAD,30mm OD x 0.76mm Thk

2шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.
