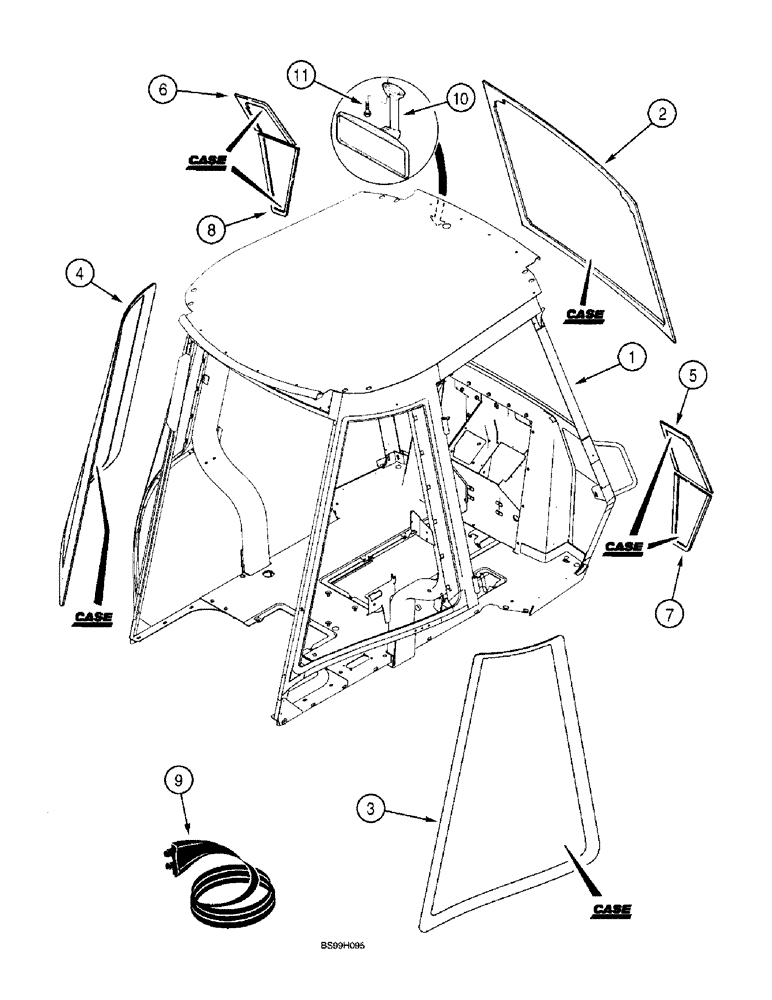

Запчасти Case 580L (9-088) - ROPS CAB AND GLASS (09) - CHASSIS/ATTACHMENTS

1

280995A2

CAB

ASSEMBLY, rops, operators, complete with heat, order from Machinery Price List, 580L, parts list Figure 9-088 thru 9-112

1шт.

1

280996A2

CAB

ASSEMBLY, rops, operators, complete with heat and air conditioning, order from Machinery Price List, 580L, parts list Figure 9-088 thru 9-112

1шт.

1

280997A1

CAB

ASSEMBLY, rops, operators, complete with heat, order from Machinery Price List, 570LXT, not shown, parts list Figure 9-088 thru 9-112

1шт.

1

280998A1

CAB

ASSEMBLY, rops, operators, complete with heat and air conditioning, order from Machinery Price List, 570LXT, not shown, parts list Figure 9-088 thru 9-112

1шт.

2

97290C1

GLASS

front windshield, use 3M Superfast Urethane Auto Glass Sealer

1шт.

3

D126204

GLASS

right-hand rear quarter panel window

1шт.

4

D126205

GLASS

left-hand rear quarter panel window

1шт.

5

107230A1

GLASS

knee, upper, right-hand

1шт.

6

107233A1

GLASS

knee, upper, left-hand

1шт.

7

107232A1

GLASS

knee, lower, right-hand

1шт.

8

107234A1

GLASS

knee, lower, left-hand

1шт.

9

108513A1

SEAL, GLASS,290mm L

290 mm, 11-7/16 inch long, front knee glass

2шт.

10

143369A2

MIRROR ASSY.

MIRROR rear view, interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

self-tapping, Fillister head, No. 10 NC x 1-1/4 inch

2шт.
