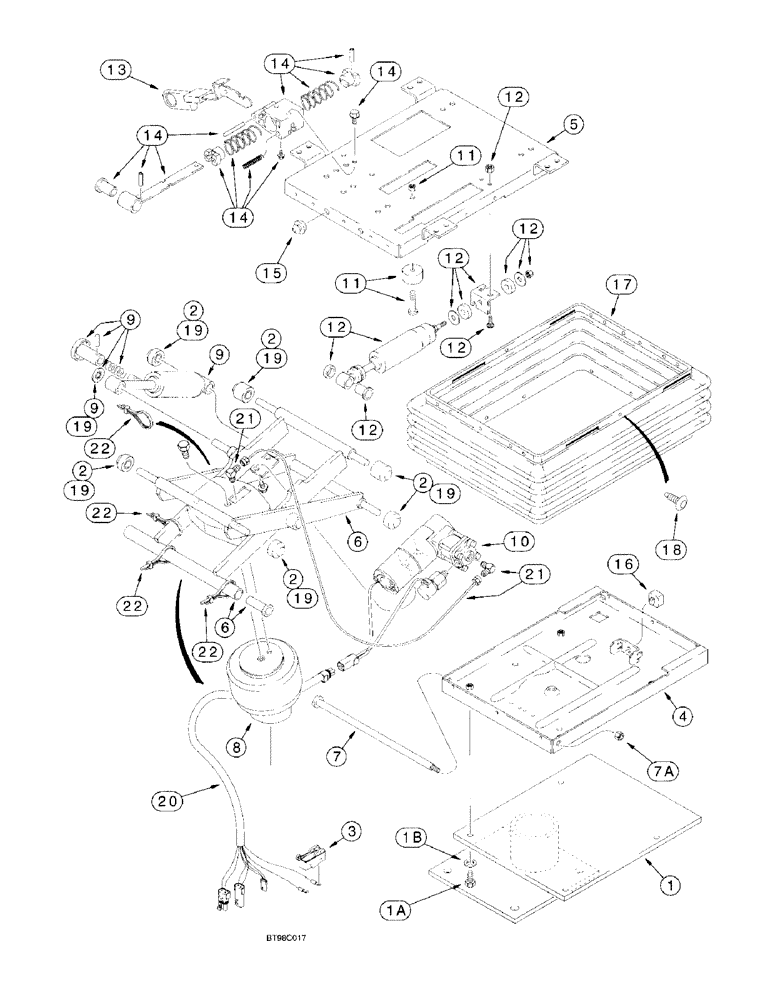

Запчасти Case 580L (9-082) - DELUXE AIR SUSPENSION SEAT, SUSPENSION ASSEMBLY AND PEDESTAL, 580L MODELS (09) - CHASSIS/ATTACHMENTS

275547A1

SEAT ASSY.

SEAT ASSEMBLY air suspension, cloth, deluxe, complete with armrests, continued from previous page, Includes: Ref. 1 through 22, P/N 300685A1, P/N 132864A1 and P/N 340-12520

1шт.

1

300669A1

PEDESTAL

weldment, base

1шт.

1a

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

4шт.

1b

NSS

NOT SOLD SEPARAT

WASHER flat, rear, tether

2шт.

300685A1

KIT

air suspension assembly, includes parts from upper housing plate to lower housing plate, Includes: all Ref. shown except for the boot and pedestal, Ref. 1 and 17, Includes: Ref. 2 through 22, P/N 132864A1

1шт.

2

135512A3

PACKAGE

KIT roller bearing, isolator, Includes: 4 narrow rollers, 2 wide rollers, 1 bushing, 1 spacer and 1 retaining ring, isolator

1шт.

3

D137363

SWITCH

contact, swivel limit

1шт.

4

226560A1

HOUSING

lower, with upper stop bracket

1шт.

5

300688A1

HOUSING

upper

1шт.

6

132862A1

DIPPER

ARM suspension

1шт.

7

143786A1

SHAFT,308.9mm L

bearing

1шт.

7a

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self locking, 3/8 inch NC

1шт.

8

197793A1

SPRING

KIT air spring, Includes: air spring, J-clip and 3 tie straps

1шт.

9

132866A1

SHOCK ABSORBER

KIT shock absorber, Includes: shock, 2 bearings, fastener, actuator arm, roll pin, bracket and retaining ring

1шт.

132864A1

KIT

compressor/valve, Includes: compressor, valve, mount, air line tubing, 2 screws, 2 sleeves and 2 nuts

1шт.

10

300689A1

KIT

compressor and valve

1шт.

300690A1

MOUNTING PARTS

MOUNT compressor

1шт.

11

180593A1

KIT

bumper

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

12

300691A1

SPARE PART SET

KIT fore/aft isolator latch, Includes: shock absorber, 3 nuts, 2 washers, 2 grommets, 1 bearing and 15 Christmas tree clips

1шт.

13

1981850C1

GRIP

KNOB isolator control, fore/aft

1шт.

14

300692A1

SPARE PART SET

KIT fore/aft isolator latch, Includes: latch assembly and 2 screws

1шт.

15

133422A1

BUMPER

rubber

2шт.

16

A45054

BUMPER,Neoprene

seat

1шт.

17

133421A1

PACKAGE

KIT boot, with pins

1шт.

18

132872A1

KIT

- boot pin, package of 23 retainers and 3 dome nuts

1шт.

19

180594A3

KIT

KIT rollers and bearings, Includes: 2 bushings, 6 rollers, 1 push nut, 5 bearings and 2 spacers

1шт.

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

20

300896A1

HARNESS

wire, attaches to cab harness

1шт.

21

1990548C4

KIT

air line and fittings, Includes: 2 elbows, 1 tee, 2 adapters, 3.5 feet nylon tubing, 5 tie straps and 1 J-clip

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

5шт.
