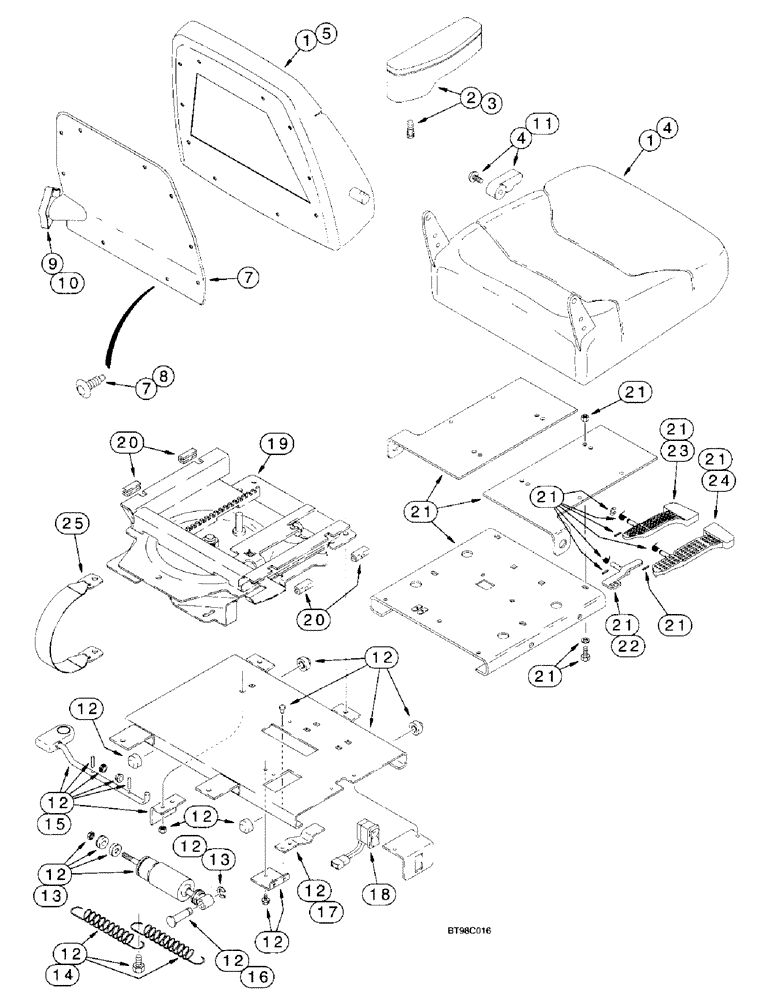

Запчасти Case 580L (9-081) - DELUXE AIR SUSPENSION SEAT, SEAT, SLIDE AND SWIVEL ASSEMBLY, 580L MODELS (09) - CHASSIS/ATTACHMENTS

121414A1

FUSE,20A, Mini, Yellow

mini, 20 ampere, Not shown

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm

4шт.

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

275547A1

SEAT ASSY.

SEAT ASSEMBLY, air suspension, cloth, deluxe, complete with armrests, parts list this Figure and Fig. 9-082, Includes: Ref. 1 through 25

1шт.

1

300657A1

KIT

seat top assembly, without armrests, Includes: seat and backrest cushions, backrest cover and hardware

1шт.

2

300659A1

KIT

armrest, right hand, Includes: armrest knob and shaft, groove pin, pivot stud and screw

1шт.

3

300661A1

KIT

armrest, left hand, Includes: armrest knob and shaft, groove pin, pivot stud and screw

1шт.

4

300662A1

KIT

seat cushion, with frame, Includes: seat frame and cushion, 5 Christmas tree clips, 18 hog rings, 1 screw and recliner handle

1шт.

5

300663A1

KIT

backrest cushion, with frame, Includes: backrest frame and cushion, 23 hog rings, lumbar, 2 screws and 2 Christmas tree clips

1шт.

6

176091A1

PACKAGE,SERVICE

KIT retaining, hog ring, package of 48 rings for cushions, not shown

1шт.

7

300664A1

KIT

backrest cover, cloth, and clips, Includes: Ref. 8

1шт.

8

1999693C1

KIT

CLIP christmas tree, package of 14

1шт.

9

300665A1

KIT

lumbar, Includes: actuator

1шт.

10

300667A1

KNOB

lumbar knob

1шт.

11

1987212C1

PACKAGE

KIT seat cushion back tilt knob, Includes: knob, recliner handle and 1 screw

1шт.

12

300670A1

KIT

lateral isolator assembly, Includes Ref. 13 through 17

1шт.

13

1987219C2

SET OF PARTS

KIT lateral isolator shock, Includes: shock absorber, 1 bearing, 2 bushings, 1 nut, 2 washers, 1 spacer and 1 retaining ring

1шт.

14

1987290C1

SET OF PARTS

KIT spring, lateral isolator, Includes: 2 springs and 1 bolt

1шт.

15

259054A1

SET OF PARTS

KIT lateral isolator control, lock, Includes: latch rod, bracket, 2 bearings, knob and 2 roll pins

1шт.

16

1344025C1

PIVOT PIN

PIN clevis, pivot

1шт.

17

1344026C1

SPRING

latch

1шт.

18

300672A1

SWITCH

rocker, height adjustment

1шт.

300674A1

HARNESS

swivel switch, not shown

1шт.

19

300675A1

KIT

slide/swivel assembly, Includes: Ref. 21

1шт.

20

300680A1

KIT

slide puck, Includes: 2 adjustable slider blocks, 2 stationary slider blocks and 2 set screws

1шт.

21

300677A1

KIT

upper slide plate assembly, Includes: upper slide plate weldment, slide and swivel levers, 3 springs, 3 roll pins, 3 E-rings and slide latch weldment, Includes: Ref. 22, 23, and 24

1шт.

22

300679A1

SLIDE

latch weldment

1шт.

23

300681A1

CONTROL LEVER

LEVER slide control

1шт.

24

300683A1

LEVER

swivel

1шт.

25

300684A1

SAFETY BELT

SAFETY BELT

1шт.
