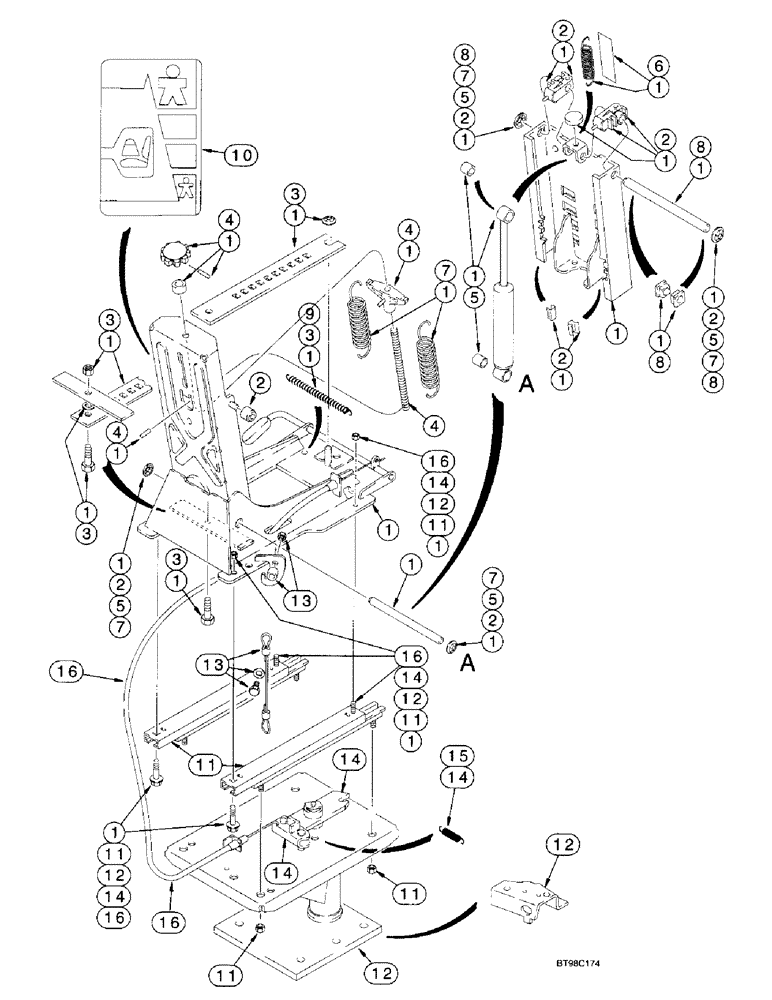

Запчасти Case 580L (9-080) - SUSPENSION SEAT, PEDESTAL, WEIGHT ADJUSTER AND SUSPENSION 580L MODELS (09) - CHASSIS/ATTACHMENTS

258313A1

SEAT

ASSEMBLY, suspension, gray cloth, without armrests, Includes: seat, suspension, pedestal, and weight adjuster on Fig. 9-056 and on this Figure, individual component parts not serviced separately, for service order respective component kits.

1шт.

259071A1

SEAT ASSY.

SEAT ASSEMBLY, suspension, gray vinyl, without armrests, Includes: seat, suspension,pedestal, and weight adjuster on Fig. 9-056 and on this Figure individual component parts not serviced separately, for service order respective component kits

1шт.

Includes: Ref. 1 through 16 and P/N 131-435

1шт.

Does not include armrest per print

1шт.

1

307092A1

KIT

suspension

1шт.

Includes suspension, back angle adjust, 2 groove pins, 1 handle, 8 screws, 2 springs, 3 washers, 1 rivet, 1 spacer, 2 tie straps, 8 christmas tree clips, 12 nuts, 1 height adjust grip, 1 back angle grip, 1 rake grip, 1 fore/aft/swivel grip and 1 decal, Includes: parts from seat frame to adjuster slides, see additional parts on Fig. 9-79, Ref. 8

1шт.

2

176921A1

KIT

plastic components, Includes: 2 rollers, 4 downstops, 2 rollers guides, 2 bearings, 1 bumper, 4 nuts, 10 christmas tree clips, 2 washers and 1 grip, also see additional kit parts on Fig. 9-79, Ref. 9

1шт.

3

116521A1

KIT

fore/aft, adjuster latch, Includes: 1 latch bar, 1 bolt, 1 spacer, 2 nuts, 1 spring and 2 tie straps, Includes: P/N 131-435

1шт.

131-435

PUSH-ON NUT,Push, 3/8"

NUT push on type, 3/8 inch

1шт.

4

176916A1

KIT

weight adjusting, Includes: adjusting knob, 1 spacer, 2 roll pins, 1 shaft, 1 spring, 10 christmass tree clips, 2 washers, 1 grip and 2 tie straps

1шт.

Also includes 10 shroud plastic retainers, 2 washers, and 2 tie straps shown on Fig. 9-056

1шт.

5

176914A1

KIT

suspension damper, Includes: damper, 2 spacers, 4 nuts, 10 christmass tree clips, 2 washers, 1 grip and 2 tie straps

1шт.

Also includes 10 shroud plastic retainers, 2 washers, and 2 tie straps shown on Fig. 9-056

1шт.

6

116547A1

KIT

height adjusting spring, Includes: 10 shroud plastic retainers, 2 washers, 2 springs and 1 wear strip, see additional kit parts on Fig, 9-056, Ref. 10

1шт.

7

176920A1

KIT

main extension springs, suspension, Includes: 2 springs, 4 nuts, 2 washers, 10 christmas tree clips, 1 grip and 2 tie straps

1шт.

Also includes 10 shroud plastic retainers, 2 washers, and 2 tie straps shown on Fig. 9-056

1шт.

8

116551A1

WHEEL BEARING KIT

KIT upper suspension tower shaft, Includes: shaft, 2 bearings, 2 nuts, 10 christmas tree clips and 2 washers

1шт.

9

116545A1

KIT

fore/aft latch spring, Includes: 1 spring and 2 tie straps

1шт.

10

116534A1

KIT

decal, seat weight adjustment, Includes: instructions, included in seat assembly

1шт.

11

116522A2

KIT

fore/aft adjuster slides, Includes: 2 slave adjusters, 4 screws, 8 nuts and 2 tie straps

1шт.

12

116538A2

KIT

pedestal, sheat support, Includes: pedestal assembly, 4 screws, 4 nuts and 119211A1 switch mounting bracket, see Fig. 9-76, Ref. 11 for 119211A1 switch mounting bracket

1шт.

13

116552A1

KIT

cable, Includes: 2 cables, 2 screws, 2 spacers, 2 washers and 2 nuts, Includes: hardware for both ends of cable

1шт.

14

116550A1

KIT

swivel latch bar, pedestal, Includes: 1 latch bar, 1 spring, 1 retaining ring, 4 screws and 4 nuts

1шт.

There is two part number for Ref. 14

1шт.

14

336375A1

KIT

swivel, latch plate, Includes: latch, swivel plate latch, 5 screws, 6 nuts and 2 pins

1шт.

15

116548A1

KIT

swivel latch spring only

1шт.

16

181170A1

KIT

cable, fore/aft/swivel mechanism, Includes: 2 screws, 2 tie straps, cable and 4 nuts

1шт.
