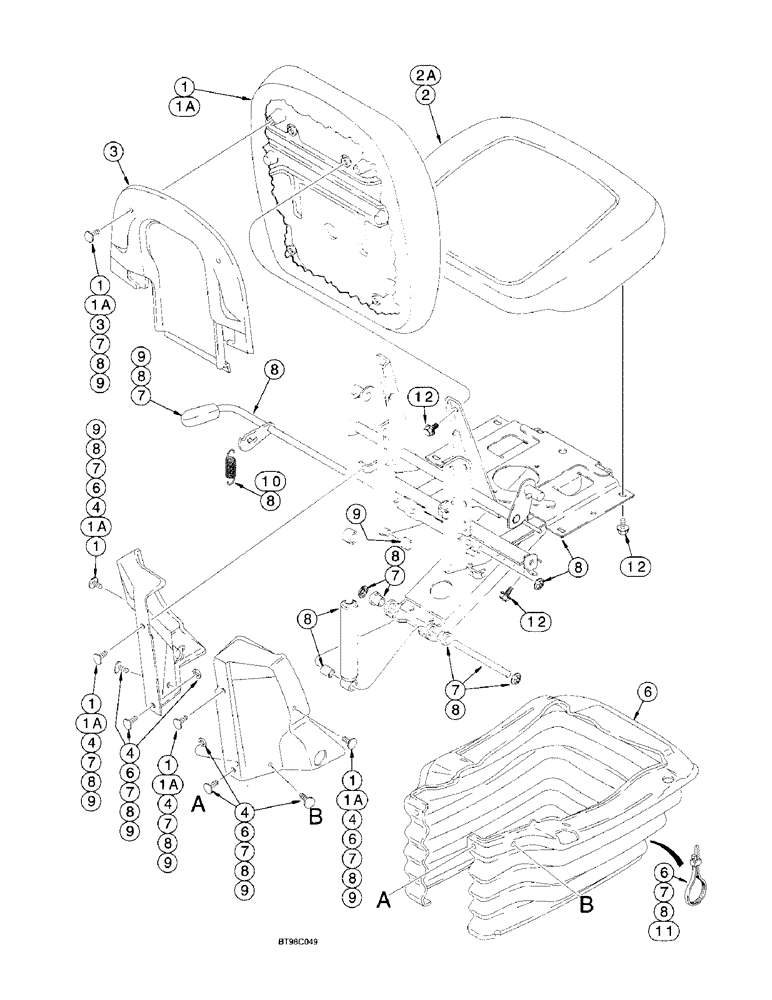

Запчасти Case 580L (9-079) - SUSPENSION SEAT ASSEMBLIES, 580L MODELS (09) - CHASSIS/ATTACHMENTS

258313A1

SEAT

ASSEMBLY, suspension, gray cloth, without armrests, Includes: seat, suspension, pedestal, and weight adjuster on Figure 9-80, individual component parts not serviced separately, for service order respective component kits

1шт.

259071A1

SEAT ASSY.

SEAT ASSEMBLY, suspension, gray vinyl, without armrests, Includes seat, suspension, pedestal, and weight adjuster on Figure 9-80, individual component parts not serviced separately, for service order respective component kits, Includes: Ref. 1 through 11

1шт.

1

307094A1

KIT

backrest cushion, gray cloth, Includes: lumbar knob, 6 Christmas tree clips and 4 screws

1шт.

Ref. 1, 1A, Lumbar knob not offered separately per vendor.

1шт.

1a

307095A1

KIT

backrest cushion, gray vinyl, Includes: lumbar knob, 6 Christmas tree clips and 4 screws

1шт.

Ref. 1, 1A, Lumbar knob not offered separately per vendor.

1шт.

2

307096A1

KIT

seat cushion, gray cloth, Includes: 6 screws

1шт.

2a

307097A1

KIT

seat cushion, gray vinyl, Includes: 6 screws

1шт.

3

307091A1

ASSEMBLY

KIT backrest shroud, Includes: 2 Christmas tree clips

1шт.

4

307090A1

KIT

side shroud, left hand and right hand, Includes: 6 Christmas tree clips, 2 washers, 1 height adjustment grip and 1 back angle grip

1шт.

6

307098A1

KIT

boot, rubber, Includes: 2 ties, 2 washers and 4 Christmas tree clips

1шт.

7

176919A1

KIT

swing arm pivot shaft, Includes: 2 flanged bearings, 4 push nuts, 10 Christmas tree clips, 2 washers, 1 grip and 2 tie straps

1шт.

8

307092A1

KIT

suspension

1шт.

Includes suspension, back angle adjust, 2 groove pins, 1 handle, 8 screws, 2 springs, 3 washers, 1 rivet, 1 spacer, 2 tie straps, 8 Christmas tree clips, 12 nuts, 1 height adjust grip, 1 back angle grip, 1 rake grip, 1, fore/aft/swivel grip and, 1, decal, includes parts from seat frame to adjuster slides, see additional kit parts on Fig. 9-80, Ref. 1

1шт.

9

176921A1

KIT

plastic components, Includes: 2 rollers, 4 downstops, 2 roller guides, 2 bearings, 1 bumper 4, nuts, 10 Christmas tree clips, 2 washers and, 1 grip, also see additional kit parts on Fig. 9-80, Ref. 2

1шт.

10

116547A1

KIT

height adjusting spring, Includes: 10 shroud plastic retainers, 2 washers, 2 springs and 1 wear strip, see additional kit parts on Fig. 9-80, Ref. 6

1шт.

11

181170A1

KIT

cable, fore-aft/swivel mechanism, Includes: 2 screws, 2 tie straps, cable and 4 nuts, see Fig. 9-80 for cable and nuts

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT seat cushion and backrest, 5/16 inch thread, length as needed, purchase locally

8шт.
