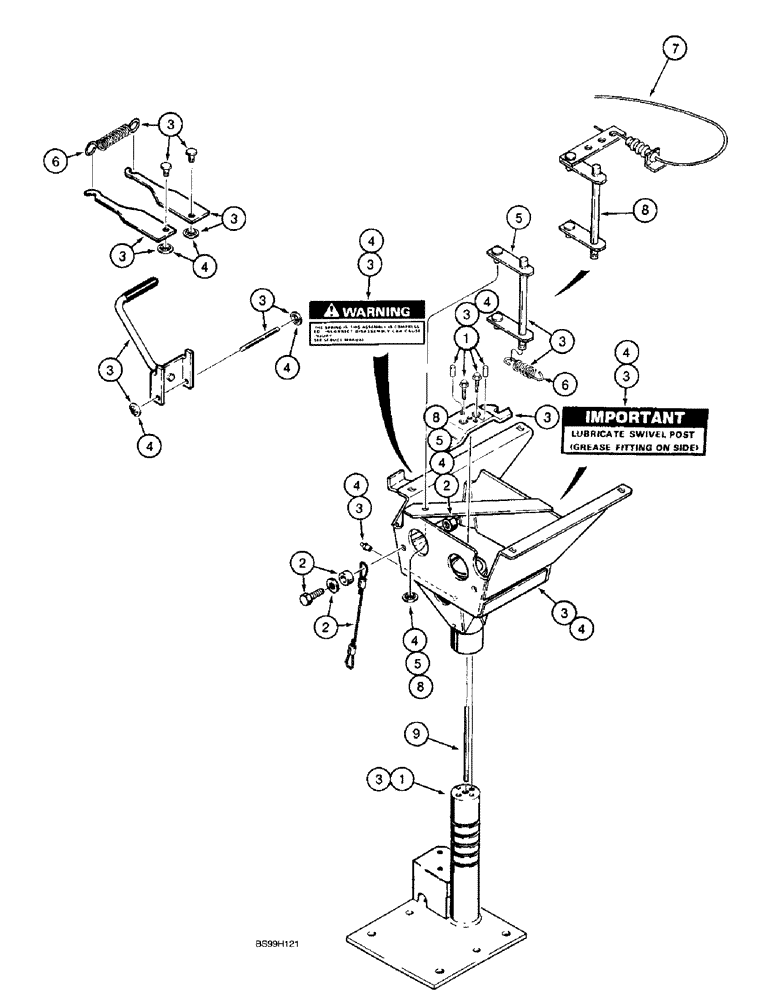

Запчасти Case 580L (9-078) - STANDARD SEAT SUPPORT AND PEDESTAL, 580L MODELS (09) - CHASSIS/ATTACHMENTS

185156A1

SEAT

ASSEMBLY, standard, gray vinyl, Includes seat on Fig. 9-77 and support and pedestal below, individual component parts not serviced separately, for service order espective kits, Includes: Ref. 1 through 9

1шт.

P/N 185156A1 CONSISTS OF THE SEAT/A AND PEDESTAL/A. FOR SEAT/A WHICH CONSISTS OF SHELL, CUSHION, BACKREST AND TRIM ORDER 234223A1. FOR PEDESTAL/A ORDER 116764A2. THIS PER THE NOTES IN 3270.

1шт.

1

116761A2

KIT

support, base

1шт.

Also includes: 4, lock nuts for seat adjuster slide on Fig. 9-77.

1шт.

2

116763A1

KIT

cable, anchor, Includes: hardware for both ends of cable

1шт.

3

116764A2

KIT

pedestal, Includes: 219-16 grease fitting

1шт.

Also includes: 4, lock nuts for seat adjuster slide on Fig. 9-77.

1шт.

4

116766A2

KIT

pedestal box, Includes: 219-16 grease fitting

1шт.

Also includes: 4, lock nuts for seat adjuster slide on Fig. 9-77.

1шт.

5

116767A1

KIT

swivel latch, Includes: 6, lock nuts, 1, push nut and, 1, swivel latch, if used

1шт.

Also includes: 4, lock nuts for seat adjuster slide on Fig. 9-77.

1шт.

6

119171A1

KIT

spring

1шт.

7

181169A1

KIT

cable, fore-aft/swivel mechanism, also Includes: 4, nuts on Fig. 9-77

1шт.

8

253209A1

KIT

swivel latch, Includes: 4, lock nuts, 1, rivet, 1, spacer, 1, washer, 1, push nut and, 1, swivel latch, if used

1шт.

9

NSS

NOT SOLD SEPARAT

PIN seat

1шт.
