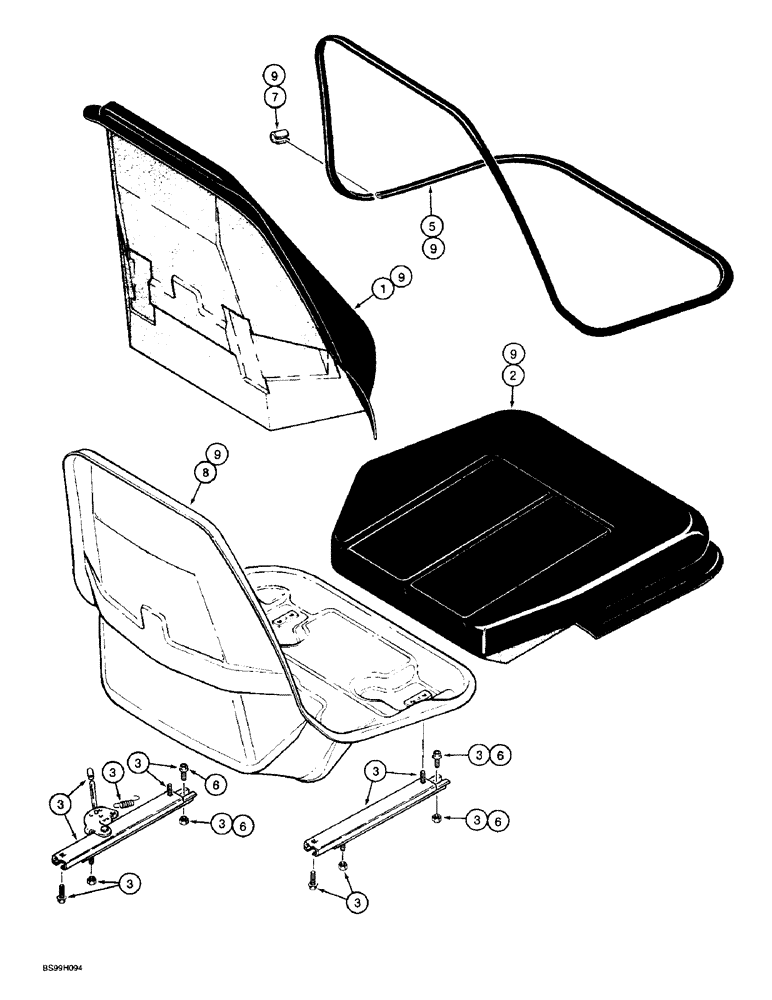

Запчасти Case 580L (9-077) - STANDARD SEAT ASSEMBLY, 580L MODELS (09) - CHASSIS/ATTACHMENTS

185156A1

SEAT

ASSEMBLY, standard, gray vinyl, Includes: seat on Fig. 9-77 and support and pedestal below, individual component parts not serviced separately, for service order espective kits, Includes: Ref. 1 through 9

1шт.

P/N 185156A1 CONSISTS OF THE SEAT/A AND PEDESTAL/A. FOR SEAT/A WHICH CONSISTS OF SHELL, CUSHION, BACKREST AND TRIM ORDER 234223A1. FOR PEDESTAL/A ORDER 116764A2. THIS PER THE NOTES IN 3270.

1шт.

1

176926A1

KIT

backrest cushion, gray

1шт.

2

176925A1

KIT

seat cushion, gray

1шт.

3

116760A1

KIT

adjuster, seat slide, before, fore/aft

1шт.

5

176924A1

SET OF PARTS

TRIM edging, gray, Serial Range: cushion-shell

1шт.

6

181169A1

KIT

cable, fore-aft/swivel mechanism, also includes cable on Figure 9-78

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, see below

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL seat frame, order 234223A1 shell, cushion and trim kit, Ref. 9

1шт.

9

234223A1

SEAT

KIT seat shell, cushion and trim, Includes: Ref. 1, 2, 5 and 8

1шт.

N7802

CLIP

KIT clip, Includes: Ref. 7 clip above, plus 6 additional narrow clips

1шт.
