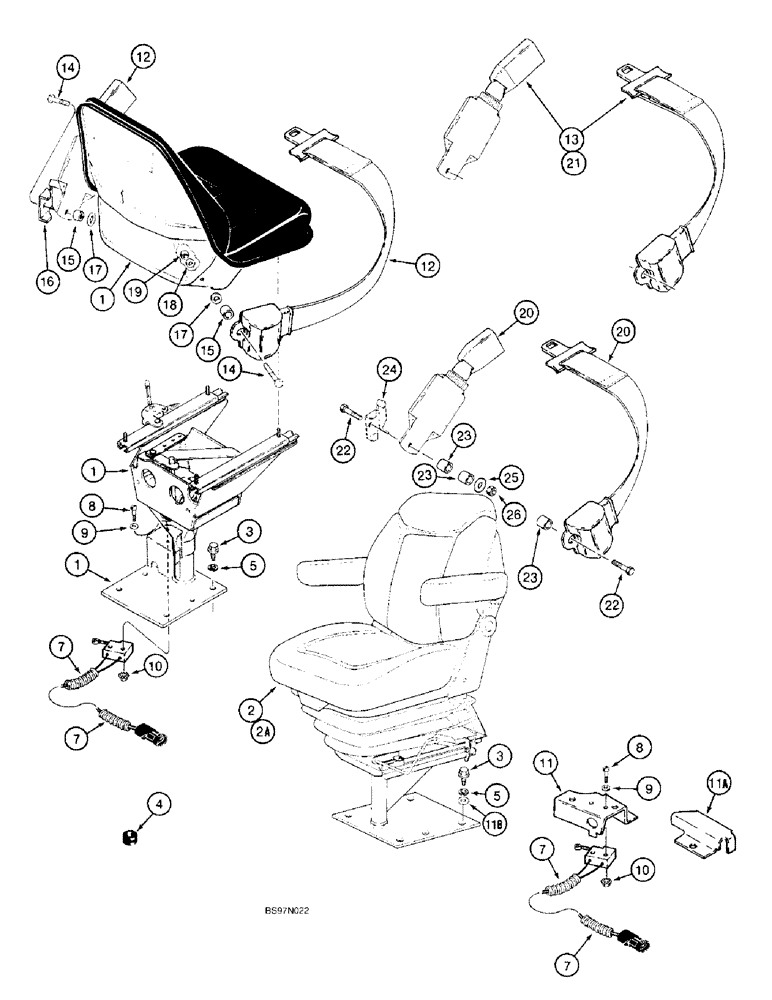

Запчасти Case 580L (9-076) - SEATS AND MOUNTING PARTS, 580L MODELS (09) - CHASSIS/ATTACHMENTS

1

185156A1

SEAT

ASSEMBLY, standard, gray vinyl, without armrests, Includes: seat, pedestal, and support, see Figure 9-055 for seat and Figure 9-056 for support and pedestal

1шт.

REF. 1, 185156A1 CONSISTS OF THE SEAT/A AND PEDESTAL/A. FOR SEAT/A WHICH CONSISTS OF SHELL, CUSHION, BACKREST AND TRIM ORDER 234223A1. FOR PEDESTAL/A ORDER 116764A2. THIS PER THE NOTES IN 3270.

1шт.

275547A1

SEAT ASSY.

SEAT ASSEMBLY, air suspension, cloth, deluxe, complete, Includes: armrests, see Figure 9-057 and Figure 9-058

1шт.

293021A1

SEAT

ASSEMBLY, suspension, gray cloth, complete, Includes: armrests and mounting hardware, Ref. 3-11 and 11B, without seat belts and hardware, Includes: Ref. 2

1шт.

2

258313A1

SEAT

ASSEMBLY, suspension, gray cloth, Includes: seat, suspension and pedestal, without armrests, see Figure 9-055 - 9-057

1шт.

The grip in front of the seat by Ref. 2 and 2A is called a rake and to get it you must order 307092a1

1шт.

293022A1

SEAT

ASSEMBLY, suspension, gray vinyl, complete, Includes: armrests and mounting hardware, Ref. 3-11 and 11B. without seat belts, Includes: Ref. 2A, P/N 292262A1 and P/N 292263A1 Includes Ref. 2A

1шт.

2a

259071A1

SEAT ASSY.

SEAT ASSEMBLY, suspension, gray vinyl, includes seat, suspension and pedestal, without armrests, see Figure 9-055 - 9-056

1шт.

The grip in front of the seat by Ref. 2 and 2A is called a rake and to get it you must order 307092A1

1шт.

292262A1

ARMREST ASSY.

KIT left hand armrests, included in 293021A1 or 293022A1 complete seat assembly, component parts not serviced seperately

1шт.

292263A1

ARMREST ASSY.

KIT right hand armrest, included in 293021A1 or 293022A1 complete seat assembly, component parts not serviced separately

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

hex, full threads, standard or suspension seat, 12 - 1.75 x 40 mm

4шт.

3

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, Deluxe air suspension seat

4шт.

4

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

wire, standard or suspension seat

1шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

7

118769A1

SWITCH

limit, with harness, attaches to side console harness

1шт.

8

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

machine, pan head slotted, No. 6 x 1-1/4 inch

2шт.

9

495-31016

WASHER,#6

2шт.

10

193-1003

NUT,Keps, w/LW,#6-32

hex, with external tooth lock washer, No. 6 NC

2шт.

11

119211A1

BRACKET

switch mounting, suspension seat only

1шт.

11a

186351A1

GUARD

BRACKET harness guard, seat swivel

1шт.

11b

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

At Switch Bracket Mounting M13.5 x 24.5 x 3, HT

1шт.

12

D150377

SAFETY BELT ,2.00" W

Seat belt mounting standard seat, If used 2.00" W

1шт.

13

R58418

SAFETY BELT ,3.00" W

Retractable, If used, Seat belt mounting, Standard seat 3.00" W

1шт.

14

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

hex, 7/16 NF x 1-1/2 inch, seat belt mounting standard seat

2шт.

15

D150391

SPACER

belt, seat belt mounting standard seat

2шт.

16

D150392

BRACKET

left hand belt, outer, seat belt mounting standard seat

1шт.

17

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 3/64 inch, not used on deluxe air seat, seat belt mounting standard seat

2шт.

18

496-81010

WASHER

flat, 15/32 x 1 x 7/64 inch, hardened, seat belt mounting standard seat

4шт.

19

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, , Seat belt mounting standard seat 7/16"-20, GC

2шт.

20

D150377

SAFETY BELT ,2.00" W

If used, Seat belt mounting suspension seat 2.00" W

1шт.

Part is also used with the deluxe air suspension seat.

1шт.

21

R58418

SAFETY BELT ,3.00" W

Retractable, If used, Seat belt mounting, Suspension seat 3.00" W

1шт.

Part is also used with the deluxe air suspension seat.

1шт.

22

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

hex, 7/16 NF x 1-1/2 inch, seat belt mounting suspension seat

2шт.

Part is also used with the deluxe air suspension seat.

1шт.

23

D150391

SPACER

belt, seat belt mounting suspension seat

2шт.

Part is also used with the deluxe air suspension seat.

1шт.

24

D150392

BRACKET

left hand belt, outer, seat belt mounting suspension seat

1шт.

Part is also used with the deluxe air suspension seat.

1шт.

25

496-81010

WASHER

flat, 15/32 x 1 x 7/64 inch, hardened, seat belt mounting suspension seat

2шт.

Part is also used with the deluxe air suspension seat.

1шт.

26

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, , Seat belt mounting suspension seat 7/16"-20, GC

2шт.

Part is also used with the deluxe air suspension seat.

1шт.
