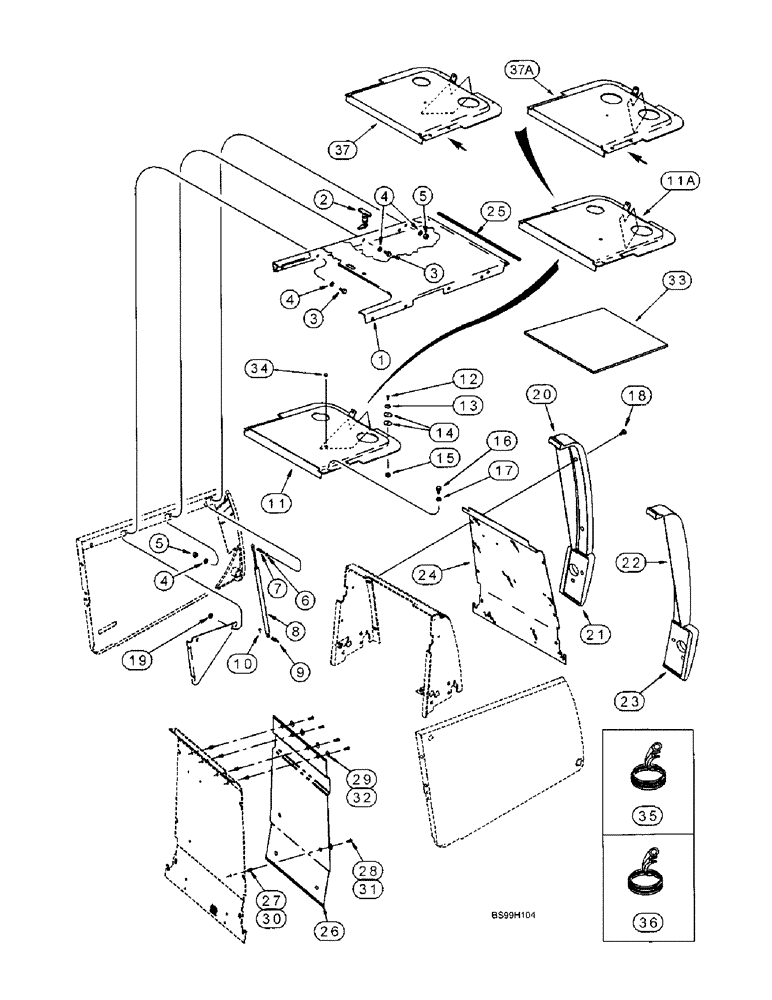

Запчасти Case 580L (9-070) - TILT HOOD, UPRIGHT COVER, GRILLE UNIT AND CHAFF SCREEN (09) - CHASSIS/ATTACHMENTS

1

139486A2

HOOD

engine, tilt

1шт.

2

175599A1

LATCH

hood

1шт.

3

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

10шт.

7

139362A1

BALL JOINT

STUD upper ball, 10 mm - 1.5, no longer used, order 139363A1 stud, Ref. 9

2шт.

8

114980A1

GAS STRUT

Cylinder spring, Counterbalance, Hood

2шт.

9

139363A1

BALL JOINT,M10 x 1.5mm x 42mm L

STUD lower ball

2-4шт.

10

F44883

CLIP,DIN 71805 - S10

RETAINER lock, ball stud retainer

4шт.

11

292784A1

HOOD ASSY.

COVER chassis upright, without turbocharged engine, if used

1шт.

11a

292785A2

HOOD ASSY.

COVER chassis upright, with turbocharged engine, if used

1шт.

12

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

13

109879A1

SPACER,5.5mm ID x 30mm OD

plastic, hood spacer

2шт.

14

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

WASHER spacer

4шт.

15

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

16

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used Hex, M10 x 25, 8.8, Full Thd

4шт.

16

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

If used, used on models with J-nuts on chassis uprights Hex, M10 x 35, 8.8, Full Thd

4шт.

18

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

8шт.

19

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

hex flange, 10 mm - 1.5

4шт.

20

139502A1

PROTECTOR

BUMPER grille, left hand upper

1шт.

21

244287A1

PROTECTOR

BUMPER grille, left hand lower

1шт.

22

139500A1

PROTECTOR

BUMPER grille, right hand upper

1шт.

23

244286A1

PROTECTOR

BUMPER grille, right hand lower

1шт.

24

229398A2

SIEVE

GRILLE radiator shroud, see Figure 9-112 for Case emblem

1шт.

25

233262A1

SEALING STRIP,20mm W x 596mm L x 6mm Thk

foam, adhesive backed, with or without air conditioning, if used, 20, 25/32 x 596, 23-15/32 x 6 mm, 1/4 inch

1шт.

26

253889A1

SCREEN

chaff

1шт.

27

255447A1

THREADED INSERT

INSERT, THREADED, 1/4", if used

10шт.

28

257381A1

BOLT

BOLT hex, 1/4 NC x 3/4 inch, if used

8шт.

29

257382A1

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

flat, 1/4 inch, if used

8шт.

30

255687A1

RIVET

INSERT threaded, No. 10, if used

10шт.

31

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

If used Cross Pan Hd, #10-24 x 3/4"

8шт.

32

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

WASHER spacer, flat, No. 10, if used

8шт.

33

187389A1

LARGE PLATE

PANEL noise reduction, insulation

1шт.

34

353-402

PLUG,Dome, .375" hole, Nylon

Models without windshield washer, If used Dome, .375" hole, Nylon

1шт.

35

234923A1

PROTECTOR

TRIM 150 mm, 5-29/32 inch long, hood, if used

2шт.

36

246228A1

TRIM,1040mm L

TRIM - 1040 mm, 41 inch long, hood, if used

2шт.

37

329993A1

HOOD ASSY.

COVER chassis upright, without turbocharged engine, if used

1шт.

37a

329994A1

HOOD ASSY.

COVER chassis upright, with turbocharged engine, if used

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

14шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

4шт.
