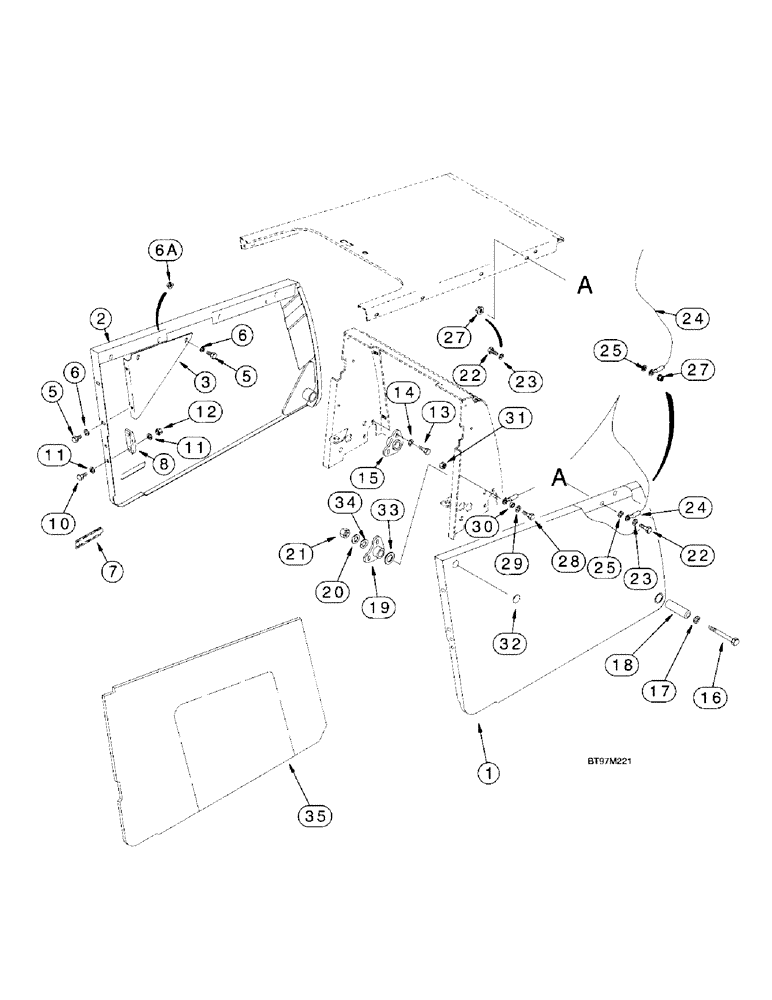

Запчасти Case 580L (9-069) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

359425A1

PANEL, SIDE

PANEL engine, right hand side, not shown, see Ref. 2 for notch area, Replaces: 195975A2

1шт.

2

359426A1

PANEL, SIDE

PANEL engine, left hand side, Replaces: 195976A2

1шт.

3

139492A1

LARGE PLATE

BRACE side panel, left hand

1шт.

4

139490A1

LARGE PLATE

BRACE side panel, right hand, not shown

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

6a

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

hex flange, 10 mm - 1.5

4шт.

7

183168A1

HANDLE

side panel, left hand

1шт.

8

D143715

SUPPORT

BRACKET side panel, left hand

1шт.

9

D143714

SUPPORT

BRACKET side panel, right hand, not shown

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

4шт.

13

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

4шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

15

139835A1

PIVOT

PLATE pivot, left hand, 22 mm long tube, no longer available, order 310843A1 plate

1шт.

15

310843A1

PIVOT

PLATE pivot, left hand, self lubricating, 25 mm long tube

1шт.

16

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

- hex, 12 - 1.75 x 110 mm, 8.8, used with 140428A1 tube

2шт.

16

814-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

hex, 12 - 1.75 x 120 mm, used with 299249A1 tube

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, hardened, 13.5 x 28 x 4 mm, Replaces: 895-15012 washer used on some models

2шт.

18

140428A1

TUBE,14.3 mm ID, 25.4 mm OD, 87 mm Length

pivot, 14.3 x 25.4 x 87 mm long, no longer available, order 299249A1 tube

2шт.

18

299249A1

TUBE,13.5 mm ID, 25.36 mm OD, 90 mm Length

pivot, self lubricating, 13.5 x 25.3 x 90 mm long

2шт.

19

139834A1

PIVOT

PLATE pivot, right hand, 22 mm long tube, no longer available, order 310842A1 plate

1шт.

19

310842A1

PIVOT

PLATE pivot, right hand, self lubricating, 25 mm long tube

1шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, hardened, 13.5 x 28 x 4 mm, Replaces: 895-15012 washer used on some models

2шт.

21

829-1412

NUT,M12, Cl 10.9

hex, 12 mm - 1.75, class 10

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

24

144908A1

CABLE

hood retaining

1шт.

25

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

cable, 10 ID x 16 OD x 6 mm long

1шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

hex flange, 10 mm - 1.5

1шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

30

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

cable, 10 ID x 16 OD x 6 mm long

1шт.

32

D140267

PLUG,30.16mm OD

side panel

2шт.

33

495-11106

WASHER,1", SAE

flat, 1-1/16 x 2 x 1/8 inch, Used with 139834A1 or 139835A1 plate

2шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Used with 139834A1 or 139835A1 plate M13.5 x 24.5 x 3, HT

2шт.

35

297836A1

LARGE PLATE

PANEL noise reduction, insulation, right hand side

1шт.

36

297837A1

LARGE PLATE

PANEL noise reduction, insulation, left hand side, not shown

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

8шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

8шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 20 x 2 mm

1шт.
