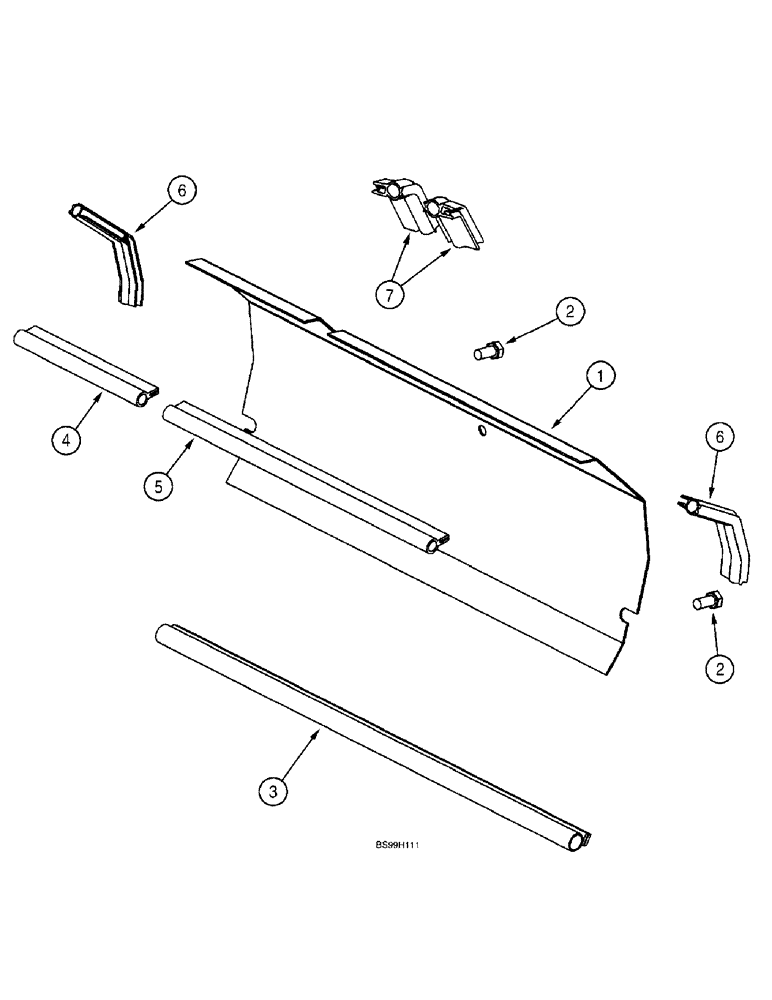

Запчасти Case 580L (9-068) - BAFFLE PLATE AND SEALS USED WITH FUEL COOLER WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

362006A1

PLATE

baffle

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

3

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm, 22-1/2 inch long

1шт.

4

246063A1

SEAL

TRIM edge, 170 mm, 6-11/16 inch long, cut from 233749A1 bulk trim

1шт.

5

246064A1

SEAL

TRIM edge, 365 mm, 14-3/8 inch long, cut from 233749A1 bulk trim

1шт.

6

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

7

363403A1

SEAL

TRIM edge, 57 mm, 2-1/4 inch long

2шт.

233749A1

SEAL

TRIM edge, bulk, 76200 mm, 3000 inch or 250 feet long

1шт.

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm, 35-7/16 inch long

1шт.
