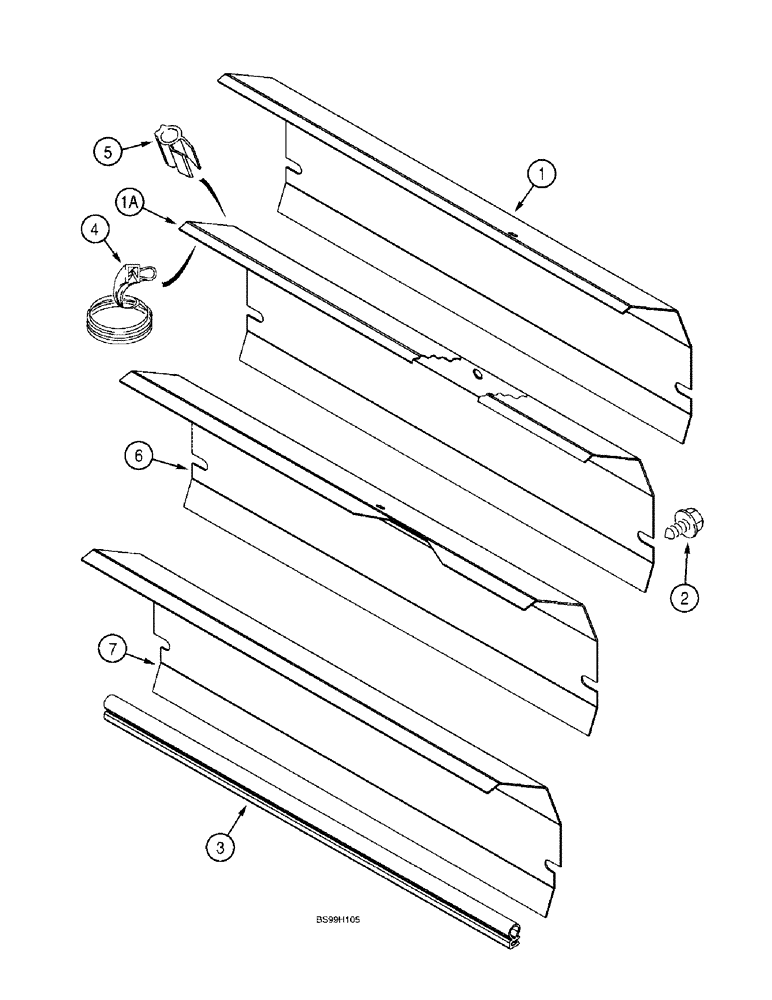

Запчасти Case 580L (9-066) - BAFFLE PLATE AND SEALS WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

241172A1

LARGE PLATE

PLATE baffle, standard radiator, no longer available, order 241172A3 plate

1шт.

1a

241172A3

BAFFLE

PLATE baffle, standard radiator, horn mounting hole relocated, Replaces: 241172A2 plate, if used

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

3

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm, 22-1/2 inch long

1шт.

4

277664A1

SEAL,575mm L

TRIM edge, 575 mm, 22-5/8 inch long

1шт.

5

185493A1

SEAL

TRIM edge, 160 mm, 6-5/16 inch long, cut from 137315A1 bulk trim

2шт.

6

277502A3

BAFFLE

PLATE baffle, heavy duty, Replaces: 277502A1 and 277502A2, no longer available, order 362007A1 plate

1шт.

7

362007A1

PLATE

baffle, heavy duty, Replaces: 241172A3 plate used on some models, Replaces: 346970A1 standard and 346971A1 heavy duty plate, if used

1шт.

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm, 35-7/16 inch long

1шт.
