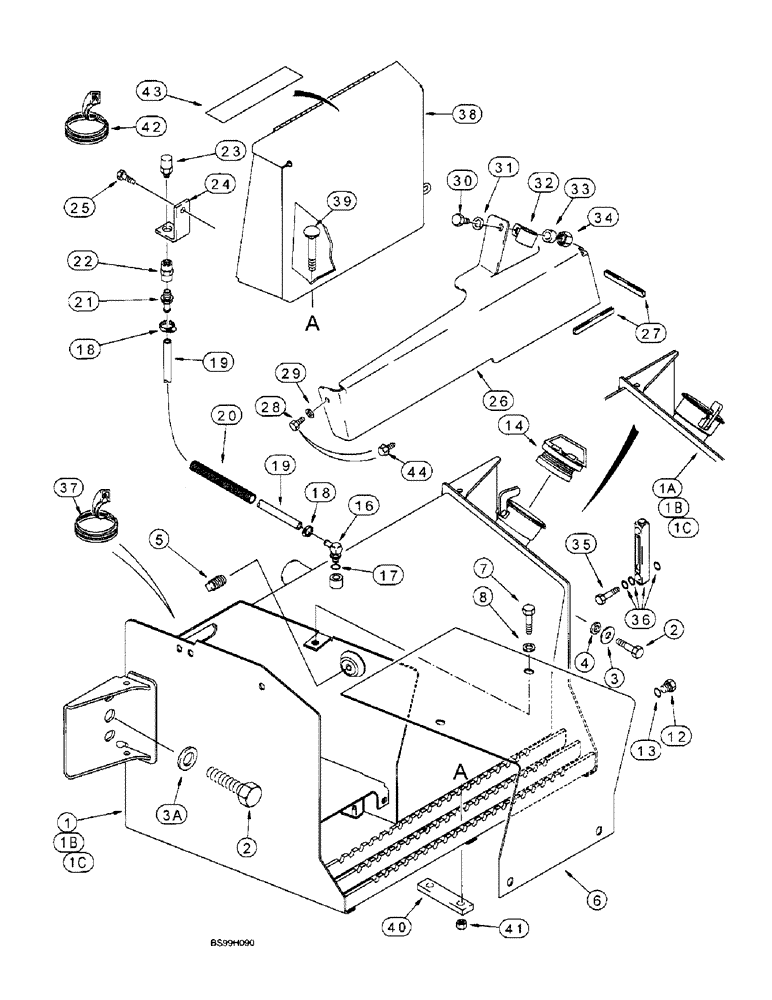

Запчасти Case 580L (9-063) - BATTERY BOX, HYDRAULIC OIL TANK, AND RIGHT-HAND STEP (09) - CHASSIS/ATTACHMENTS

1

283325A3

TANK

hydraulic oil, right hand side of chassis, no longer available, order 283325A4 tank, Includes: Ref. 1A, 1B, and 12

1шт.

1a

283325A4

TANK, HYDRAULIC OIL

TANK hydraulic oil, right hand side of chassis, Includes: Ref. 1B, 1C and 12

1шт.

1b

230857A1

FILTER SCREEN

SCREEN strainer, fill tube

1шт.

1c

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, pan Phillips, No. 6 NC x 3/8 inch

1шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm, class 10.9

1шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

flat, hardened, special, right hand side of tank

1шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, left hand side of tank, 22 x 37 x 4 mm

1шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

bushing, right hand side of tank

1шт.

5

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket headless, 3/8 inch PT, if used

1шт.

6

231656A1

COVER

battery, 3 mm thick

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

8

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

12

86625138

PLUG,7/18" - 14

Drain, Included in 283325A3 and 283325A4 tank, Includes: Ref. 13 Hex Soc, 7/8"-14 ORB

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

138595A1

FILLER CAP,Male, Lockable

CAP hydraulic oil tank, non-vented

1шт.

16

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

ELBOW 90 degree, 3/8 stem end x 18-9/16 inch adj. O-ring boss, Includes: Ref. 17

1шт.

18

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

2шт.

19

143218A1

HYDRAULIC HOSE

HOSE vent 735 mm, 28-15/16 inch long

1шт.

20

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

GUARD hose sleeve

1шт.

21

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

ADAPTER straight, 3/8 inch stem end x PT

1шт.

22

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

COUPLING pipe, 3/8 inch

1шт.

23

120943A1

STRAINER ASSY.

BREATHER pressure vacuum, hydraulic oil tank

1шт.

24

122603A1

SUPPORT

BRACKET breather mounting

1шт.

25

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

1шт.

26

188008A3

COVER

right hand loader lift frame tubing, mounted above hydraulic oil tank, Replaces: 188008Ad cover

1шт.

27

191047A1

MOLDING

TRIM edge, 315 mm, 12-13/32 inch long

1шт.

Apply 75 mm, 3 inch, of trim to front lower edge and 240 mm, 9-7/16 inch, of trim to outside lower edge of cover.

1шт.

28

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

1шт.

30

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

hex, 10 - 1.5 x 45 mm

1шт.

31

892-11010

LOCK WASHER,M10

1шт.

32

D138055

CLAMP

tube

1шт.

33

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

clamp

1шт.

35

B17576

GASKET MAKER FLUID

SEALANT gasket, RTV No. 595, clear, 300 ml tube

1шт.

36

226456A1

LEVEL GAUGE

GAUGE, LEVEL, Assy, Sight, Hydraulic oil, Full/cold lettering, Aluminum; Incl. (2) Hollow Head Bolts and (4) 238-6114 O-Rings, Used with Ref. 35 sealant

1шт.

37

D40442

MOLDING

TRIM edge, 305 mm, 12 inch long, cut from F42827 bulk trim

1шт.

38

284223A1

BOX, TOOL

BOX tool

1шт.

39

811-10070

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 70mm, Cl 8.8

BOLT carriage, 10 - 1.5 x 70 mm

4шт.

40

280164A1

LARGE PLATE

PLATE mounting

2шт.

41

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

1шт.

42

D40442

MOLDING

TRIM edge, 305 mm, 12 inch long, cut from F42827 bulk trim

1шт.

43

D55216

PAD,2" x 9"

PAD anti-skid, 2 x 9 inch

1шт.

44

307577A1

BOLT

hex washer, self aligning, 8 - 1.25 x 20 mm

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm, 116 inch long

1шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
