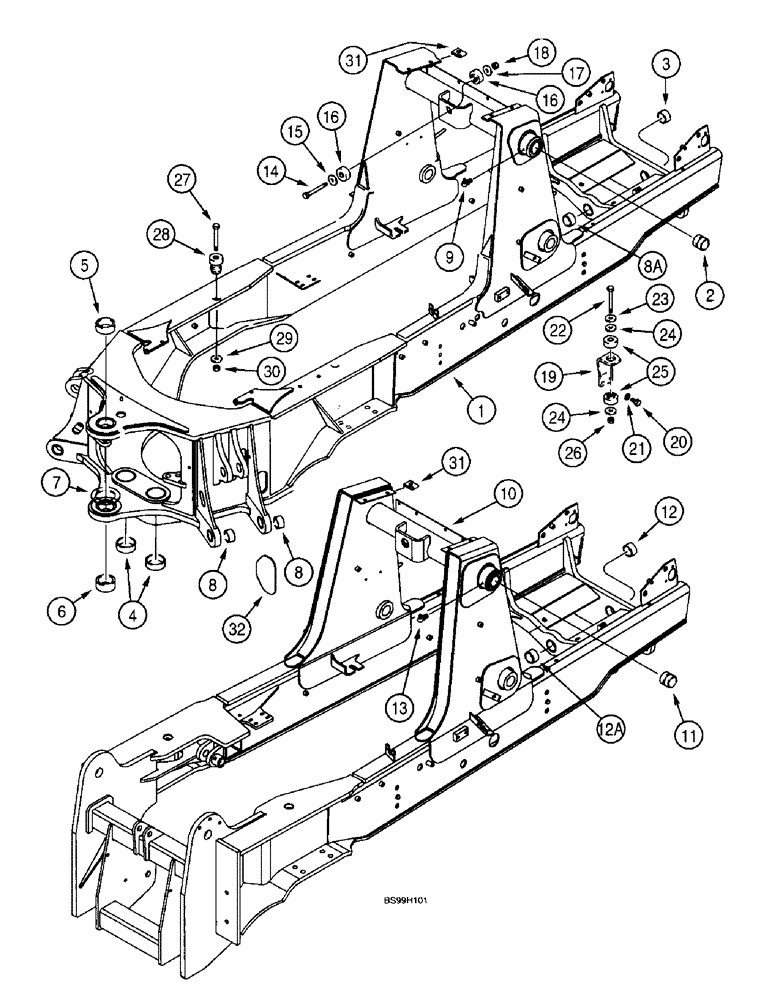

Запчасти Case 580L (9-062) - CHASSIS AND OPERATOR COMPARTMENT POD MOUNTS (09) - CHASSIS/ATTACHMENTS

1

333597A1

CHASSIS

loader backhoe, integral, 580L chassis, used in production, for service order 374580A1 chassis kit, which includes chassis and decals, Includes: Ref. 2-8A

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

loader frame pivot, 580L chassis

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot, 580L chassis

1шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

swing cylinder pivot, 580L chassis, 80 mm ID, 80 x 90 x 29.3

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

upper, backhoe frame, swing tower mounting, 580L chassis, 70 mm ID

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

lower, backhoe frame, swing tower mounting, 580L chassis, 70 mm ID

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

580L chassis, 93 x 135 x 5 mm

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

lower, side, backhoe frame, at stabilizer leg mounting, 580L chassis

4шт.

8a

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

580L chassis, 50 x 60 x 25.5 mm long

1шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Loader frame pivot, 580L chassis 90º, 1/8" NPT x .84" lg

2шт.

10

333596A1

CHASSIS

loader landscaper, 570LXT chassis, used in production, for service order 374605A1 chassis kit, which includes chassis and decals, Includes: Ref. 11-12A

1шт.

11

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

loader frame pivot, 570LXT chassis

2шт.

12

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot, 570LXT chassis, 50 x 60 x 30 mm

1шт.

12a

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

570LXT chassis, 50 x 60 x 25.5 mm long

1шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , 570LXT chassis 90º, 1/8" NPT x .84" lg

2шт.

14

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16 - 2.0 x 110 mm, class 10.9, Operator compartment pod mounts

1шт.

15

495-81259

WASHER,21/32" x 2" x .238"

flat, operator compartment pod mounts, 21/32 x 2 x 1/4 inch

1шт.

16

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, upper, firewall, operator compartment pod mounts

2шт.

17

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

1шт.

18

829-1416

NUT,M16, Cl 10

hex, operator compartment pod mounts, 16 mm - 2.0, class 10

1шт.

19

141249A1

SUPPORT

BRACKET mounting, frame, right hand and left hand, operator compartment pod mounts

2шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd, Operator compartment pod mounts Hex, M12 x 30, 10.9

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Operator Compartment Pod Mounts M13.5 x 24.5 x 3, HT

4шт.

22

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16 - 2.0 x 110 mm, class 10.9, Operator compartment pod mounts

2шт.

23

495-81259

WASHER,21/32" x 2" x .238"

flat, operator compartment pod mounts, 21/32 x 2 x 1/4 inch

2шт.

24

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

4шт.

25

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, lower, front, operator compartment pod mounts

4шт.

26

829-1416

NUT,M16, Cl 10

hex, operator compartment pod mounts, 16 mm - 2.0, class 10

2шт.

27

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

BOLT special, operator compartment pod mounts

2шт.

28

A141451

SHOCK ABSORBER

MOUNT rubber, frame, rear, operator compartment pod mounts

2шт.

29

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

2шт.

30

829-1416

NUT,M16, Cl 10

hex, operator compartment pod mounts, 16 mm - 2.0, class 10

2шт.

31

833-40310

NUT,M10, U

- U-type, operator compartment pod mounts, 10 mm - 1.5

4шт.

32

341087A1

COVER

KIT D-Plate hole cover, operator compartment pod mounts, Includes: two plates and instructions which are not serviced separately, holes are near the rear wheels

1шт.
