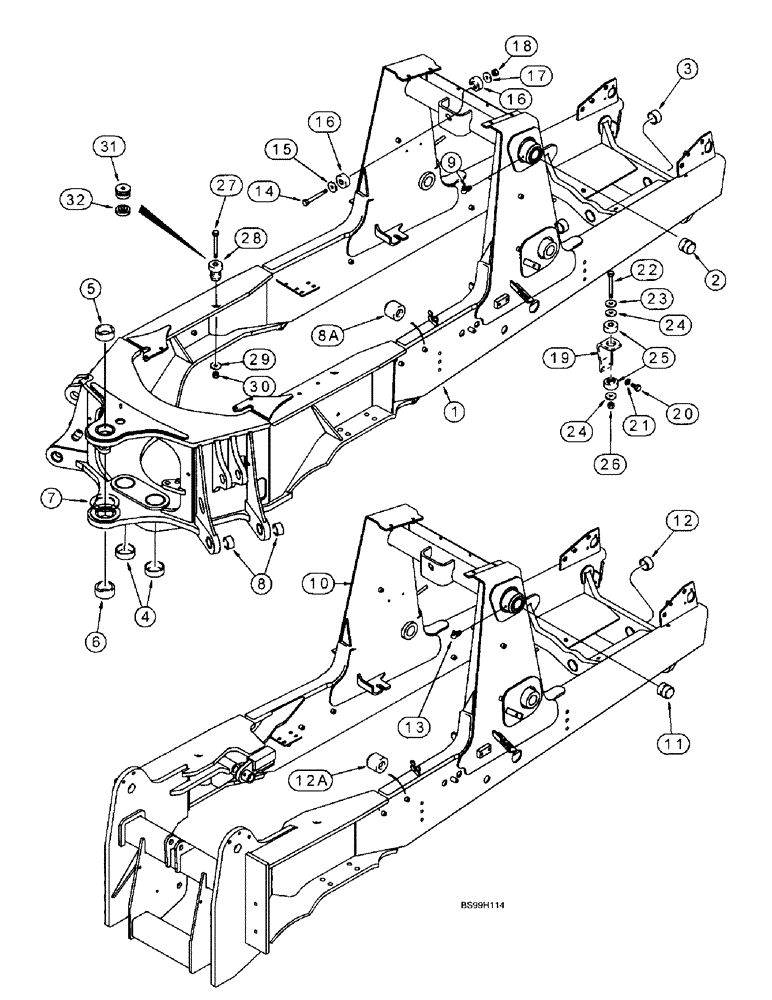

Запчасти Case 580L (9-061) - CHASSIS AND OPERATOR COMPARTMENT POD MOUNTS (09) - CHASSIS/ATTACHMENTS

1

299395A1

CHASSIS

loader backhoe, integral, 580L chassis, no longer available, order 374580A1 chassis service kit, which replaces 333597A1 chassis used in production, Includes: Ref. 2-8A

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

loader frame pivot, 580L chassis

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot, 580L chassis

2шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

swing cylinder pivot, 580L chassis, 80 mm ID, 80 x 90 x 29.3, Replaces: 192559A1 80 ID x 90 x 30.8 mm bushing used on some models

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

upper, backhoe frame, swing tower mounting, 580L chassis, 70 mm ID

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

lower, backhoe frame, swing tower mounting, 580L chassis, 70 mm ID

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

580L chassis, 93 x 135 x 5 mm

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

lower, side, backhoe frame, at stabilizer leg mounting, 580L chassis

4шт.

8a

185356A1

BOSS

welded to chassis frame, 580L chassis, 10 mm

7шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Loader frame pivot, 580L chassis 90º, 1/8" NPT x .84" lg

2шт.

10

299396A1

CHASSIS

loader landscaper, 570LXT chassis, no longer available, order 374605A1 chassis service kit, which replaces 333596A1 chassis used in production, Includes: Ref. 11-12A

1шт.

11

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

loader frame pivot, 570LXT chassis

2шт.

12

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot, 570LXT chassis

2шт.

12a

185356A1

BOSS

welded to chassis frame, 570LXT chassis, 10 mm

7шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , 570LXT chassis 90º, 1/8" NPT x .84" lg

2шт.

14

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16 - 2.0 x 110 mm, class 10.9, Operator compartment pod mounts

1шт.

15

495-81259

WASHER,21/32" x 2" x .238"

flat, operator compartment pod mounts, 21/32 x 2 x 1/4 inch

1шт.

16

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, upper, firewall, operator compartment pod mounts

2шт.

17

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

1шт.

18

829-1416

NUT,M16, Cl 10

hex, operator compartment pod mounts, 16 mm - 2.0, class 10

1шт.

19

141249A1

SUPPORT

BRACKET mounting, frame, right hand and left hand, operator compartment pod mounts

2шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd, Operator compartment pod mounts Hex, M12 x 30, 10.9

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Operator Compartment Pod Mounts M13.5 x 24.5 x 3, HT

4шт.

22

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

- hex, 16 - 2.0 x 110 mm, class 10.9, Operator compartment pod mounts

2шт.

23

495-81259

WASHER,21/32" x 2" x .238"

flat, operator compartment pod mounts, 21/32 x 2 x 1/4 inch

2шт.

24

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

4шт.

25

D138565

SHOCK ABSORBER

INSULATOR mounting, frame, lower, front, operator compartment pod mounts

4шт.

26

829-1416

NUT,M16, Cl 10

hex, operator compartment pod mounts, 16 mm - 2.0, class 10

2шт.

27

180578A1

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

BOLT special, operator compartment pod mounts

2шт.

28

A141451

SHOCK ABSORBER

MOUNT rubber, frame, rear, operator compartment pod mounts, if used, may be replaced by Ref. 31 and 32 on some models

2шт.

29

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

flat, special, operator compartment pod mounts

2шт.

30

829-1416

NUT,M16, Cl 10

hex, operator compartment pod mounts, 16 mm - 2.0, class 10

2шт.

31

344777A1

MOUNTING PARTS

MOUNT upper, operator compartment pod mounts, if used

2шт.

32

R49921

RUBBER MOUNTING

INSULATOR rubber, lower, operator compartment pod mounts, if used

2шт.
