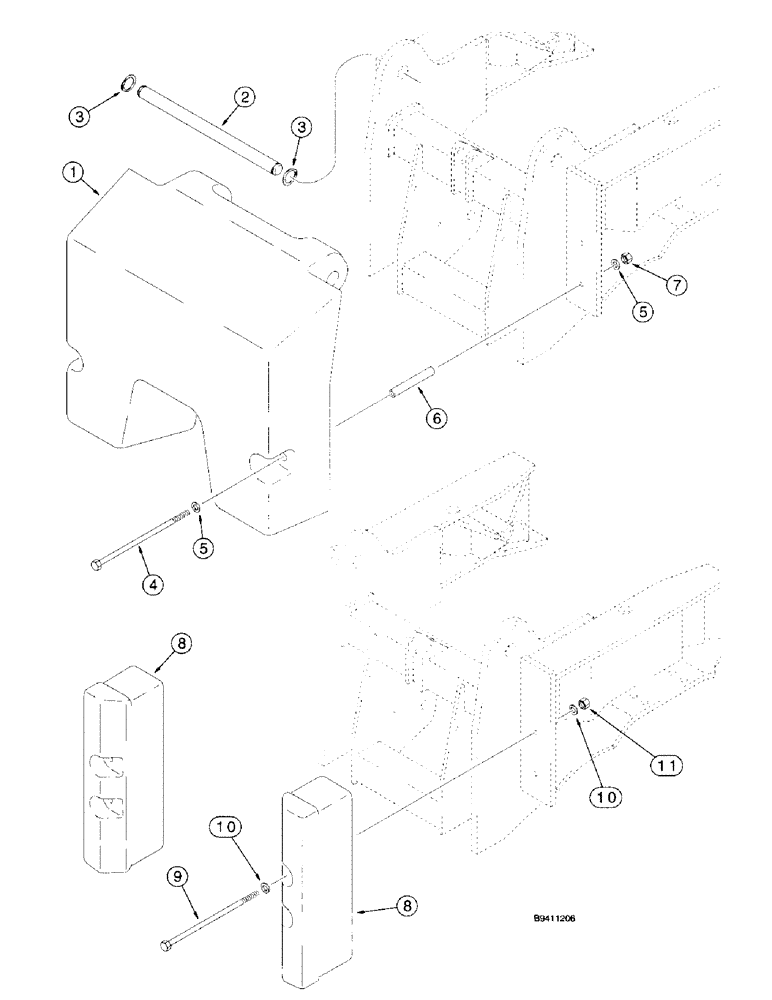

Запчасти Case 580L (9-060) - REAR COUNTERWEIGHTS, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

1

131490A1

COUNTERWEIGHT

rear, without 3 point hitch, 3000 pounds, 1361 kg

1шт.

2

130228A1

PIN,44.45mm OD x 743mm L

SHAFT counterweight to frame, without 3 point hitch

1шт.

3

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Without 3 point hitch #175, Ext

2шт.

4

180537A1

BOLT,Hex, M16 x 2 x 415mm, Cl 8.8

BOLT hex, special, counterweight mounting, without 3 point hitch

2шт.

5

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, hardened, without 3 point hitch,17.5 x 34 x 5 mm

4шт.

6

180510A1

SPACER

counterweight mounting, without 3 point hitch

2шт.

7

829-1416

NUT,M16, Cl 10

hex, without 3 point hitch, 16 mm - 2.0, class 10

2шт.

8

134295A1

BALANCER

COUNTERWEIGHT rear, with 3 point hitch, 300 pounds, 136 kg

2шт.

9

814-16250

BOLT,Hex, M16 x 2 x 250mm, Cl 8.8

hex, with 3 point hitch, 16 - 2.0 x 250 mm

4шт.

10

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

flat, hardened, with 3 point hitch, 17.5 x 34 x 5 mm

8шт.

11

829-1416

NUT,M16, Cl 10

hex, with 3 point hitch, 16 mm - 2.0, class 10

4шт.
