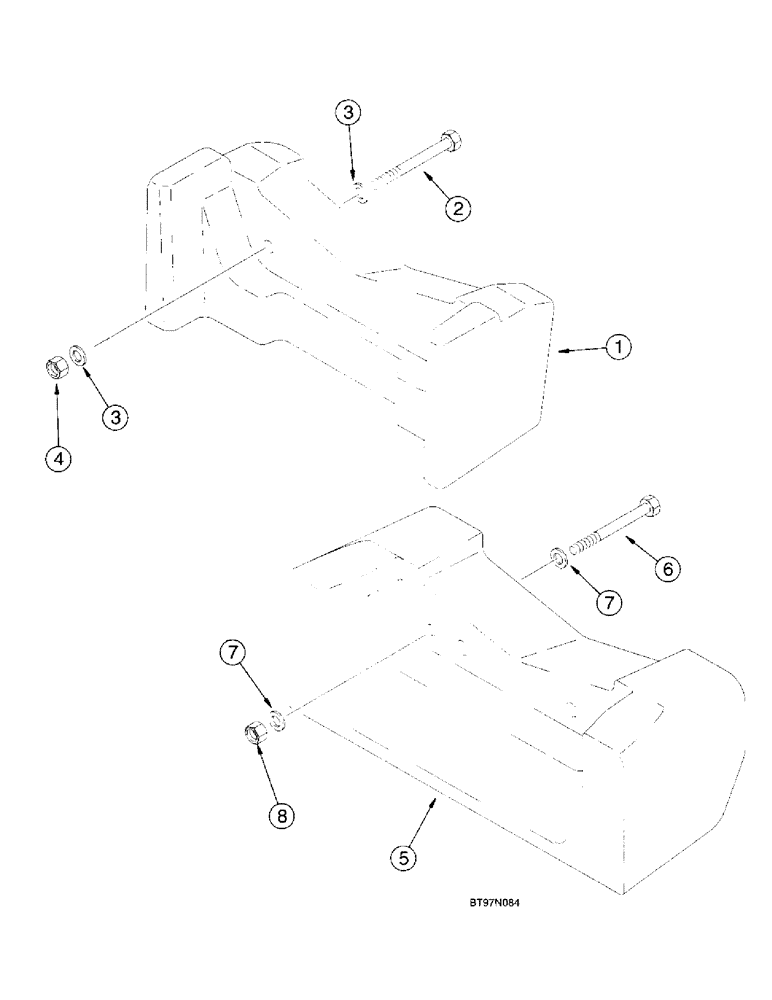

Запчасти Case 580L (9-059) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

360867A1

COUNTERWEIGHT,Front, 440 Lb

COUNTERWEIGHT front, 200 kg, 441 lbs, Replaces: 194520A1, if used

1шт.

2

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

- hex, 20 - 2.5 x 170 mm, class 10.9

2шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

4шт.

4

829-1420

NUT,M20, Cl 10

2шт.

5

230513A1

BALANCER

COUNTERWEIGHT front, 408 kg, 900 lbs, if used

1шт.

6

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

- hex, 20 -2.5 x 170 mm, class 10.9

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

4шт.

8

829-1420

NUT,M20, Cl 10

2шт.
