(9-058) - RIGID DRAWBAR USED WITH THREE-POINT HITCH, 570LXT MODELS

Запчасти Case 580L (9-058) - RIGID DRAWBAR USED WITH THREE-POINT HITCH, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS

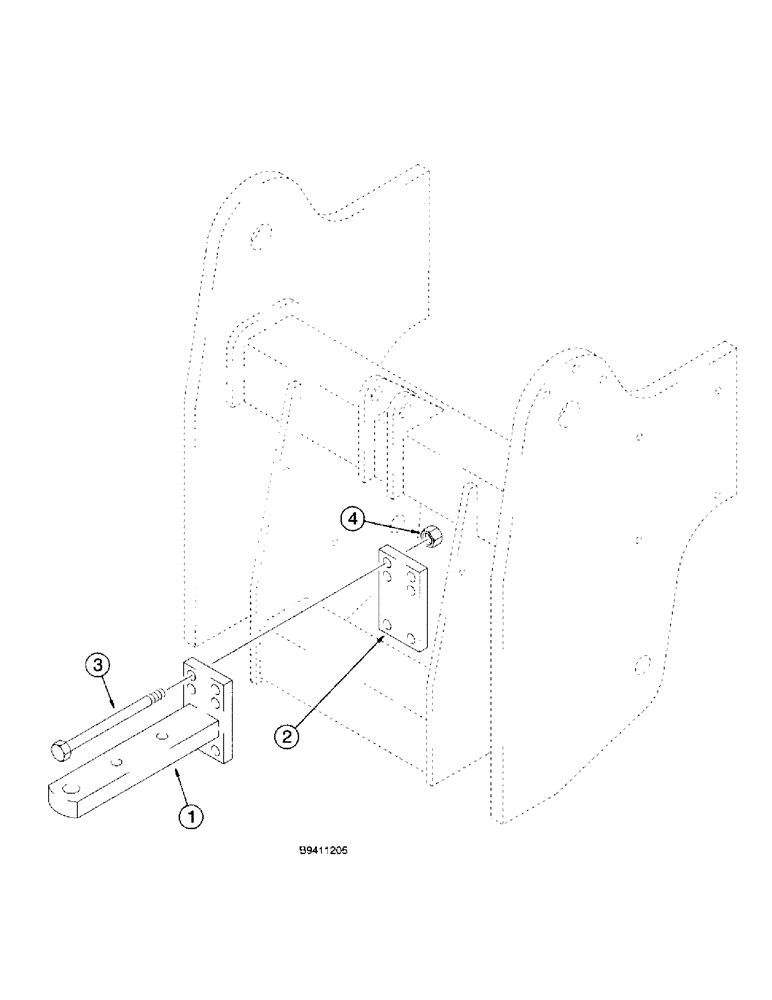

Схема запчастей Case 580L - (9-058) - RIGID DRAWBAR USED WITH THREE-POINT HITCH, 570LXT MODELS (09) - CHASSIS/ATTACHMENTS
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D136894

DRAWBAR

rigid, tractor

1шт.

2

D136893

LARGE PLATE

PLATE mounting

1шт.

3

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

4шт.

4

425-1010

NUT,5/8"-11, G5

4шт.
